Having conducted successful site trials, representatives from Carillion and Reussir are full of praise for AMR-X, the innovative masonry reinforcement from Ancon.

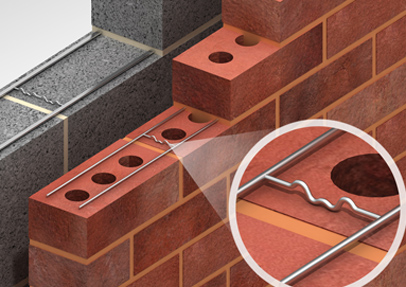

Unlike standard ladder-type reinforcement, AMR-X features shaped cross wires which elevate the outer longitudinal wires to ensure they are located in the desired location at the centre of a bed joint.
Site trials by two leading contractors, Carillion and Reussir, have proven that the innovative AMR-X is a simple, cost-effective way to ensure reinforcement is fully surrounded by mortar. Although good site practice is to bed masonry reinforcement in a layer of fresh mortar, Paul Walmsley, a Masonry Advisor at Carillion, was delighted to find whether laid post or pre mortar, AMR-X ensures adequate mortar coverage is attained which provides a significant aid to ensuring structural compliance on sites.
Mindful of the time taken to supervise installation of bed joint reinforcement, Alan Phillips, Carillions Technical Services Manager says using Ancon AMRX will ensure bed joint reinforcement is accurately installed without compromising on build time.
Alex Cross, a Project Manager for Reussir Ltd (Brickwork Contractors) with over thirty years experience, says
we built walls using the product in two ways. In the first trial, we applied best practice and pushed AMR-X into a bed of mortar. On the second occasion we placed AMR-X on dry masonry with mortar applied above, as this is the most common site shortcut which concerns us. When we took the masonry back down to see the results we found the outer tram wires were located near the centre of a bed joint in both cases. I am very impressed with the AMR-X brick reinforcement. Ancon has made what appears to be a simple change to the product structure that really delivers results on site. I have recommended that we use this product as it can eliminate the risk of inadequate mortar bond around bed joint reinforcement.
Steel reinforcement is located in bed joints to improve the structural performance of a masonry wall. It is important that the outer steel wires are surrounded by mortar to ensure the designed performance is achieved on site - this guidance is confirmed in PD6697: 2010: Recommendations for the design of masonry structures to Eurocode 6.
The unique design of AMR-X can improve build quality, reduce the requirement for site supervision and accelerate the speed of construction. It is manufactured from stainless steel wire which is suitable for internal and external walls, and is available in widths to suit brickwork and blockwork. The cross wires have been designed so the product can be installed either way up.
Ancon launches a number of new and improved products every year. In April 2012, Ancon was honoured with the Queens Award for Enterprise in Innovation; an award regarded by many as the ultimate business accolade as it acknowledges the highest standards in innovation, commercial success and corporate responsibility.
