Fire Rated Glass Doors for Hounslow Heath Infant School

Fire Rated Glass Doors for Hounslow Heath Infant School

Ion Glass has installed new glass fire-rated doors at Hounslow Heath Infant and Nursery School to provide full visibility and easy movement for children and teachers around the school, whilst at the same time meeting all current regulations to fully protect the children in the event of a fire.

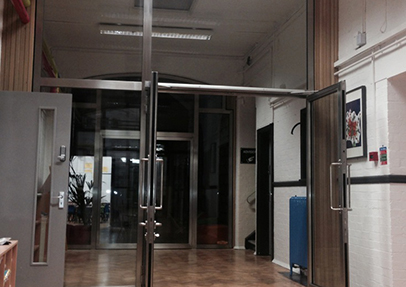

The new doors are linked to the fire alarm system for fully automated closure in the event of a fire. Two fire rated glass screens were set into brushed stainless steel frames across the full height and width of the corridor, each with an arched over panel fitted into the arch of the ceiling, glass side panels and a pair of fire-rated glass pivot doors. A third glass screen (also fitted with fire-rated glass pivot doors) features a rectangular over panel to accommodate the high ceiling of the reception area and framed glass side panels to provide full visibility, optimum light flow and maximum security.

The fire rated glass doors are held open for easy flow of pupils and teachers but are linked to the fire alarm system which triggers the automatic closing mechanism in the event of a fire. Handles on the glass doors are set low so that they are accessible to the children. All glass panels and the glass doors were supplied in 60/60 fire-rated glass which provides 60 minutes integrity and insulation in the event of a fire – sufficient time to protect the children and evacuate the school.
