Hawthorns School

Hawthorns School

Contractor: Speller Metcalfe Malven Ltd
Architect: Squires and Brown

The Hawthorns is a thriving co-educational prep school with 530 pupils aged between 2 and 13. Located within 30 acres of wonderful landscaped grounds in the heart of Surrey, the main school includes a Grade II listed, 16th Century Jacobean Manor House.

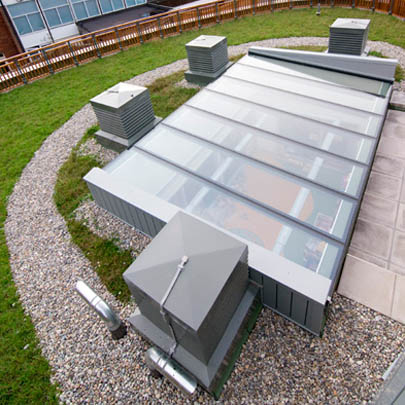

2 No. Multipart Flushglaze Rooflights with aluminium back to back angles.
The first rooflight - 1 No. 6822mm x 3000mm in 5 sections (wall abutted on 2 sides) had to be designed from scratch due to the split of the sections being uneven.
The second rooflight - 1 No. 5995mm x 4000mm in 7 sections, also had to be designed due to non standard details being required.

Specifications:
Glass -
6mm Toughened Outer
16mm Air Filled Cavity
6mm Low E Toughened Inner

Polyester Powder Coated to RAL7015 grey inner & outer

Ritec easy clean coating was applied to both rooflights
