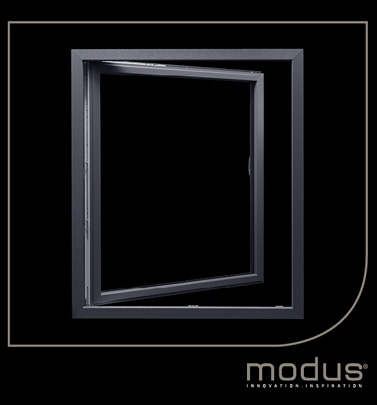

Modus 75mm Tilt &Turn Windows

Eurocell

Modus is the first fully integrated PVC-U window and door system in the UK, capable of producing eight different product types from a single system. It’s an innovative 75mm front to back dimension six-chamber design, the first to utilise dual material extrusion technology (DMET) in the UK. DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised. That’s why Eurocell can offer an unrivalled 12-year profiles guarantee for Modus.

Modus tilt and turn windows offer a new stepped sash design, which goes one step further than Modus casement windows by creating a seven-chamber profile for maximum thermal performance. No steel or aluminium reinforcements are required and an optional third brush pile seal completes the high specification.

High quality impact resistant white PVC-U extrusion utilising 50% post-consumer recycled PVC-U, producing a rigid six-chamber profile to BS EN 12608 and manufactured in accordance with BS EN ISO 9001 and BS EN ISO 14001.

Reinforcement:
Reinforcements are not required up to a 1600Pa weather classification. Between 1600Pa and 2000Pa a steel reinforcement is required in mullions.

Hardware:
Maco hardware accredited by ACPO Secured by Design, the official Police security standards initiative. Other hardware specifications can be provided.
Vents and casements are hinged using stainless steel friction hinges,
Tilt and turn window locking handles are available in a variety of finishes to complement exterior colours.
All hardware meets the requirements of BS 7412.
Windows fitted with high security hardware meet the requirements of PAS24: 2012
Windows are fitted with mushroom headed espagnolettes or shootbolts for added security. Both options are available with a night vent facility.

Ventilation:
Controllable or permanent ventilators fitted within the head profile or dedicated overhead ventilators are available as an optional extra. Night vents are also available.

Performance:
U-value performance of 0.7 for triple glazed windows, 1.1 U-value for double glazed windows.
Energy efficient windows, achieving BFRC Window Energy Rating (WER) of grades A+, A, B and C.
12-year manufacturer profiles guarantee

Options:

  • Georgian bars
  • Leaded glass
  • Patterned glass
  • Triple glazed units

Product Specification:
Manufacturer:
Name: Eurocell
Website: www.eurocell.co.uk
Telephone: 0800 988 3047
Product Reference: Modus 75mm Tilt & Turn Windows

Glazing:
28mm double-glazed insulating unit, glazed internally
44mm triple-glazed insulating unit, glazed internally

Ironmongery:
Controllable ventilators
Espagnolettes
Friction hinges
Tilt and turn locking handle
Night vent
Permanent ventilators
Shootbolts

Accessories:
Cavalok head vent
100mm-300mm Cavalok cavity closer


Properties

SizesWidth: Min 550mm – Max 1500mm
Height: Min 550mm – Max 1500mm
ColoursBlack Ash woodgrain/White
Anthracite Grey woodgrain/White
Slate Grey woodgrain/White
Moondust Grey woodgrain/White
Irish Oak woodgrain/White
Golden Oak woodgrain/White
Rosewood woodgrain/White
Quartz Platinum metallic woodgrain/White
Asphalt metallic woodgrain/White
Sapphire Silver metallic woodgrain/White
Anteak woodgrain/White
Cream
White
