New system to support vertical elements

New system to support vertical elements

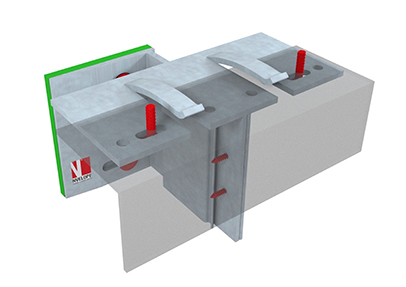

NVELOPE, the market leader in rainscreen cladding support systems, recently introduced NH2, a system that can be used to support vertical elements. Satisfying safety standards, the NH2 cladding support system plays a major role in the aesthetic envelope of a building and provides contractors with a quick and easy to install solution.

NVELOPE’s NH2 system is perfectly suited to new and refurb properties, where the external design is of high importance. The system is compatible with a number of façade designs, and allows these to be installed vertically.

The system can be secured on to steel frame, block work or timber substrate. Horizontal ‘T’ and ‘L’ rails can easily be secured onto the NH2 system, using NVELOPE support brackets and NH2 adaptors. The ‘T’ and ‘L’ rails can be adjusted at a level and secured using stainless steel screws in fixed and sliding points to allow expansion and contraction in the T or L rails.

As the NH2 system involves fewer fixings to the substrate and is a stronger system than the NH1 giving greater spacing between brackets, less thermal bridging is created. This also provides designers with an environmentally responsible product with low U-value. NH2 tolerances for adjustment are 80 – 355 mm.

The NH2 system is compatible with various substrates, and is suitable for face fixed and sika fixed applications.

Manufactured in the UK and developed using the highest specification alloys, NVELOPE products and systems are ideal for supporting a wide variety of façade materials.
