Queens Gardens, Hull

Queens Gardens, Hull

Client: Queens Gardens
Type of works: Timber Decking Tiles, Adjustable Support Pads

This particular project that Wallbarn provided products for illustrates well how a small confined uneven roof space can be easily transformed into an area of beauty without interfering with the existing drainage facilities.

The client wanted to transform an otherwise unused piece of roof terrace into an area to be used by residents. The area was uneven in parts and housed various air conditioning units which had to remain in place.

Access was also a major problem.

Using Wallbarn timber decking tiles and adjustable supports, the client was able to create an attractive space for recreational purposes.

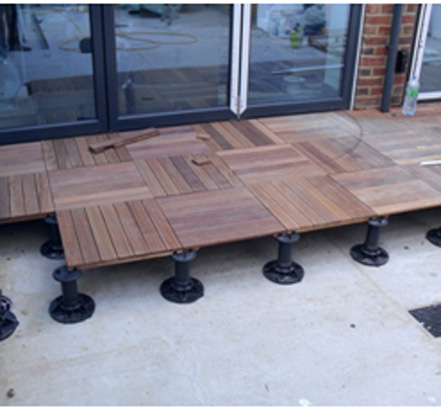

The use of the adjustable supports enabled the timber decking tiles to be laid evenly and flush up to the base of the patio doors.

The existing drainage outlet was not interfered with as the adjustable supports created clearance above the drain head.

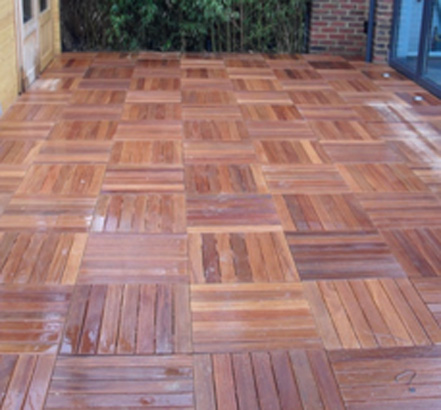

The alternate rotational use of the tiles created an effective and attractive finish.

The existing air conditioning units were raised from the waterproofing membrane to rest on top of the timber decking tiles.

Having a high weight tolerance the adjustable supports were ideal for this.

By raising the units above the waterproofing membrane, this served to protect the membrane from damage byreducing any direct vibration from the unit to the membrane during operational use.

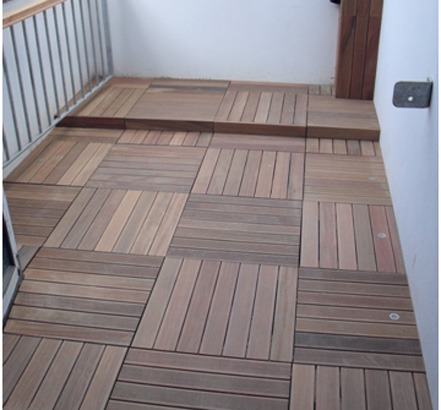

Different heights of decking were created by making use of the range of adjustable heights of the support pads.

Using 500mm x 500mm timber decking tiles as opposed to plank decking meant that only minimal cuts were required, greatly speeding up the installation and thereby reducing costs.

Small light fittings were cut into the tiles to create a very effective ‘uplight’ feature which improved the finish immensely.

The finished result was a high end attractive solution creating recreational space for the use of residents.

The client was pleasantly surprised at creating such a natural, luxurious finish in such a small, urban space.
