Schöck prevents thermal bridging in major new distillery

Schöck prevents thermal bridging in major new distillery

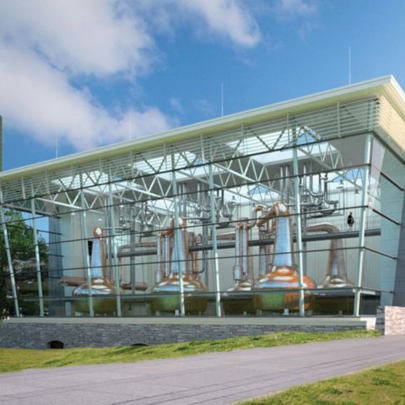

€100 million is being invested in new plant to double the capacity at Irish Distillers Pernod Ricard main distillery in Midleton, County Cork. When complete, Midleton will be one of the most modern distilleries in the world, boasting three 75,000 litre pot stills, and three column stills.

The 21.5m high pot still hall building envelope is designed to a very high level of thermal performance and one of the design factors that had to be taken into account was the prevention of thermal bridging. There is of course a regulatory need to reduce local heat loss and CO2 emissions. But in addition, condensation can be a potential problem too, frequently resulting in structural integrity problems, and even mould growth, which brings its own set of health risks to personnel.

To prevent any risk of thermal bridging at these roof overhang connectivity points, the structural elements to the primary steel are isolated from the interior environment using Isokorb structural thermal break units from Schöck.

The Isokorb is one of the most sophisticated solutions on the market, for the prevention of thermal bridging in connective situations; and has been supplied for the project by Contech Accessories, of Tullow, County Carlow, the Schöck sales partner and sole distributor for Ireland.

At Midleton, it is the Schöck type KST module for steel-to-steel applications that has been installed. The KST modules are able to withstand extremely demanding loads and incorporate stainless steel components to ensure corrosion protection and minimise thermal conductivity. The Isokorb modules dramatically reduce energy loss in connective areas by guaranteeing that there is uniformity between cantilever structures and the internal structure at the thermal envelope.

The entire Schöck Isokorb range provides BBA Certification and LABC Registration, and comfortably exceeds the requirements of BRE IP1/06 and Part L of the UK and Irish Building Regulations. These state that the temperature factor used to indicate condensation risk (fRSI), must be greater than, or equal to, 0.50 for commercial buildings, a requirement comfortably exceeded by incorporating the Isokorb into the design.
