Timber hand rails for Southport Venetian & Marina bridge

Timber hand rails for Southport Venetian & Marina bridge

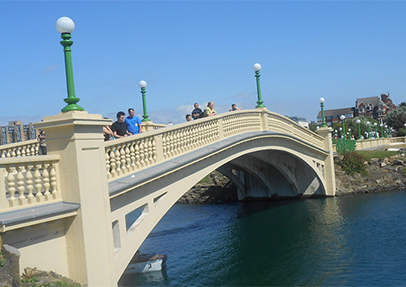

Dresser Mouldings tendered for a contract to supply bespoke spindle & curved hand rail sections, these were to be supplied in the original design to replace the old spindles & curves on Southport marina. The marina bridge was built originally around 1930 & it as stood the test of time. Originally the build was to be offered up in either Cedar or FSC Iroko and although both these timbers were good timbers to use, they also were not without issues.

Having reviewed the complexity relating to moisture remaining in the timber and the location Dresser decided the only suitable timber they could offer would be an engineered modified timber called Accoya, this material originated in New Zealand had been modified in Holland to become one of the most stable engineered material available. Dresser then set out to produce the spindles as the first phase of the project with over 650 spindles required in the original design.

As material cannot be stocked in 150x150 squares without a risk of severe movement Dresser set out to produce these sections by prepping pieces & bonding to make a square ready for turning. The spindle finished size was specified at an overall size of 144x144 bonded in two half's glued using a special modified two part prefer glue for external water front use. Once the material had been prepped, bonded & turned it then received its final coating before installation. One of the more complex part of the project was to produce curved radius handrails, these were both to be supplied horizontally & vertically & this required a great deal of planned detail & accurate geometry to ensure the correct rise over the walk way.
