Waterproofing a new-build basement with Newton System 500

Waterproofing a new-build basement with Newton System 500

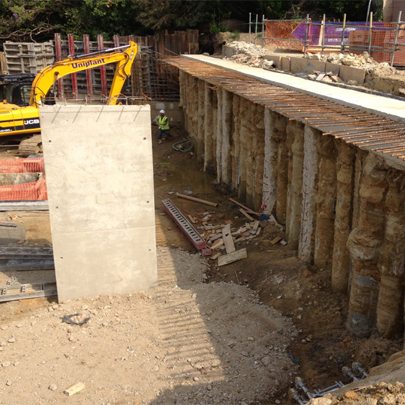

This large new-build property in Surrey had a very large basement area which needed to be waterproofed to meet BS8102 requirements, the British Standard for the Protection of Structures Against Water From the Ground.

Because it is not possible to determine the amount of potential water pressure surrounding a structure, BS8102 tells the designer to expect a head of water against the structure. In addition, BS8102 requires that all waterproofing is maintainable and repairable.

Newton Specialist Basement Contractor MaclennanUK were commissioned to design and install a Cavity Drain Waterproofing System. Newton System 500 was deemed the best range of products for the project as it provides a maintainable waterproofing solution - and thus meets the requirements of BS8102.

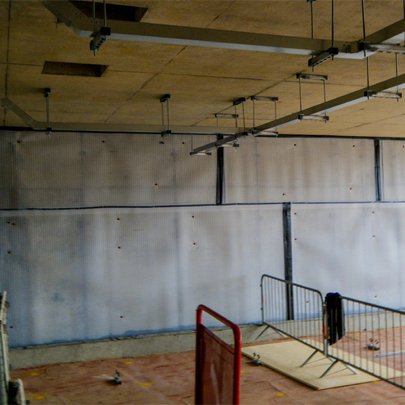

Newton 508 Cavity Drain Membrane was applied to all internal walls, and ingressing water was collected into the Basedrain channels throughout the perimeters of the wall/floor junction and pumped out to safe drainage using the Newton Titan Pro pumping system.

The property is completely protected against water ingress.

“Maclennan worked with Ali Galvin Homes to come up with a risk free waterproofing strategy, to waterproof the very impressive and luxurious property that they were constructing. Newton System 500 is the best system available to waterproofing professionals and was ideal for this project” Ian MacLennan - MaclennanUK
