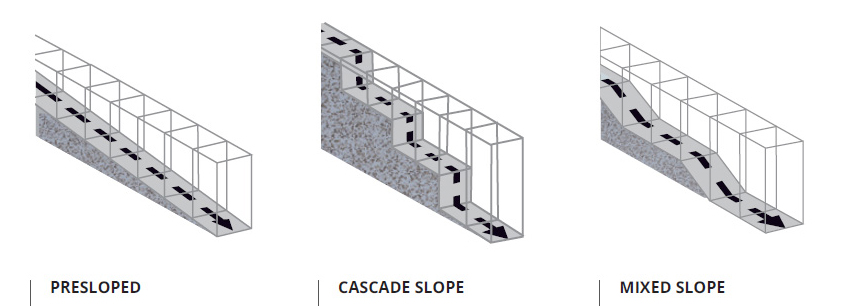

DIFFERENT SLOPE CONFIGURATIONS:
1. PRESLOPED
Channels of variable height with a built-in slope of 0,5% and 2,5%, according to the model.
Very appropriate for areas where the ground has no natural slope.
.
2. CASCADE SLOPE
A combination of straight channels of various heights that are joined using step connectors.
Simple and economic onsite excecution when slopes need to be included.
3. MIXED SLOPE
A combination of the previous systems. Very appropriate to drain long-lenght stretches. It allows for the optimization of hydraulic capacity to the utmost.
PRESLOPED CHANNELS:
Two of ULMA's most popular families of channels have models with a built-in slope, with which they manage to create inclination where it does not exist but where it is needed.

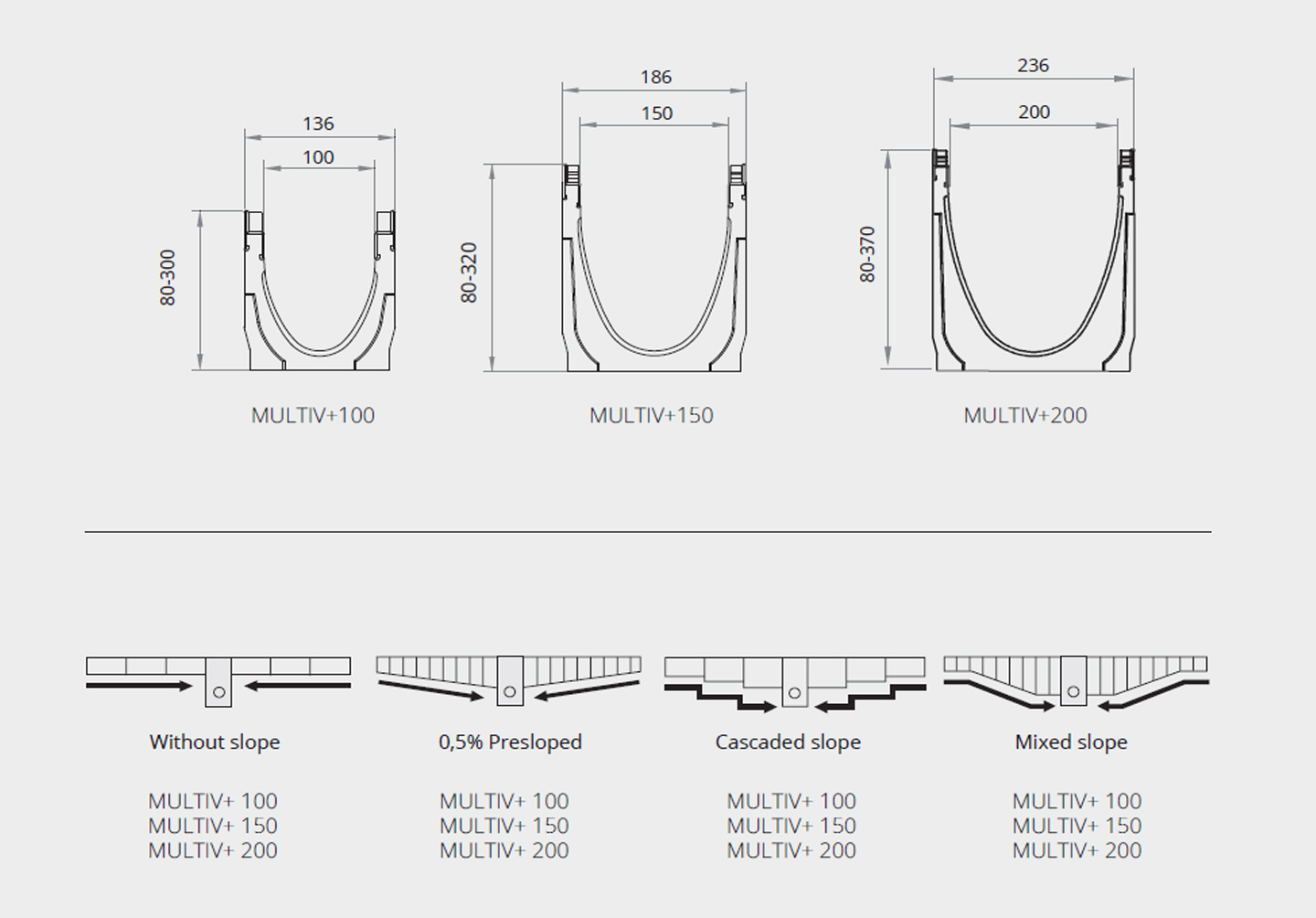

MULTI V+ Range
The Multi V+ range has channels with a built-in slope of 0.5% up to class D400 in its 3 models of width 100, 150 and 200.

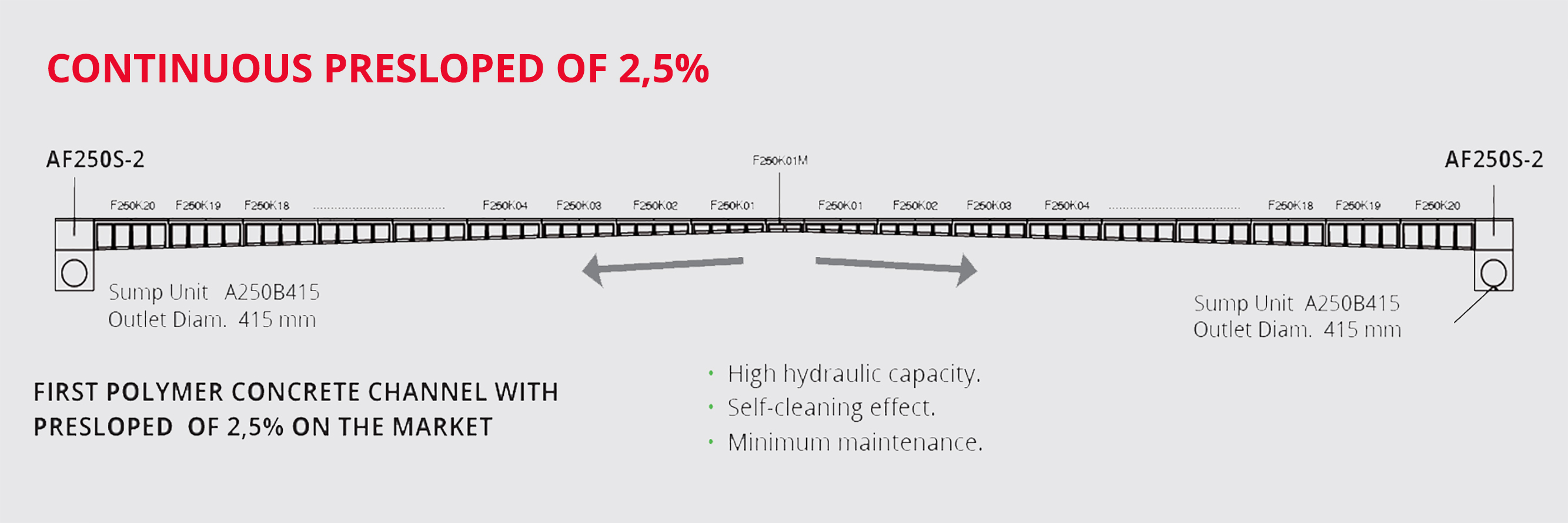

CIVIL F Range
If the project requires a higher load capacity, there is the CIVIL F range - the only drainage channels on the market with a real pre-slope of 2.5%. This range goes up to load class F900.
Thanks to this marked difference in level, the CIVIL F channels provide greater hydraulic capacity, because with the pre-slope, the water runs faster.
And thanks to the speed it reaches, it drains more water, as if larger channels had been installed.
It also saves on cleaning and maintenance because, thanks to the speed of the water, it carries away the accumulated sediments and creates a self-cleaning effect. Watch this video to see this in action.
There are many projects where ULMA have offered this solution:
The Silvertown Tunnel in London, the Pontypridd High School in Wales, the Port of Naples in Italy, Hotel Vela in Barcelona, Krakow Arena in Poland, among others.
However, for more information on ULMA's pre sloped channels, please contact the team below and you will be attended by real people with real solutions.
|
|
