Manufacturer Spotlight: Wallbarn’s ongoing commitment to innovation for Paving & Decking Solutions
|
|
|
|
|
|
|
|
|
|
|
Discover the Flexibility &
Strength of the Mega Balance Adjustable Pedestal Range
Wallbarn would like to unveil the enhanced Mega Balance Adjustable Pedestal Range, setting new standards for paving and decking solutions,
including the brand new Mini Mega Balance covering the heights of 25mm to 75mm in one pedestal.

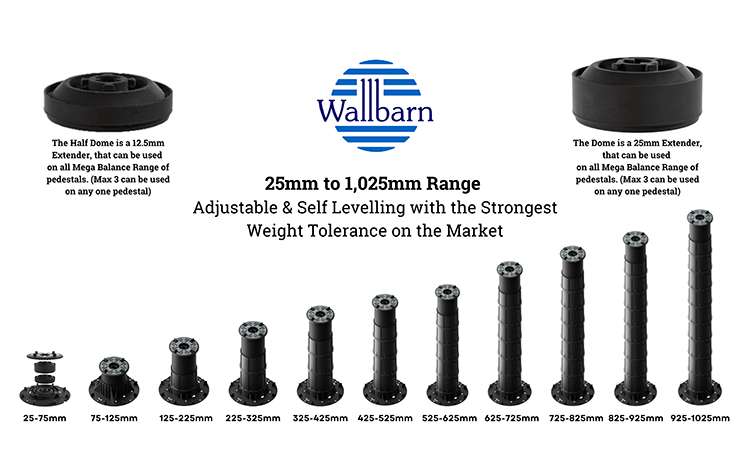

With recent advancements, this innovative system continues to lead the industry in versatility, efficiency, and performance. Covering heights from 25mm to
1,025mm, the Mega Balance Range of pedestals has an extremely high weight tolerance and is ideal for both residential or commercial projects.
|
|
|
|
|
|
|
|
|
|
|
|
|
Latest Developments in the Mega Balance Pedestal
1. Universal Headpiece Design:
The Mega Balance Pedestal has been upgraded with a truly universal headpiece. While it has always accommodated tiles, slabs, pavers, and timber or composite joists, the new design now also seamlessly integrates with Wallbarn's aluminium joists and rails. This enhancement broadens the range of applications, providing more flexibility and compatibility for your projects.
|
|
|
|
|
|
|
|
|
|
|

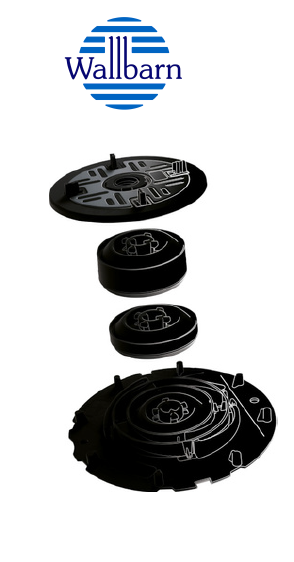

2. Introduction of the Mini-Mega Balance:
The height range of 25mm to 75mm, previously covered by four different pedestals, is now streamlined into a single, versatile product— the Mini-Mega Balance. Comprised of four components, this innovative pedestal simplifies the selection and installation process, reducing inventory complexity and increasing efficiency on-site.
|
|
|
|
|
|
|
|
|
|
|
3. Enhanced Load Capacity:
As part of our commitment to excellence, the Mega Balance Pedestal has been independently tested by the UK Testing Company, STS Group, confirming its ability to handle weights of up to 3 tonnes per pedestal. This certification ensures that our product meets the highest standards of safety and reliability, giving you confidence in its performance under demanding conditions.
|
|
|
|
|
|
|
|
|
|
| |
Key Advantages of the Mega Balance Pedestal
• Versatile Applications: Suitable for paving, decking, and integration with the Wallbarn Rail System using our aluminium rails/joists. This can be used as substructure for decking or paving.
• Slope Correction: Capable of accommodating slopes of up to 5% (2.86° / 1 in 20 Fall), giving a level decking or paving surface while still allowing effective drainage below.
• High-Quality Materials: Constructed from high-grade virgin polypropylene for durability and performance.
• Load Capacity: Supports up to 3 tonnes per pedestal, ensuring reliability for commercial projects.
Innovative Features for Enhanced Performance
• Self-Levelling and Fixed-Height Options: The pedestal combines self-levelling and fixed-height functionality in the same unit, with the optional Grey & Black Nut.
• Top Key System: Allows in-situ adjustments for paving without lifting tiles, making it easy to use and increasing installation time.
• 4mm Drainage Gap: Lugs on the headpiece create a 4mm gap between tiles, creating efficient drainage and preventing water pooling on the surface.
• Aluminium Rail Compatibility: Easily clicks into the universal head for seamless integration with any of Wallbarn’s aluminium rails/joists.
|
|
|
|
|
|
|
|
|
|
|
For Paving
• Self-Levelling Headpiece: Allows for up to a 5% slope correction in all directions. Incorporates four positioning lugs in a crucifix formation to, creating a uniform paving line and consistent gap between the tiles/slabs.
• Anti-Shock Pad: Features a rubber shim on the headpiece with ridges to improve slab grip and insulate against vibration and noise transmission.
|
|
|
|
|
|
|
|
|
|
|
For Decking
• Self-Levelling Headpiece: Designed to house timber or composite joists, eliminating the need for cutting furrings and speeding up installation.
• Anti-Shock Shim: Enhances grip on the joist, facilitating easier installation and reducing the potential for movement.
|
|
|
|
|
|
|
|
|
|
|
For Rail System
• Self-Levelling Headpiece: The universal headpiece allows for any of Wallbarn’s aluminium joists/rails to be simply clicked onto the headpiece without the need for mechanical fixing. The aluminium rails can be used for decking or paving systems. Paving: Just as the aluminium rail clicks onto the head of the pedestal, so to does the rail headpiece, which can slide along the rail. Ideal for difficult paving jobs where stability is key.
• Paving: Just as the aluminium rail clicks onto the head of the pedestal, so too does the rail headpiece, which can slide along the rail. Ideal for difficult paving jobs where stability is key.
• Decking: Starting with an aluminium joist with a height of 15mm and the lowest height of the Mega Balance at 25mm, you can now have a complete substructure for your decking starting at 40mm. So ideal for refurb projects where the finished floor level is extremely low.
|
|
|
|
|
|
|
|
|
|
Easy Adjustments with The Key, Grey Nut, and Black Nut
The Key:
Allows minor levelling adjustments directly through the headpiece, addressing issues like rocking or dipping slabs efficiently.
|
|
|
|
The Grey Nut:
Converts the pedestal to a fixed-head setting by inserting and aligning it in the headpiece.
|
|
|
|
|
|
The Black Nut:
Allows height adjustments in situ by hand which is particularly useful when working with lower-height pedestals or when the aluminium rail is already connected.
|
|
|
|
|
|
|
|
| |
Compliant with Industry Standards
The Mega Balance Pedestal is fully compliant with UK Building Regulations and relevant British Standards, ensuring that your projects meet all necessary safety and performance criteria. Its design supports overall structural integrity, adhering to guidelines for load and movement.
Transforming the Future of Construction
In today's rapidly evolving construction landscape, the need for innovative solutions that prioritise safety, sustainability, and efficiency has never been greater. The Mega Balance Pedestal is at the forefront of this transformation, providing architects, designers, and contractors with a cutting-edge tool to help build the future.
Why Choose Wallbarn and the Mega Balance Pedestal?
• Simplified Inventory: A single product solution reduces complexity and enhances project management. A greater height range gives more flexibility and helps avoid mistakes in measurements.
• Customisable Solutions: Tailor the pedestal to meet the specific needs of your project with ease.
• Reliable Partner: Wallbarn is dedicated to advancing construction technology, offering products that deliver real value and superior performance. Next day delivery.
• Technical Team: The Wallbarn Team are there to help accurately estimate/quote for your project and can assist with any technical assistance required. When you work with Wallbarn on your project, you will have a dedicated Team member that will be with you from planning, to estimating, quoting and scheduled deliveries to match your work schedule.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
