LiftMaster Quadro: Vacuum Lifting Device for maximum safety

Bohle

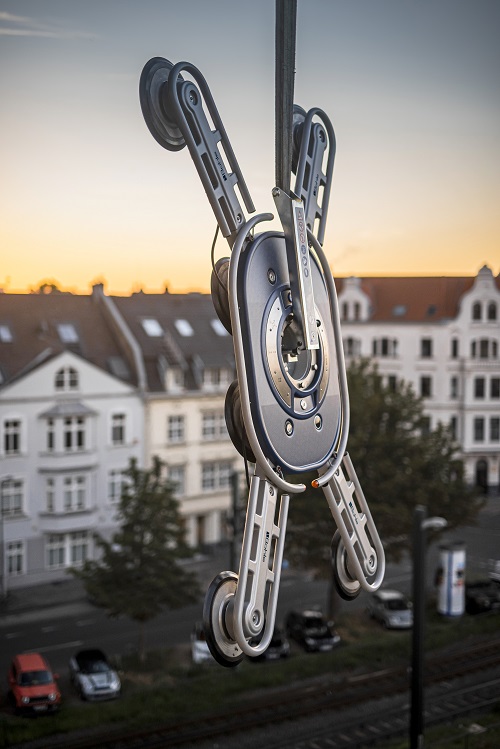

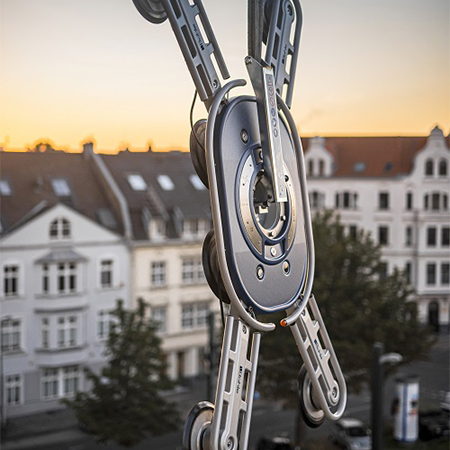

The new vacuum lifting device from Bohle Ltd, LiftMaster Quadro sets new standards in vacuum lifting technology. Its innovative concept, quick battery exchange and high safety standards make the lifting systems reliable aids for indoor and outdoor environments.

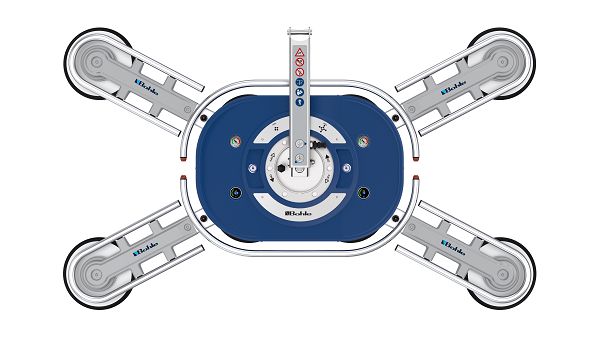

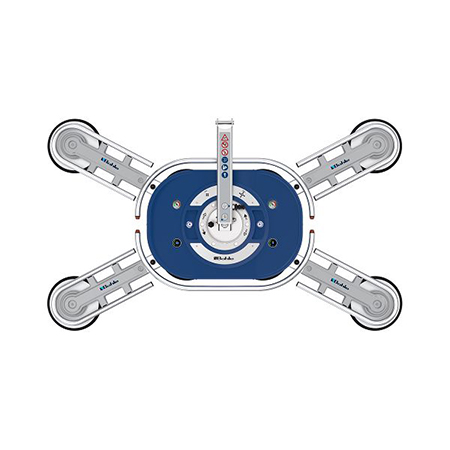

Thanks to its modular construction, LiftMaster Quadro can be used in the most diverse installation settings with the aid of up to four extension arms and detachable suction pads. The whole lifting system can be rotated by 360° (with 12 locking positions) and can also be tilted by 90°. Due to its powerful battery that can easily be exchanged without the need for tools and the portable charger for on-site use, LiftMaster Quadro can be used without interruption.

LiftMaster Quadro can handle loads of up to 800 kg through the use of the extension arms or the standard unit can comfortably cope with loads up to 400 kg. Thanks to a continuous handrail surrounding the entire lifting equipment and a patented, centrally located control panel, every move ensures safe and easy use, regardless of from which side the system is operated. All lines and cables are protected inside the housing in such a way that risk of damage is virtually excluded. Visual and acoustic signals alert the operator in the event of low batter and vacuum level. The reliable dual circuit vacuum system guarantees a twofold safety factor as per EN13155. Both LiftMaster Quadro 400 Pro and LiftMaster Quadro 800 Pro have been independently approved by TÜV Nord and are subject to regular product and production audits.

Benefits At A Glance:
• Dual circuit vacuum system as per EN 13155
• All lines and cables protected inside the housing
• Sturdy handrail supports the entire system
• Visual and acoustic warning signals
• Four optional extension arms
• Exchangeable battery
• Detachable suction pads
• Can be rotated by 360° and tilted by 90°
• Transport rack with castors available as an extra accessory
