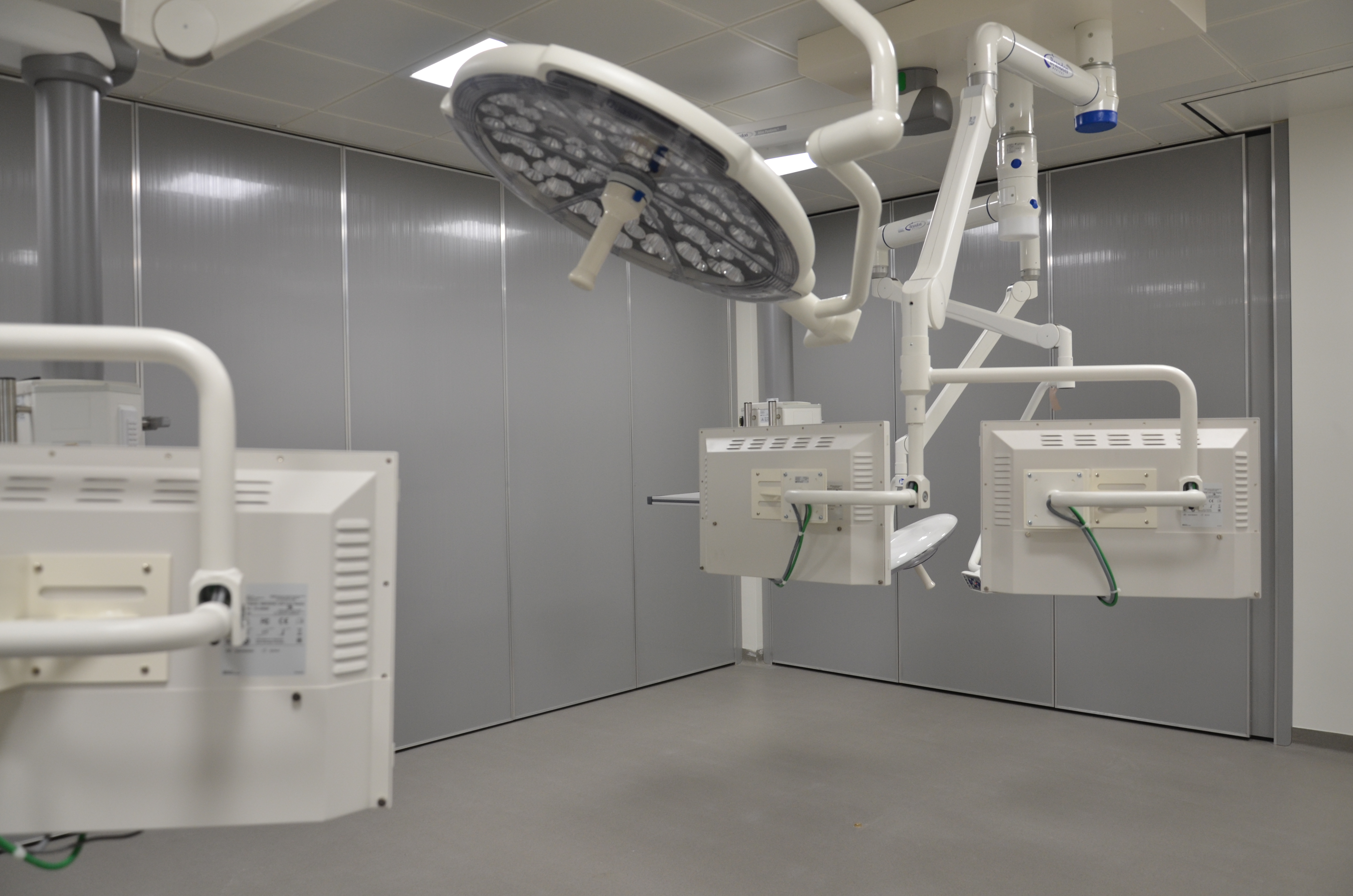

Acoustic movable walls from London Wall Design were chosen by a multinational medical equipment manufacturing and pharmaceutical company.

The requirements on this project were clear and simple with very specific needs: a movable acoustic wall with radiation protection for a research and testing environment needing to maximise flexibility while still offering the safety and protection required in a radiology environment.

London Wall Design's Type 100 semi-electrically operated movable wall was developed and tailor-made for this requirement; with X-Ray protection and specialised seals to ensure the ground-breaking radiation protection and acoustic levels would be achieved.

Each wall weighed in the region of 6 tons and the top hung system was fitted with the Type “K“ track which allows for remote and varied stacking locations. The walls varied in width and height but were all finished in Rigato Formica laminate with aluminium protective edge trims. The vison panels in the pass doors were fitted with Med-X type single glazed glass between 2 layers of 4 mm thick toughened glass.
