With Armafix Ecolight Armacell presents a new insulation clamp for standard applications to prevent thermal bridging in the sensitive area of the pipe bracket.
Armafix Ecolight thermally isolates the pipe from its fixing and thus protects equipment against condensation and energy losses. The lightweight pipe support with innovative PET load-bearing segments can be installed simply, quickly and neatly.
Pipe brackets represent a potential weak point in insulation work. If the pipe is not thermally isolated from the pipe bracket, thermal bridges occur and condensation can form. This leads to increased energy losses and a higher risk of corrosion and expensive secondary damage. Armafix Ecolight thermally isolates the pipe and bracket from each other.

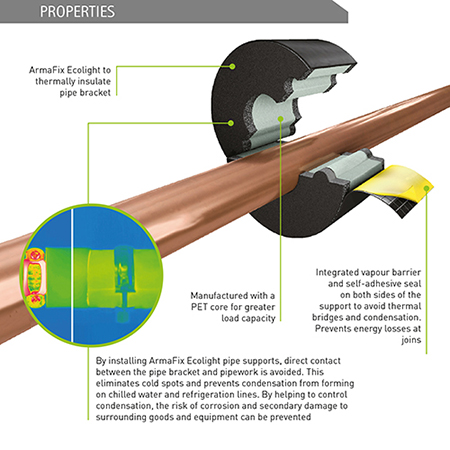

Together with the adjoining Armaflex material it forms an insulation system with long-term reliability. The pipe support consists of flexible elastomeric foam and load-bearing PET elements. The closed-cell elastomeric insulation material with a high resistance to water-vapour transmission and low thermal conductivity provides reliable thermal protection and condensation control. The load-bearing elements ensure that the flexible insulation material is not compressed by the weight of the pipe thus compromising the insulation capacity. When unsuitable products are used, this is often the cause of condensation processes.
The environment-friendly load-bearing segments are made of recycled PET bottles which are industrially foamed. Polyethylene terephthalate (PET) is lightweight, has high mechanical strength in combination with residual flexibility and a maximum service life. Furthermore, PET has very good insulation properties: the material has a closed-cell structure and low thermal conductivity (λ23°C ≤ 0.033 W/mK). With a density of 100 kg/m³ PET weights less than PUR (140 - 145 kg/m³). Yet at the same time PET displays higher compressive strength than PUR and is resistant to aging.
The PET material is made 100 % out of the recyclate of PET bottles, 100 % of production scrap flows back into the manufacturing of new PET blocks and the PET elements can be completely recycled at the end of their service life. PET has an excellent environmental performance: the material requires over 60 % less energy for its production than PUR and releases over 80 % less CO2. PET made of recyclate even goes one better: the manufacturing requires 40 % less energy and causes 30 % less CO2 emissions than conventional PET foams.

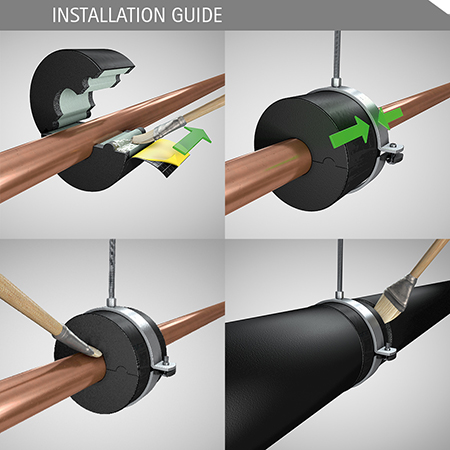

Armafix Ecolight can be installed quickly, eas¬ily and neatly. Unlike standard clamps which have to be insulated with a fitting cover made of Armaflex tube or sheet material, the one-piece pipe support can simply be installed and inserted into the metal clamp when the pipes are laid. During the subsequent insulation work, the butt ends of the Armafix Ecolight pipe support just need to be glued to the elastomeric tube material.
The pipe support is of the high quality expected from Armacell and is available in five insulation thicknesses from 13 to 40 mm for pipe diameters from 6 to 114 mm. The range also includes matching clamps.
