Armacell‘s Armaflex Duct product was specified for the 3M‘s flagship site in Newton Aycliffe for the 4,000 sqm extension of the facility.
The low thermal conductivity value of Armaflex flexible nitrile rubber (0.036) ensures the HVAC system is well insulated against heat losses on the warm air supply, and the closed cell structure of the material provides an integral vapour barrier for protection against condensation on the cold air supply (water vapour diffusion resistance µ factor of 7,000).
Armaflex Duct is available in black, or with a foil covering to provide an aesthetic finish. The sheets are available in 1 or 1.5m widths to suit a range of duct sizes.

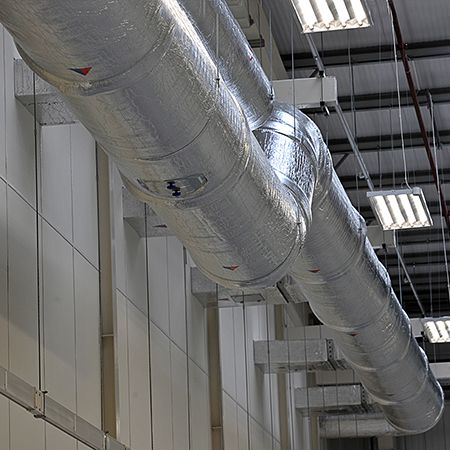

For the extension project 12m long x 19mm thick sheets were used to insulate approximately 1,000 linear metres of spiral and 250 metres of rectangular ductwork, with the 19mm option calculated to provide a good balance between material cost, energy saving and condensation control.
Armaflex is fibre free and the self-adhesive backed version installed for the extension project is easy to install in-situ. The sheets are simply cut to size and positioned in place before the protective backing is removed and pressure applied to adhere in place.
The two ends of the sheet on spiral ducts are sealed together using Armaflex 520 adhesive (non-drip RS850 gel adhesive also suitable) and the adjoining seams between sheets are sealed under compression with the adhesive and covered with silver tape for a neat finish. Application training and a manual for ductwork installations is available on request.
