Bespoke Proteus panel system for Wellcome Trust

Bespoke Proteus panel system for Wellcome Trust

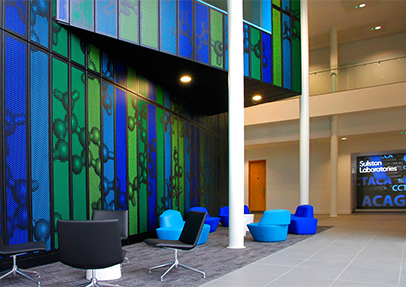

A bespoke Proteus panel system has helped with the acoustics as well as the aesthetics of a refurbished building at the heart of the world-renowned Wellcome Trust Genome Campus. More than 500 Proteus panels featuring almost 500,000 perforations clad an internal freestanding structure in the Shared Services Facility where collaboration areas aligned with campus vistas symbolise the importance of interaction and collaboration among the many institutes the campus is home to.

The project brief was to totally modernise, reorganise the space functions and refresh the finishes for the next 25 years by addressing thermal and acoustic performance and solar control issues in a collaborative break-out hub for scientists and visitors. The bespoke Proteus system on the internal freestanding double-height structure comprises four layers. The face panel of sheet aluminium, perforated to help meet the architect’s acoustic requirements then coated post-fabrication with a special paint which gave a textured sand blasted effect.

Behind this is an acoustic veil in four vibrant shades of blue and green fabric manufactured from 100% worsted wool with a flame retardant coating. The crepe binding in the fabric creates an optical depth and an expression similar to stone but with a soft touch. In addition to the aesthetic and acoustic performance requirements of the panels, the support system was also bespoke – shallower than usual to maximise internal floor space but robust enough to tolerate potential impact from the building’s users and with enough tolerance for to achieve a precise finish.
