BG-FILCOTEN® one & one urban s: Monolithic Surface Water Drainage for Urban Environments

BG-Graspointner UK Ltd

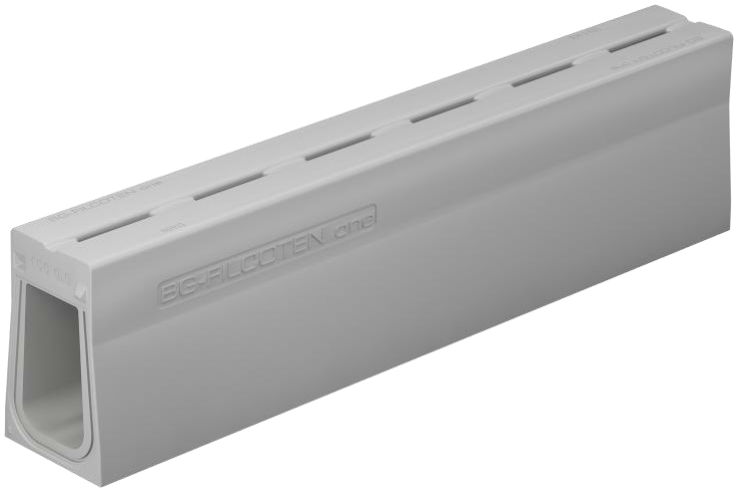

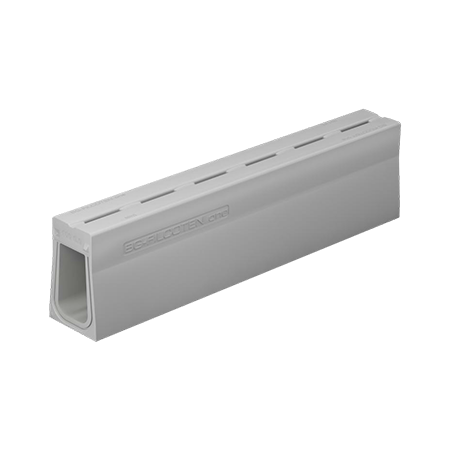

BG-FILCOTEN® one and BG-FILCOTEN® one urban s are high-performance monolithic drainage channel systems designed to deliver efficient surface water management in a wide range of urban and commercial environments. Manufactured from innovative FILCOTEN® High Performance Concrete (HPC), the systems combine exceptional strength with a lightweight design, making them easy to handle and install while providing long-term durability.

The monolithic construction eliminates the need for separate grates, creating a secure and robust drainage solution that is particularly suited to public spaces and heavily trafficked areas. The BG-FILCOTEN® one range has been engineered to provide reliable hydraulic performance while maintaining a clean, modern appearance that integrates seamlessly into contemporary landscaping and public realm projects.

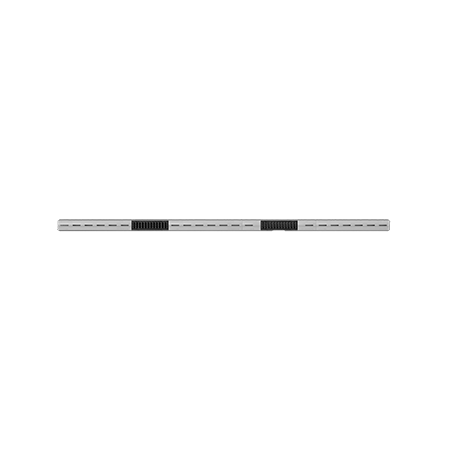

BG-FILCOTEN® one urban s features a discreet slot drainage design, offering an architectural finish that complements paved areas without compromising drainage efficiency. The narrow inlet profile helps preserve the visual appeal of streetscapes, plazas and pedestrian zones while ensuring effective surface water collection.

Available in NW100 and NW150 channel widths and rated up to Load Class D400 in accordance with BS EN 1433, the range is suitable for a variety of applications including town centres, pedestrianised areas, cycleways, car parks, commercial developments and urban road infrastructure.

Key Features

- Monolithic drainage channel design with no loose grates.
- Manufactured from durable FILCOTEN® High Performance Concrete.
- Lightweight construction for easier handling and installation.
- Available in NW100 and NW150 channel widths.
- Load Class D400 to BS EN 1433.
- Optimised inlet openings for pedestrian and cyclist safety.
- Discreet slot drainage option with BG-FILCOTEN® one urban s.
- Suitable for public realm, commercial and infrastructure projects.

Typical Applications

- Public spaces and plazas
- Streetscapes and town centres
- Pedestrian zones
- Cycle routes
- Car parks
- Urban roads
- Commercial and mixed-use developments

Manufacturer: BG-Graspointner UK
Product Range: BG-FILCOTEN® one & one urban s
Load Classification: Up to D400 (BS EN 1433)
Nominal Widths: NW100, NW150
