Concrete strengthening with PBO FRCM
Laterlite
Ruregold has been at the forefront in developing new products, systems and technologies that maximise the safety of works to strengthen concrete and masonry structures based on the use of composite materials of excellence, in particular the FRCM range, the first in the world to win validation certification at the international level.
The different bidirectional and unidirectional weaves of the structural fibres in Ruregold PBO-MESH and C-MESH ensure maximum versatility for use in different load situations: strengthening against combined axial and flexural forces in columns, shear in panels, bending in beams and floors, and directionally variable seismic actions.
PBO-MESH 105
Unidirectional 105 g/m² PBO mesh for FRCM strengthening system with inorganic matrix.
Pbo-Mesh 105 is a FRCM structural strengthening system with a unidirectional PBO mesh and stabilized inorganic matrix for reinforced concrete constructions. The high weight of PBO makes it suitable for heavy-duty applications, especially on concrete and in compact sections such as slab joists. This strengthening system does not use epoxy resins and its performance equals that of traditional FRP with carbon fibers and epoxy binder.
PBO-MESH 70/18
Bi-directional PBO of 70+18 g/m² mesh for FRCM strengthening system with inorganic matrix.
Pbo-Mesh 70/18 is an FRCM structural strengthening system with bidirectional PBO mesh and a stabilized inorganic matrix for reinforced concrete constructions. The structure of this PBO mesh makes it suitable for applications such as the wrapping of concrete columns or the reinforcement of beam-column nodes. This strengthening system does not use epoxy resins and its performance equals that of traditional FRP with carbo fibers and epoxy binder.
PBO-MESH 88
Unidirectional 88 g/m² PBO mesh for FRCM strengthening system with inorganic matrix.
PBO-Mesh 88 is an FRCM structural strengthening with unidirectional PBO mesh and stabilized inorganic matrix for reinforced concrete constructions. The high weight of PBO
makes it suitable for significant applications on concrete such as wrapping or shear and bending reinforcements. This strengthening system does not use epoxy resin sand its performance equals that of traditional FRP with carbon fiber sand epoxy binder.

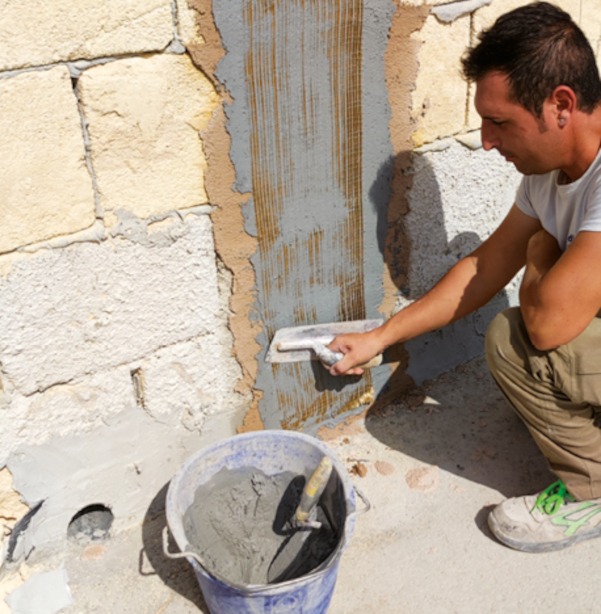

PBO-MESH 44
Unidirectional 44 g/m² for FRCM strengthening system with inorganic matrix.
Pbo-Mesh 44 is a FRCM structural strengthening system with unidirectional PBO mesh and stabilized inorganic matrix for reinforced masonry constructions. The high weight of PBO makes it suitable for significant applications on masonry especially for wrapping or shear and bending reinforcements. This strengthening system does not use epoxy resins and its performance equals that of traditional FRP with carbon fiber sand epoxy binder.
PBO-MESH 22/22
Bi-directional 22+22 g/m² PBO mesh for FRCM strengthening system with inorganic matrix.
Pbo-Mesh 22/22 is an FRCM structural strengthening system with bidirectional PBO mesh and a stabilized inorganic matrix for reinforced masonry constructions. The limited weight of PBO makes it suitable for applications especially on masonry for wrapping vaults or masonry walls. This strengthening system does not use epoxy resins and its performance equals that of traditional FRP with carbon fibers and epoxy binder.
PBO-MESH 10/10
Bi-directional 10+10 g/m² PBO mesh for FRCM strengthening system with inorganic matrix.
Pbo-Mesh 10/10 is an FRCM structural strengthening system with bidirectional PBO mesh and a stabilized inorganic matrix for reinforced masonry structures. The limited weight makes it suitable to prevent overturning and for the reinforcement of non structural components, often with the use of PBO connectors. This strengthening system does not use epoxy resins and its performance equals that of traditional FRP with carbon fibers and epoxy binder.
