FIREFLY® Phoenix

TBA FIREFLY®

View TBA'S product pages here.

FIREFLY® Phoenix is a lightweight flexible fire rated smoke and flame barrier designed to provide compartmentation within a building, offering 120 minutes integrity only, when tested to BS476 Parts 20 & 22. FIREFLY® Phoenix is designed to work as part of a fire protection system and does not provide insulation properties.

USE AREAS
Commonly used in larger roof voids within industrial, warehousing, food processing and data centres to create smoke and flame compartmentation barriers at 20 metre intervals.

CONSTRUCTION

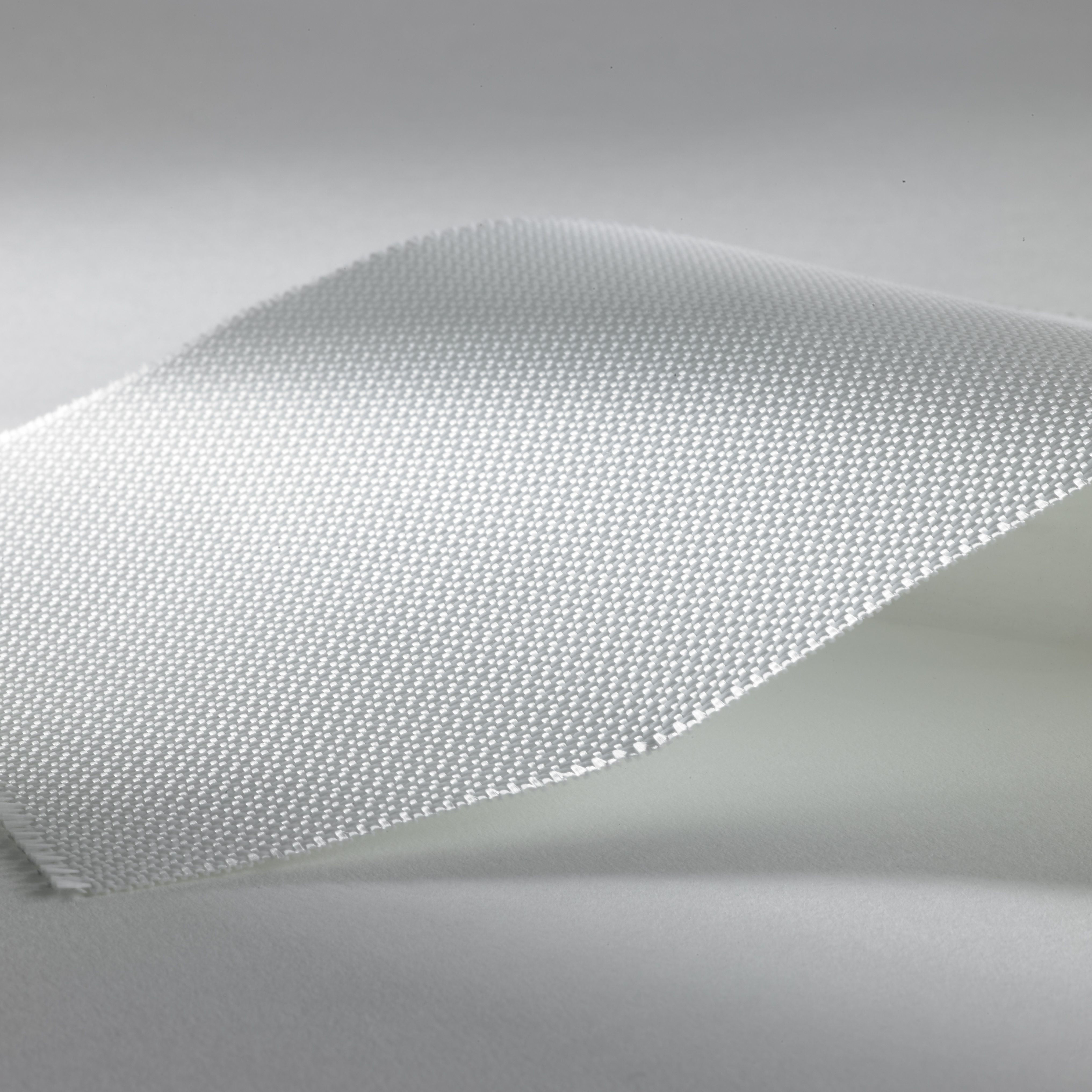

FIREFLY® Phoenix is manufactured using woven glass fibre, specially treated with a proprietary coating to greatly increase fire resistance.

KEY BENEFITS
• FIREFLY® Phoenix provides 120 minutes Integrity as a barrier, restricting the passage of smoke and flame across large roof voids
• Tested to include penetrations and services while maintaining performance in-situ
• Lightweight, flexible, easy to handle and Installer-friendly smoke and flame barrier system
• Tested to BS476 and independently certified by IFCC/Kiwa
• FIREFLY® Phoenix is supported by a full range of FIREFLY® ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system

DESCRIPTION
Lightweight flexible smoke and flame barrier

CERTIFICATION
Third party certified by IFCC/Kiwa. Certificate number: IFCC 1418

APPLICATION
Vertical use only (see Phoenix Horizontal for alternative)

PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Coating: Chemical treatment to optimise fire-resistant properties and help prevent fibre migration
Min Thickness: 0.34mm nominal

SPECIFICATION
Exceeds 120 minutes Integrity only when tested to BS 476 parts 20/22:1987. Not tested for Insulation

ASSESSMENT IFCC
Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements

FLAMMABILITY
BS 5438 /6249 – “A” rating (highest possible pass) Fabric is self-extinguishing when subject to this test

DIMENSIONS AND PACKAGING
Width: 130cm
Roll Length: 10 or 25 linear metres
Roll Area: 13 sqm or 32.5 sqm
Packed: Rolled
Weight: 440g/m2

“We’ve used Phoenix on many projects, but in this case, it was the insurers for the project who insisted on the installation of the screens to protect the atrium while the sprinkler system was being replaced.” T&R Fire Protection, Tom Port Smith

“We were able to employ standard details for the installation of the Phoenix barriers and the Collaroll which wraps some of the beams and other features, FIREFLY® has been involved from the earliest stages, providing general guidance and carrying out inspections. The project has gone very well.” Josh Dodds, Firetech UK
