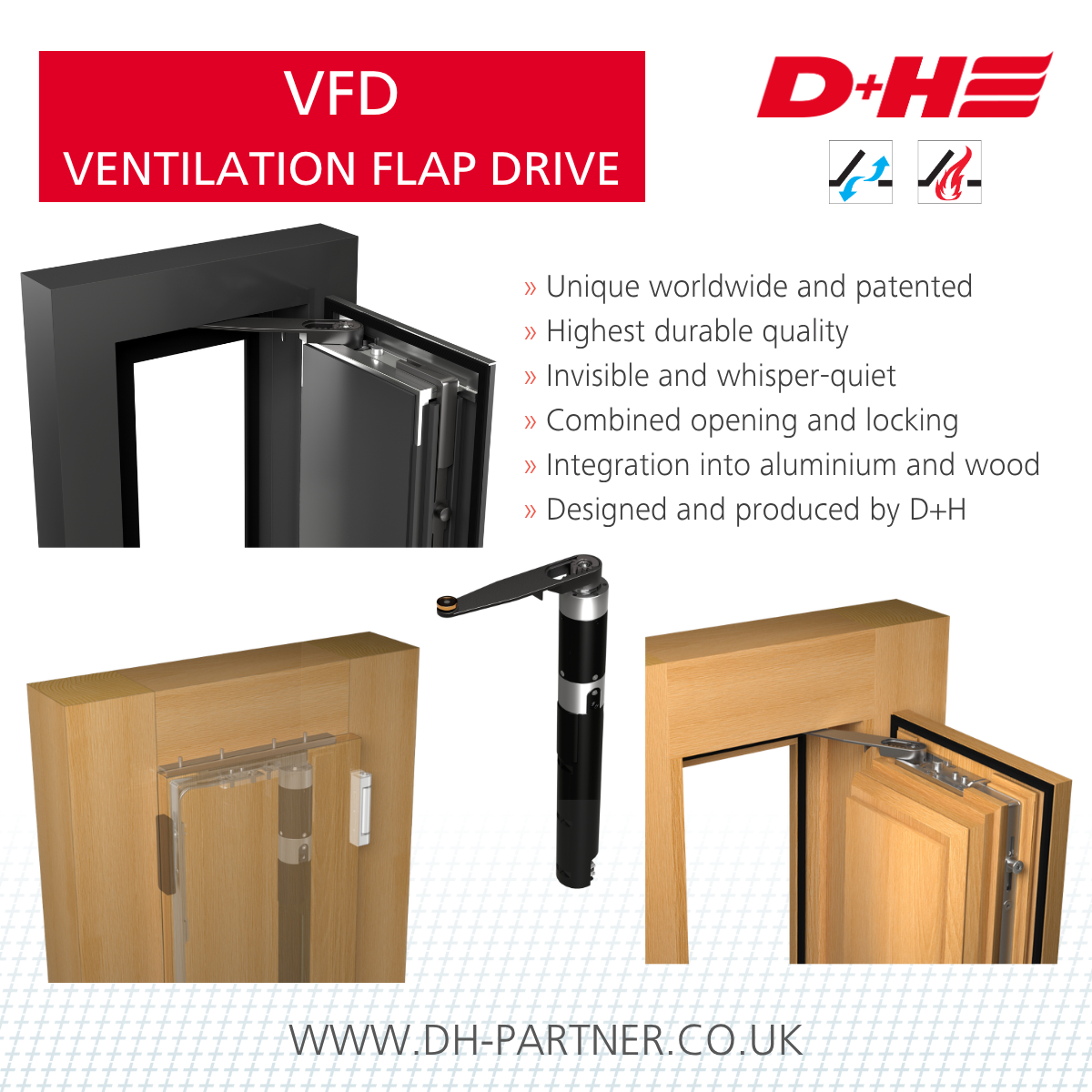

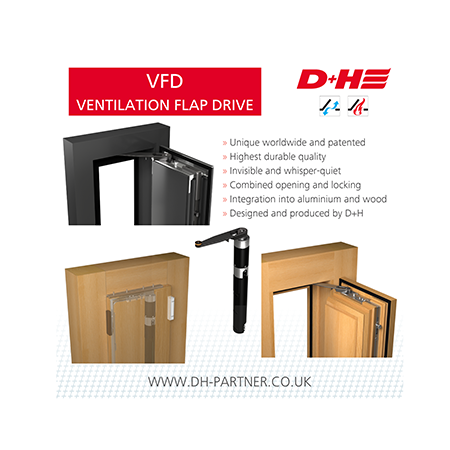

D+H Mechatronic UK proudly announces the launch of the VFD Ventilation Flap Drive, a ground-breaking solution designed for future-oriented architectural projects. The VFD sets a new standard in ventilation technology by combining an innovative, nearly invisible design with advanced functionality and robust performance.

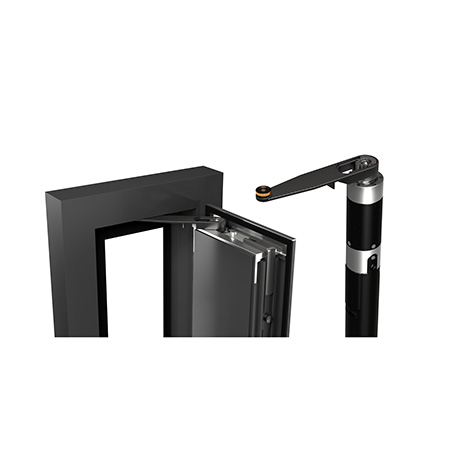

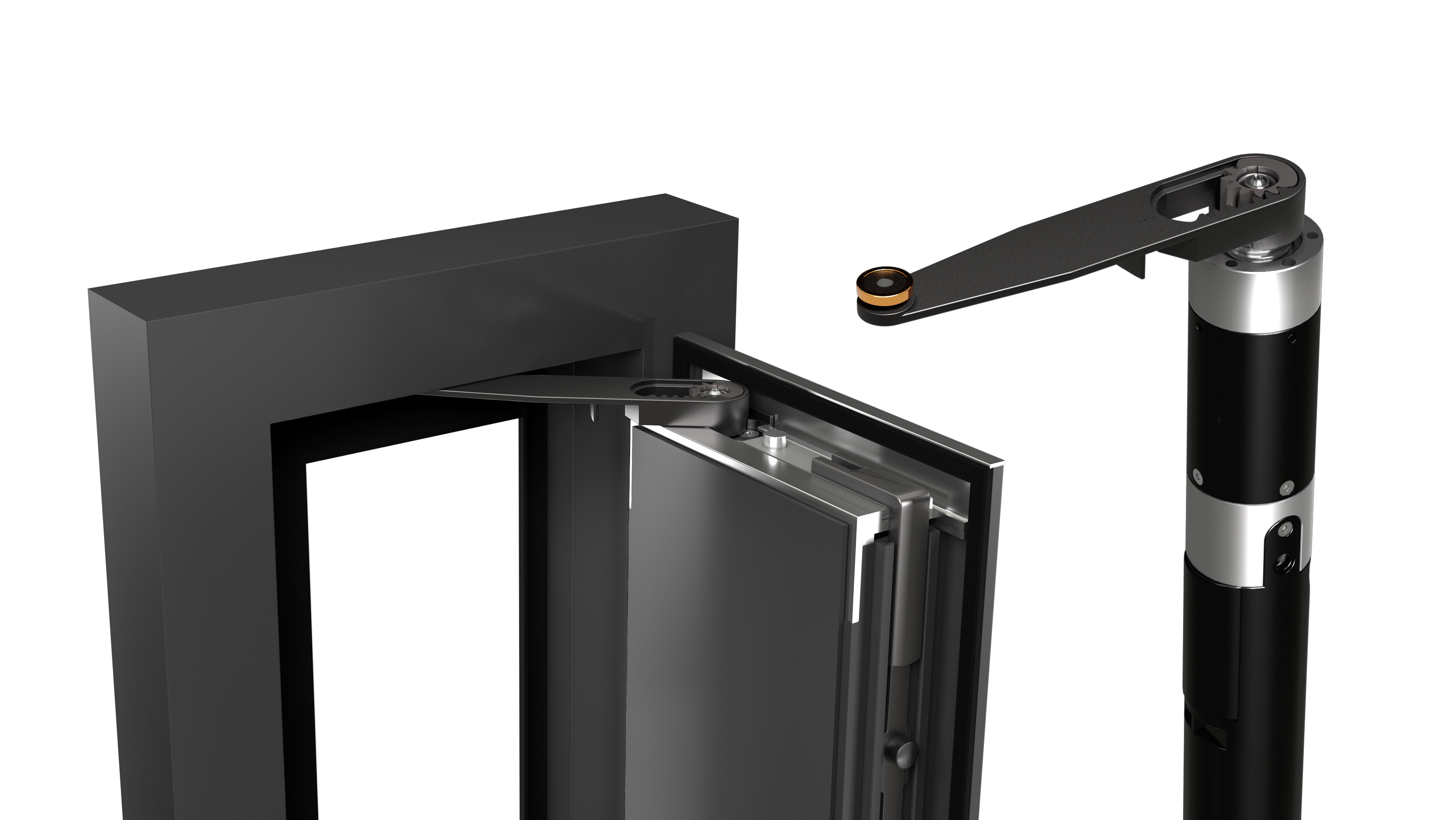

The VFD drive is seamlessly integrated into the sash, remaining discreet even when open. Its compact motor gear unit uniquely combines both opening and locking functions, delivering maximum ease of use and efficiency. High-quality materials, including stainless steel components and a whisper-quiet planetary gear, ensure exceptional longevity and reliability.

Key features include:

• Virtually Silent Operation: Quiet drive for opening, closing, locking, and unlocking.
• Flexible Self-Learning: Automatic teach-in function adapts to individual project requirements.
• Durability: Brushless motor and double ball-bearing output shaft for a long service life.
• Versatile Integration: Compatible with both aluminum and wooden profiles.
• Emergency Release: Manual opening in case of power failure.
• Customizable Performance: Adjustable torques up to 22 Nm, programmable locking forces up to 1200 N, and opening angles up to 130°.
• Smart Connectivity: Direct integration into building management systems via open Modbus RTU protocol.

The VFD also supports the synchronization of two drives for large ventilation flaps and offers simple plug-and-play installation. This makes it the ideal choice for architects and builders seeking a flexible, reliable, and aesthetically pleasing ventilation solution.

Discover more about the VFD and its benefits: : https://www.dh-partner.com/uk/en/drive-series/vfd-series
