Client: Lend Lease and QuintainEstates and Developments
Architect: Terry Farrell and Partners
Type of works. supply of the complete £1.25 million ventilation solution for the Peninsula Central office development. In addition to Fläkt Woods supplying over 2,300 active chilled beams, they are also providing air-handling unitsutilising their patented twin wheel technology, VAV boxes and displacement terminals.

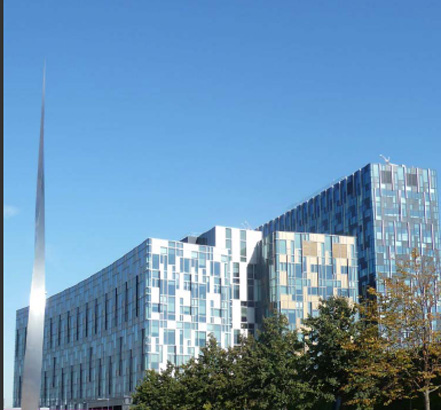

At 196,000 square feet the first of two developments on 14 Pier Walk was officially opened in June 2009 by Mayor Boris Johnson. The project will form one of 3 new head office hubs for Transport for London. TFL have taken a 20 year lease on the building with the first of 1800 staff already at work at the-state-of-the-art green office.
The building has officially been awarded a BREEAM Excellentrating with a score of 71% and an Energy Performance Certificate band B with a score of 37.
The second building, MitrePassage com-prising115,000 sq ft will be ready for occupation at the end of 2009.
During the design stage, M&E consultant HilsonMoran and M&E contractor Skanska visited the Fläkt Woods Produc-tionand R&D Centre in Jönköping, Sweden, where they witnessed a success-fulpurpose built mockup of the system simulating both summer and winter conditions.
The new twin wheel technology is expected to reduce energy costs on summer cooling. Linden Shuttleworth at Fläkt Woods explains. Using our know-ledge of twin wheel technology and active chilled beam systems, Fläkt Woods engineers have created a more efficient method of providing dehumidification to the primary fresh air in order to avoid problems with condensation.
As the name implies, the system uses two thermal wheels (rotary heat exchangers). In winter, the heat of the exhaust air is absorbed by an aluminium rotor, which then delivers the heat to the supply air, and vice versa in summer. Rotary heat exchangers are used when the supply and exhaust air ducts converge at one point. Low velocities through the rotor can ensure optimum heat exchange efficiencies typically between 70-85% and pressure loss of 60 Pa. Whats more, owing to the reheat wheel, a separate re-heater is no longer required. This is ideal for a chilled beam installation that avoids all moisture problems.The Flexicoolrange of chilled beamshave been designed to provide venti-lation, heating and cooling on the peri-meter zones, and ventilation and cooling only on the internal zones. For both buildings the Flexicool series were specified with IQID (flush mounted chilled beams) and IQCA (flush mounted cassette style chilled beams) integrated within the suspen-dedceiling. All chilled beams are fitted with Fläkt Woods patented Comfort Control, which enables velocity control and can be regulated by means of variable geometry slots.
