New from Schueco is the ADS 50.NI pivot door and framing system, which has been designed as a cost-effective, non-thermally insulated solution for schools, hospitals, offices, retail premises and other commercial buildings.

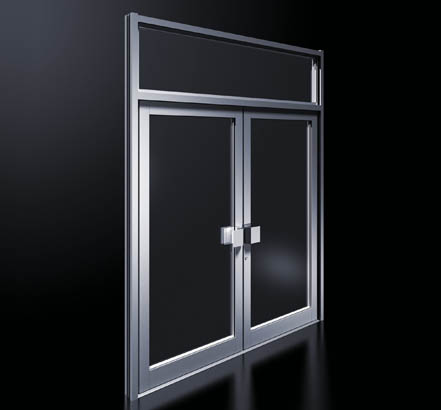

Suitable for both external and internal applications, Schueco ADS 50.NI is available as a single door or a double door with a choice of mid-rail and bottom rail depths. Both versions are robustly constructed using Schueco T-cleat technology with door leaf sizes up to 1,100mm wide and 2,400mm high and a maximum door leaf weight of 90 kg.
For added safety there is an anti-finger trap door jamb option, while optimum security is assured by a 5-ply laminated steel lock bolt and an anti-saw core. Door control is achieved by means of a concealed transom closer or floor spring and architects and designers can choose from a wide range of pad and tubular handles.
Part of a comprehensive system that also includes rebated doors, the Schueco ADS 50.NI door has been designed to accept EN 1125 and EN 179 escape fittings, and glazing and infill panels from 6 to 30mm in thickness.
