Sectional Garage Doors
Novoferm UK
A sectional garage door is made up of several horizontal panels (sections) that are hinged together. These doors open vertically and slide along tracks that curve and run parallel to the ceiling when fully opened.
Unlike the Up & Over doors, a Sectional “door” does not swing outwards, therefore you can use every last centimetre of the space in front of the garage, for example to park your car, as this door type assists to maximise your driveway space. As the sections are pushed under the ceiling to save space, there is also more room in the garage - ideal for tall vehicles such as off-road vehicles or vans.
With a Sectional door with an electric operator, you always have the full clearance height at your disposal. When replacing an Up & Over door with a Sectional door, the passage is even wider, as the sectional garage door can be installed behind to maximise width. The use of the Novoport Speed, side mounted operator also assists with not taking up additional ceiling space.
Advantages & Benefits
Made To Measure | Space Efficient
Vertical lift mechanism allows full use of internal and external space with no outward swinging motion, ideal for installations with restricted space.
Thermal Performance
The sectional design offers superior insulation compared to traditional doors. Each panel is filled with high-density polyurethane foam to reduce thermal bridging and improve energy efficiency.
Security
Anti thief security features include rolling code technology, no lock to pick, built in emergency sensor to a self locking motor.

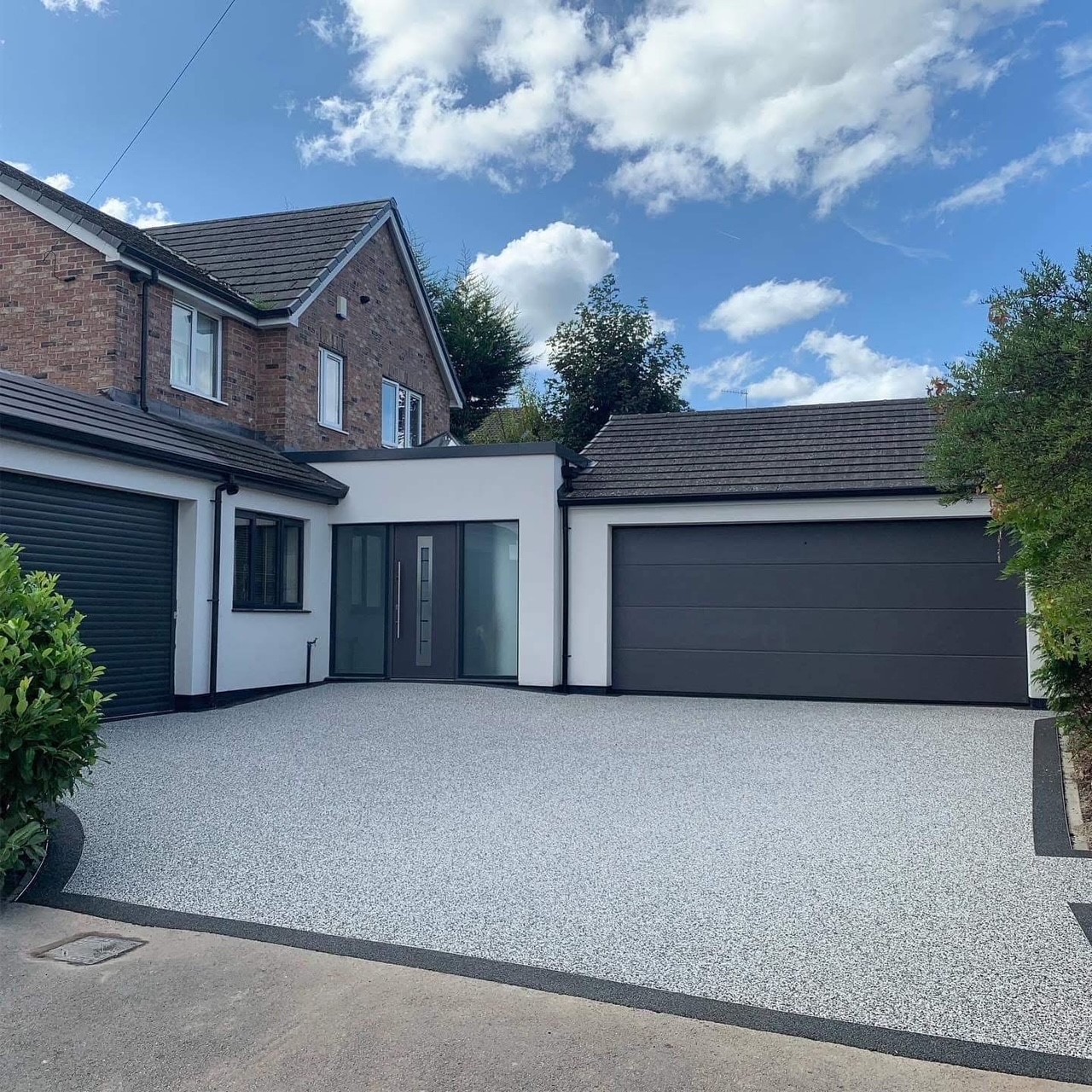

Exclusive to Novoferm : ISO 45 EVO
We are the exclusive supplier of the ISO 45 EVO.
• 45mm insulated panels with thermal break.
• Significantly improved heat insulation value for the section of U(p)=0.46 W/m2K and up to 17% improved heat insulation for an installed door.
* With respect to door solutions with comparable section thickness.
• Available in a range of finishes, RAL colours and glazing options.
Specifications
Material: Steel
Overall Dimensions: Up to 5.50m wide
Surface Finish: Woodgrain, Smooth surface, Wood effect finishes, Satin surface & Microline
Insulation: 20 mm or 45 mm insulation

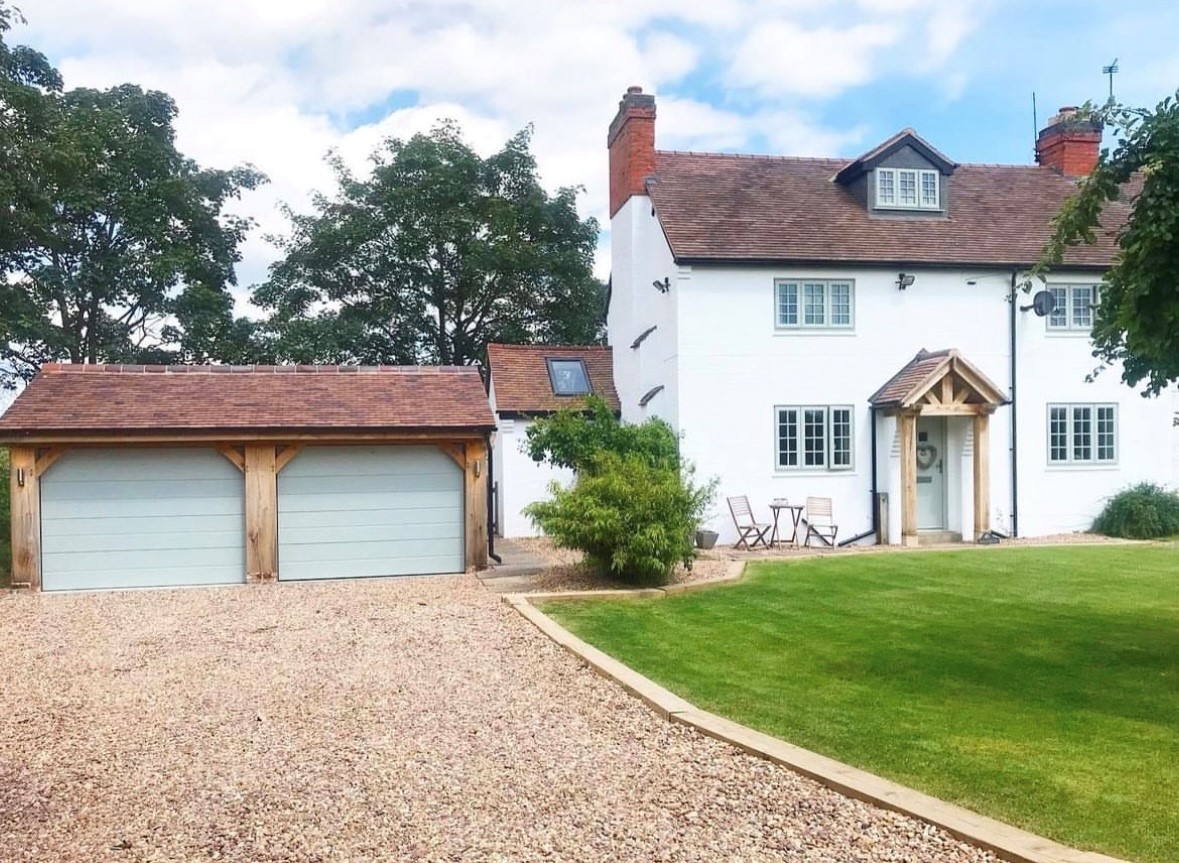

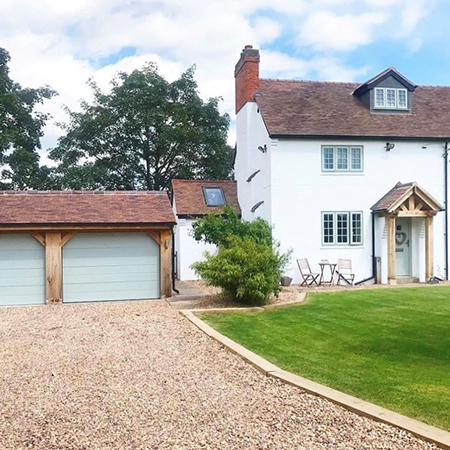

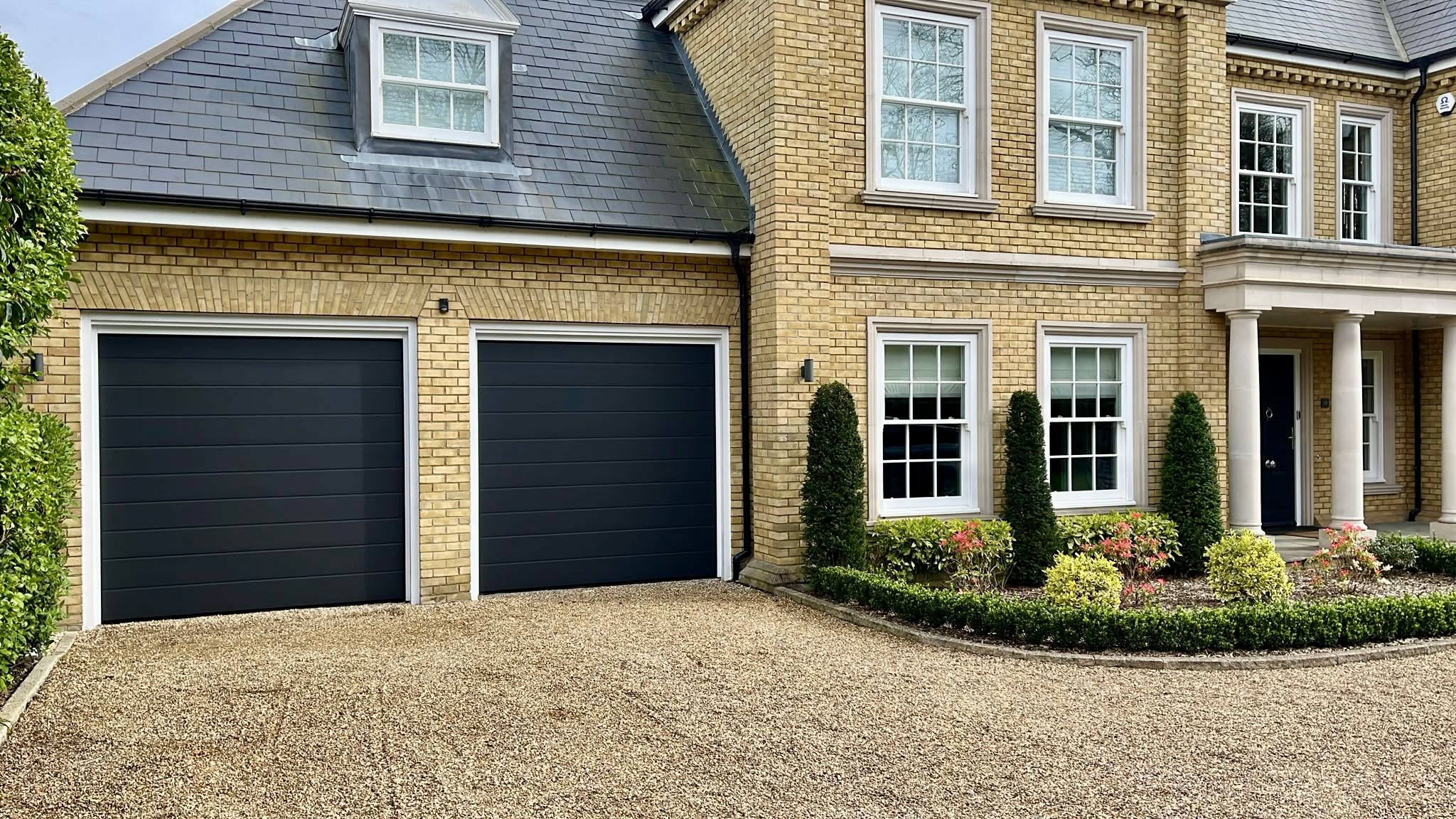

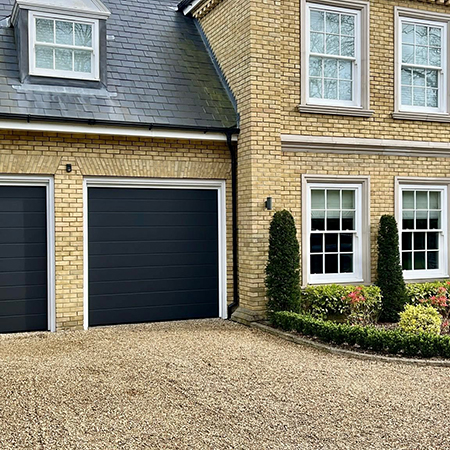

Door Designs: 4 Designs: Horizontal Rib, Large Rib, Flush & Panelled.
Colours & Finishes:
16 Attractively priced preferred colours:
RAL colours of your choice
4 Wood finishes
6 Satin surfaces
Glazing:

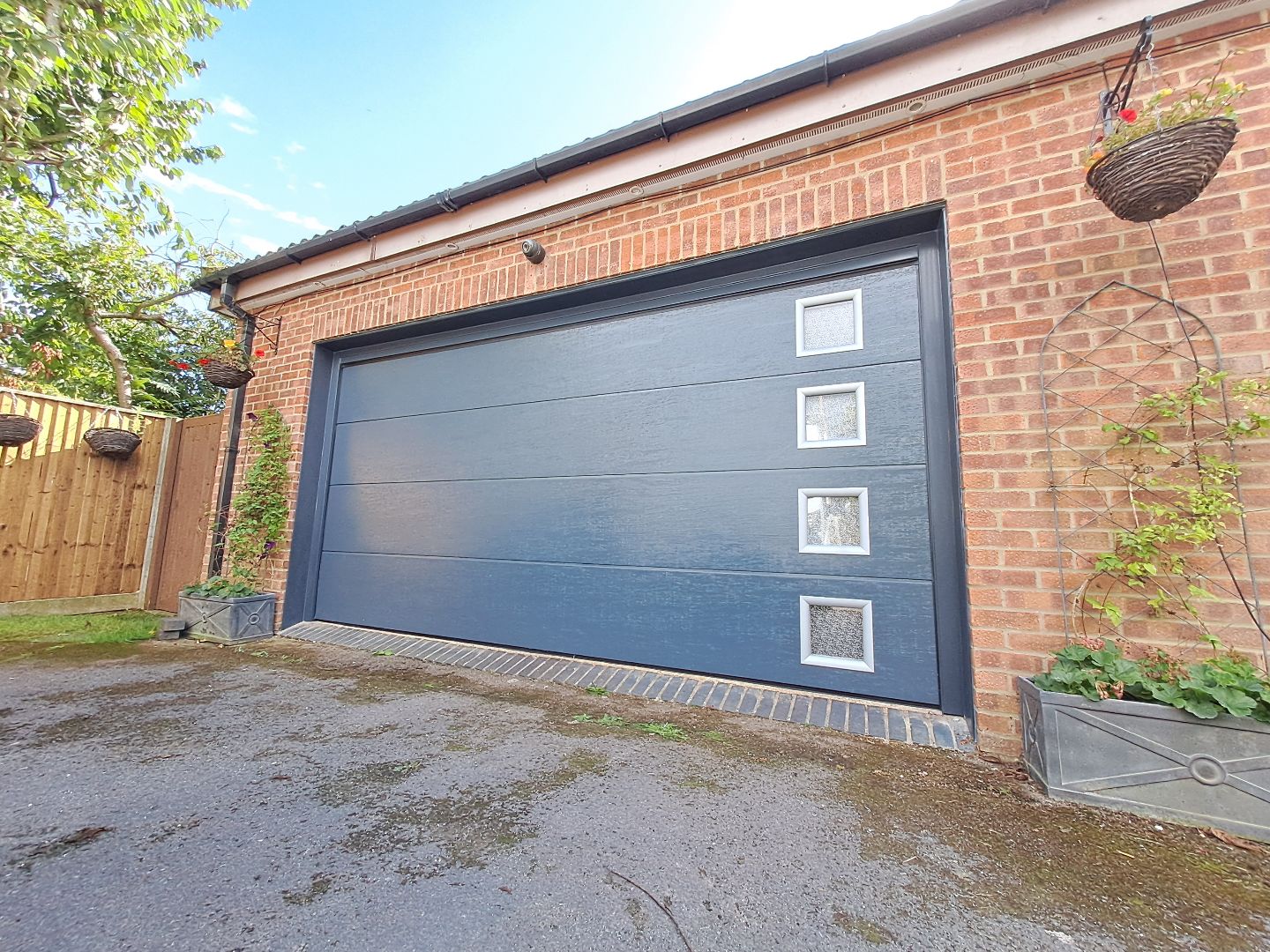

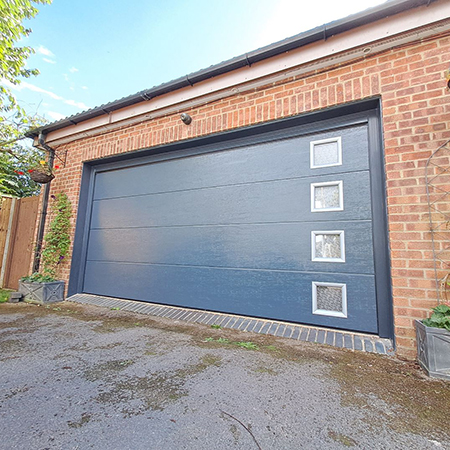

V1 Plain clear, V2 Rhombus, V3 Cross clear, V4D Diamond Leaded Clear, V4S Square Leaded Clear, Sunrise glazing, V7 Light Strip, V8 Portholes & V9 Square Aluminium.
Frames: Steel Frame.
Opening Method:

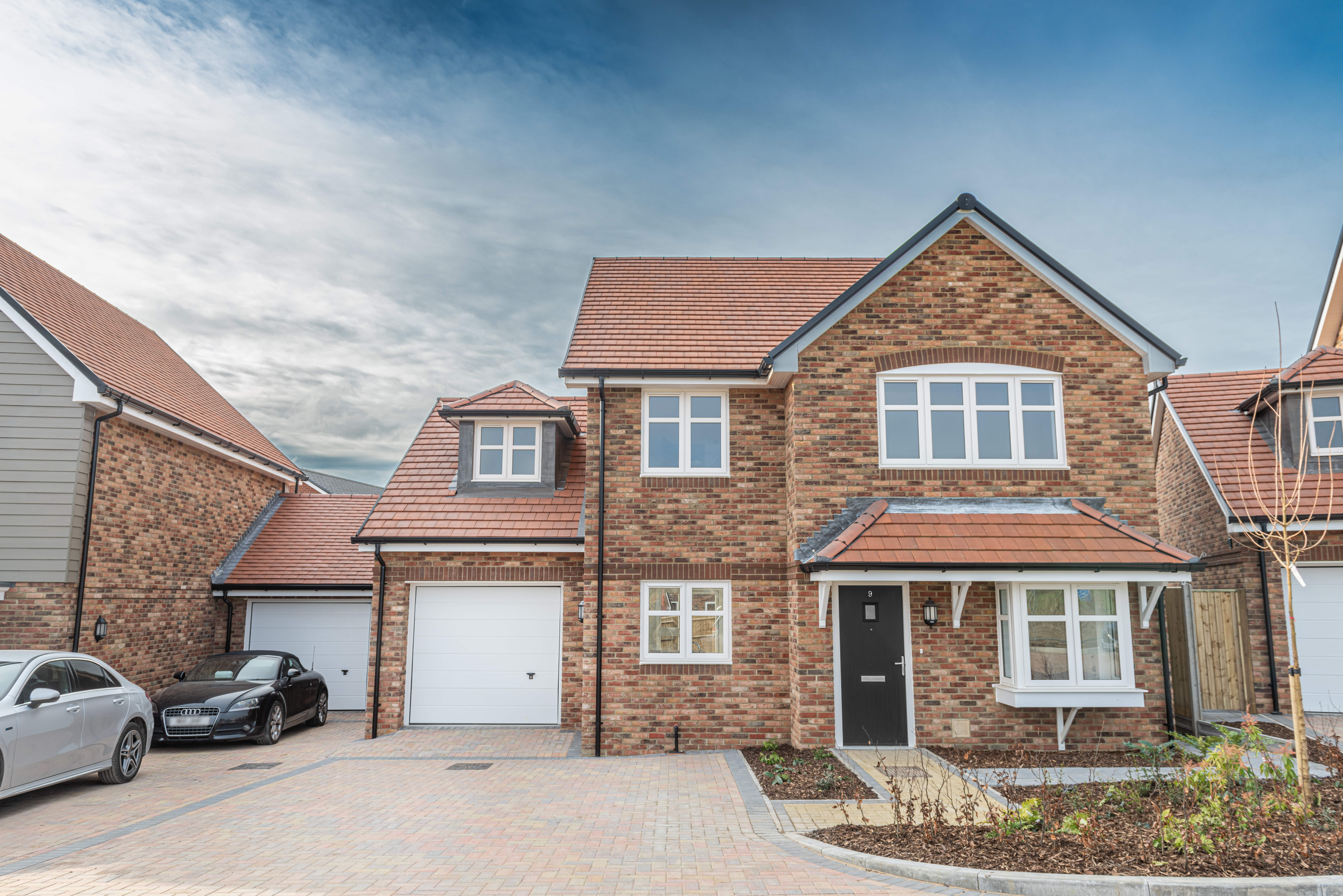

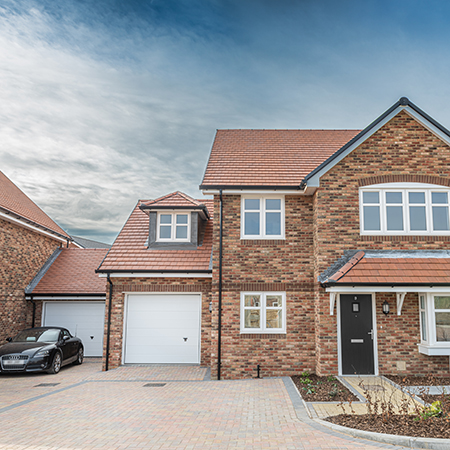

Manually operated (with handle), Electric (with operator) & Electric (with app).
Security Rating: TUV-tested burglar resistance.
Other Certification: Compliant with IS0 9001 and the safety requirements of European garage door standard EN 13241.
Warranty:
Subject to the terms and conditions. Novoferm garage doors offer the warranty:
10 Years Safe and reliable operation (for use up to 5 open/close cycles per day).
10 Years Structural integrity of door panels.
10 Years Panel corrosion.
10 Years Sectional on immovable frame parts.
5 Years Insulated sectional doors.
2 Years Movable and mechanical parts (including, but not limited to, springs, rollers wheels, locking points, rods/cables, barrel and locking mechanisms).
