Six-metre High Steel Facade Door is a Schueco Jansen First

Six-metre High Steel Facade Door is a Schueco Jansen First

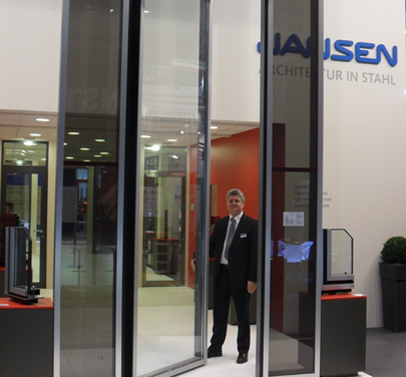

Launched at BAU earlier this year, the VISS Façade Door is unique to Schueco Jansen and demonstrates the system innovation and engineering expertise that have made the company Europe's leading steel systems specialist. Available in a single or double-leaf configuration in a variety of sizes up to a maximum height of six metres, the door is designed as a specific project solution based on a mullion/transom construction.

A VISS Façade Door enables items to be moved easily from one side of a façade to the other, making it ideal as a service door for locations like exhibition halls, atria, car showrooms, museums etc. The special design principle means that the bimetallic effect often encountered with very large doors exposed to strong sunlight is not critical, so ensuring a trouble-free working life.

Virtually identical in appearance to the steel façades in which they are set, VISS Façade Doors have thermally insulated frames and can accommodate glazing units up to 42mm thick to minimise heat loss. Double rebate gaskets are standard and locking consists of concealed espagnolette bolts to the bottom and top of the door. The doors are inward-opening and are operated only from the inside.

The VISS Façade Door is part of a comprehensive range of highly engineered steel windows, doors and façades, including fire protection versions, from Schueco Jansen.
