Sustainable flexible cooling for Dubai headquarters

Sustainable flexible cooling for Dubai headquarters

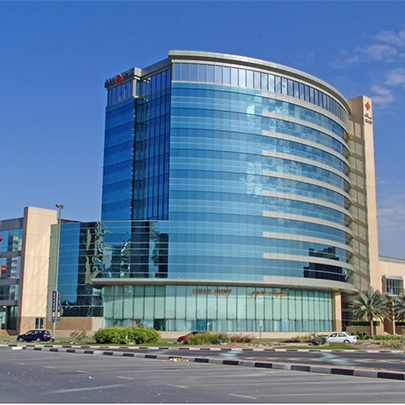

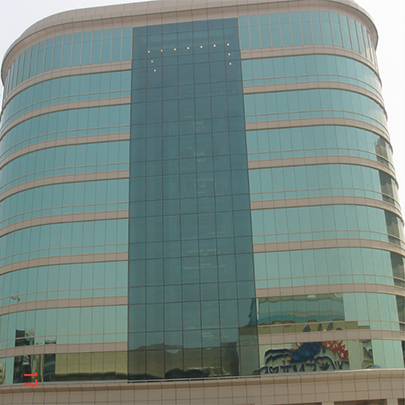

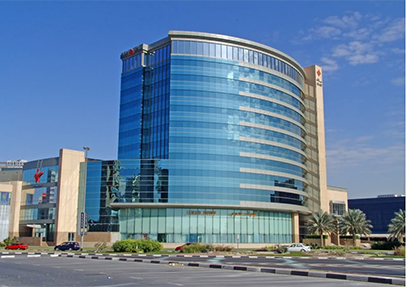

The headquarters of one of the MENA region’s leading retail and leisure property companies Majid Al Futtaim Properties is the first existing building in the UAE to be LEED EBOM Gold rated, with the AET Flexible Space Under Floor Air Conditioning system playing a major part in achieving flexibility and occupant comfort. The 10,000 m2 tower is fully served by an AET CAM-V system; supplying conditioned air via the floor plenum and receiving spent air at high level offering maximum flexibility to occupying tenants. The tower has a total of 45 zones served by the AET CAM-V downflow units and nearly 5000 recessed fan terminals which supply conditioned air into the workspace.

The AET underfloor systems utilise the plenum beneath a raised floor as the ventilation duct, eliminating the need for ceiling based duct work, potentially reducing height of new build construction by up to 10% and making it easy and economical to adapt to changes in the workplace. The conditioned air is introduced into the space via floor recessed fan terminal units or Fantiles, which are easily relocated with the 600 x 600mm raised floor tiles and also feature integrated controllers allowing users to personally adjust temperature and fan speed settings.

The CAM-V units introduce conditioned air at floor level into the plenum beneath the raised floor and then receive return air at high level for reconditioning. This configuration is ideal for easy reconfiguration as there is no division of the plenum into supply and return channels. In a statement of satisfaction about AET Flexible Space system, MAF Properties comment on the good year round performance, and quoted, “It is the flexibility of the system, however, that saved us both time and money.” Changes are able to be made in a matter of minutes without disturbing normal operation of the office, and in an Occupant Comfort survey carried out as required by LEED EBOM; approximately 79% of total building occupants responded, with a majority declaring that they were satisfied with thermal comfort offered by the HVAC system. The owner occupiers further comment, “We would definitely recommend the AET Flexible Space Underfloor HVAC system for any modern building requiring flexibility and true sustainability.”
