Underfloor air conditioning for 42 Berners Street

Underfloor air conditioning for 42 Berners Street

AET Flexible Space have provided their underfloor air conditioning at 42 Berners Street, Fitzrovia as part of a brand new development.

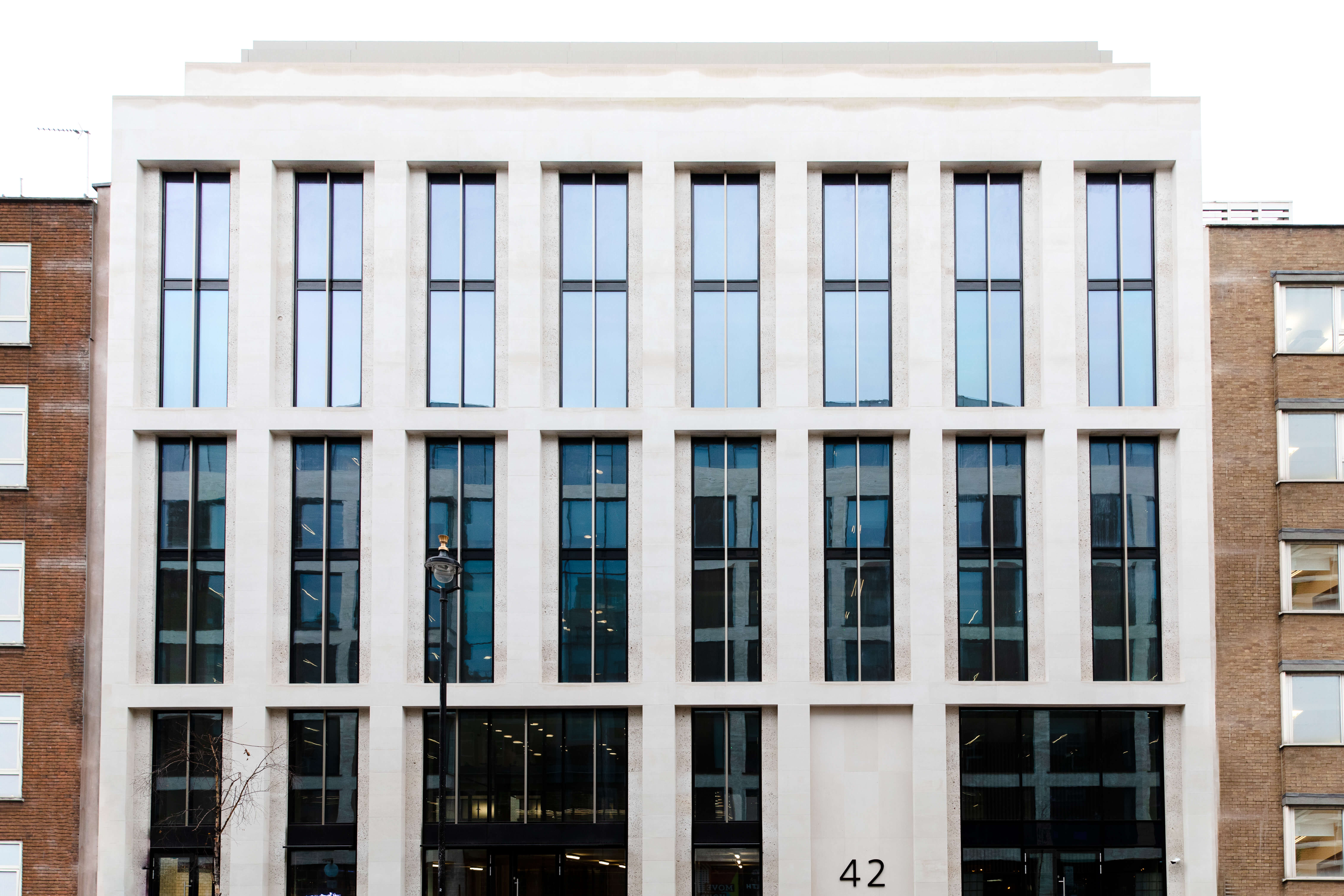

The 27,300 sq. ft. building is a high quality new build development created through the demolition of two town houses, offering 22,000 sq. ft. office accommodation on five of the seven floors and retail at basement and ground level.

The CAM-C direct expansion system was installed throughout seven office floors with each floor divided into two separate zones, each served by a CAM-C25 downflow unit.

The Fantiles supplied are standard TU4-EC fan terminals which can be easily re-positioned to suit individual tenant needs at Cat-B fit-out stage.

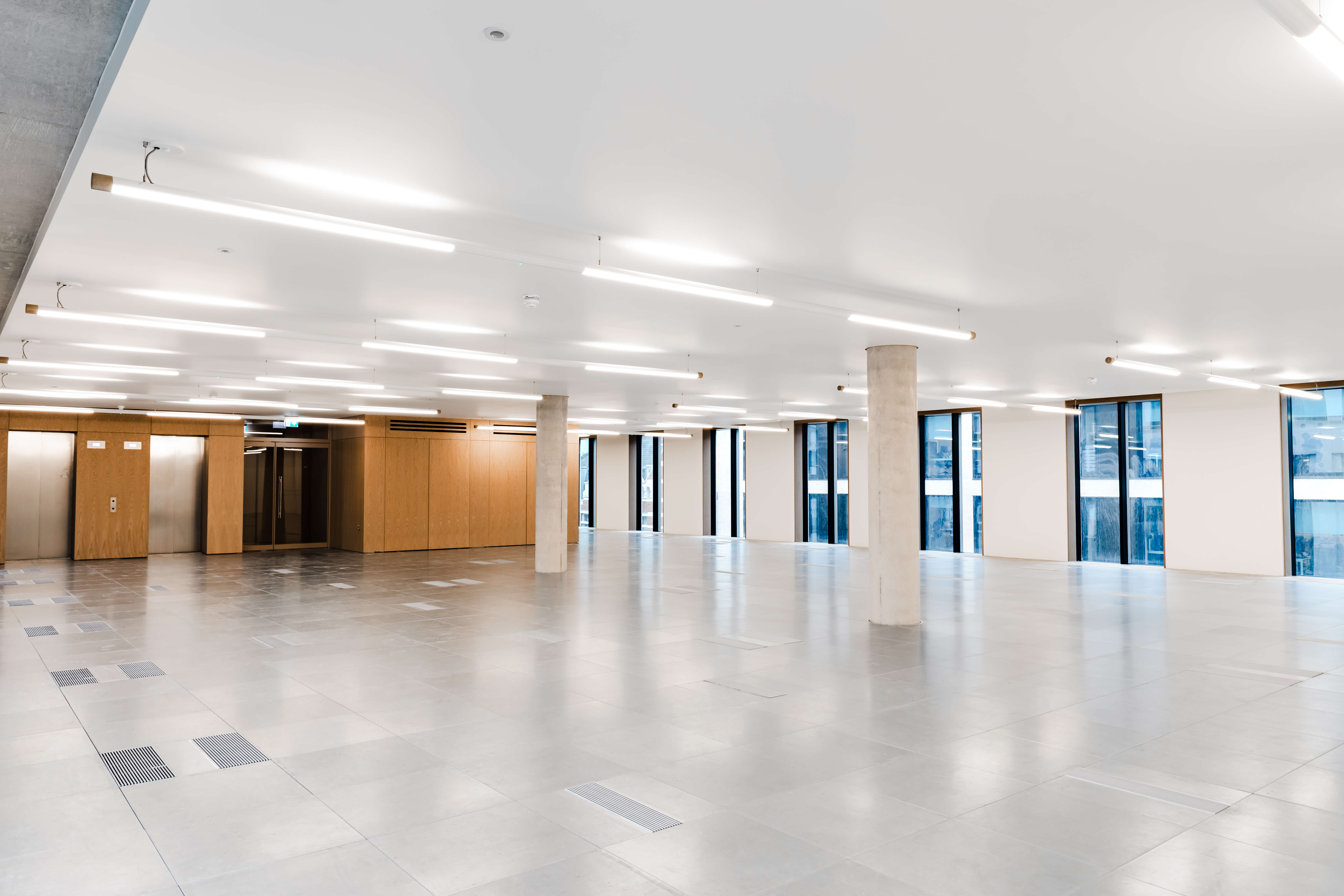

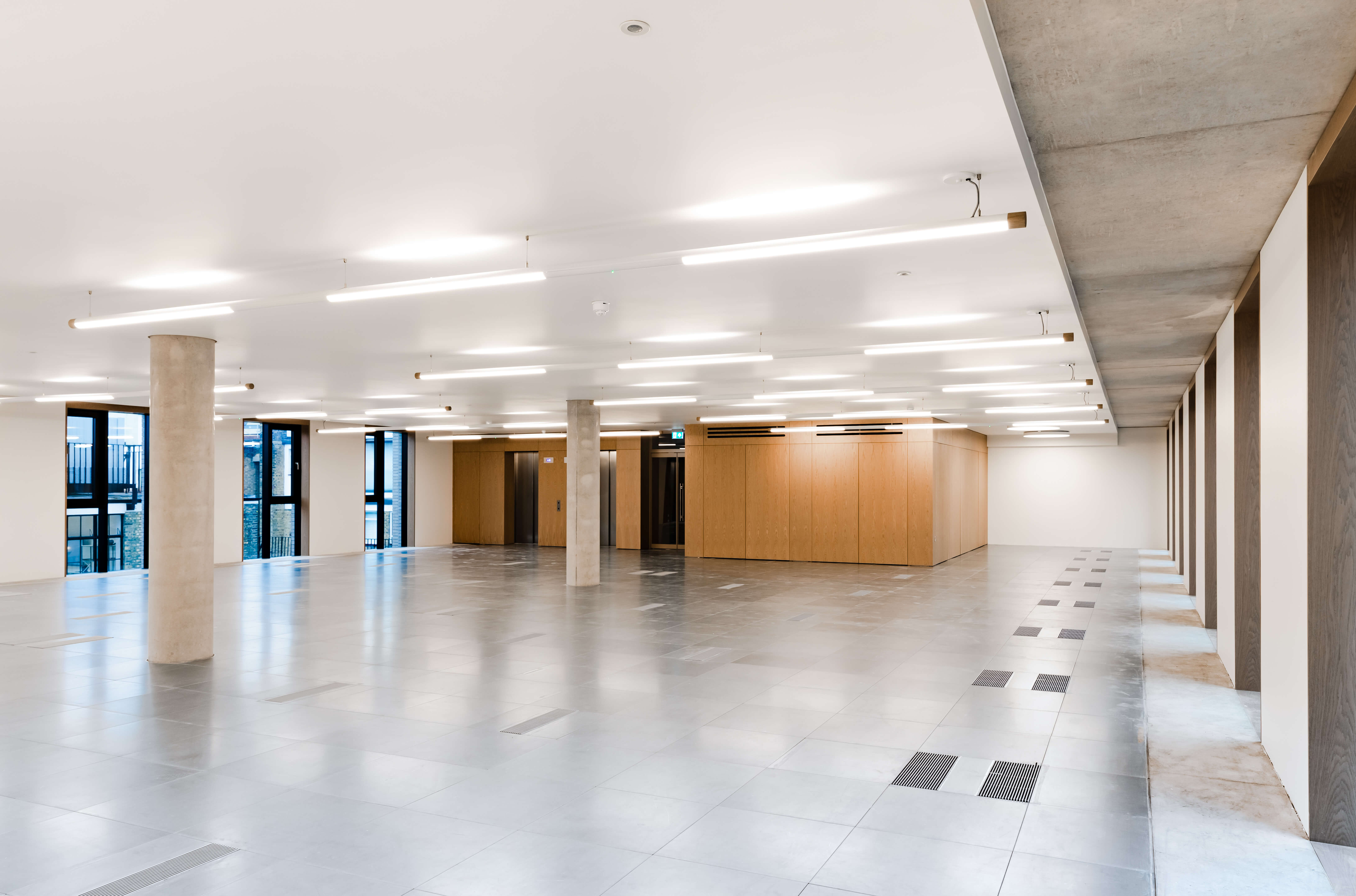

Each floor has fully conditioned chilled or warm air which is fed into the plenum by the zonal CAM downflow units, and then supplied into the workspace via Fantile terminal units.

By doubling up the use of the underfloor plenum, ceiling voids can be reduced or eliminated, equating to approximate savings of 400-500mm per floor.

Systems can be configured with either underfloor or high level return air paths and can easily integrate with passive or other ventilation systems.
