Air Handling Units

Daikin Applied UK Ltd

Air handling units optimise air conditions throughout multiple spaces. An AHU can be customised to your building with no installation restrictions or design limitations.

As air handling units are based on a unique modular design they can be customised to your exact requirements.

Daikin Applied’s air handling systems handle air flow rates from 0.1m3/s up to 55m3/s.

The AHU can be adapted to deliver whatever air flow you require via the specific dimensions of flow section available at the installation.

All Daikin Applied air handling units are energy efficient and the polyurethane panels used guarantee high thermal insulation performance.

Filters are mounted on sealed fixing frames to ensure filtration efficiency.

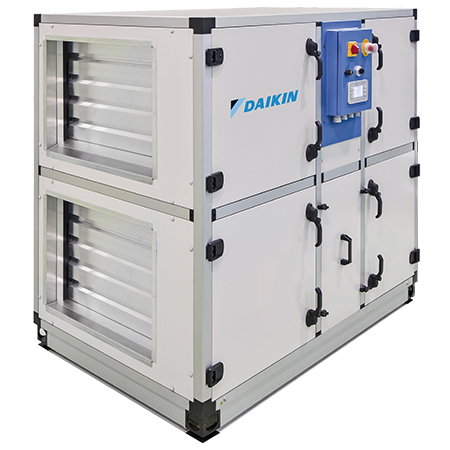

D-AHU Modular:

Air flow: 500 to 25,000m3/h.

Features:

•Compact ventilation unit with heat recovery

•Pre-defined sizes suitable for indoor or outdoor applications for temperature range -25°C (-40°C with electric heaters) to +43°C

•Variable Air Volume (VAV) and Constant Air Volume (CAV) system capability with rotary heat exchanger ensuring up to 85% temperature and up to 60% humidity efficiency.

•Plug & Play controls for user-friendly management of supply, return or ambient temperature and optimised CO2 air quality control.

•Easy commissioning with nominal air flow programmed at factory – Constant Air Flow (CAV) or Pressure control (VAV), economy mode, night time operation and time scheduling

•EC fan technology for greater operating efficiency and silent operation with premium IE4 rated efficiency motors and Noise Reduction Laminar Straightener (NRLS) accessory.

•Integrated control system for seamless connection between VRV, applied systems, air handling units and BMS systems.

•Eurovent certified.

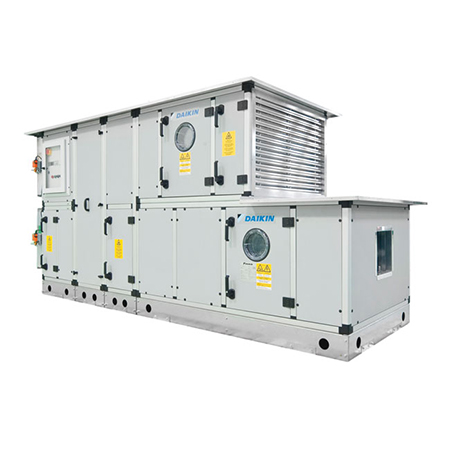

D-AHU Professional:

Air flow: 0.3m3/s – 55m3/s

Features:

•Pre defined size – Twenty-seven (27) fixed sizes optimized to reach the best compromise between competitiveness and manufacturing standardization

•Infinitely variable sizes – Designed to overcome installation constraints. The system gives the possibility to tailor the unit sizes through increments of 5 cm average

•Premium Eurovent performances

•Highest efficiency for extensive application range

•Ultra low SFP in compliance with building regulations

Spares

Daikin Applied UK are best equipped to meet all your Daikin spares requirements.

Continue to sustain the efficiency of your Daikin Applied UK equipment with their genuine renewal parts.

They know and understand your system requirements, and can provide the right part for the right job.

Speak to their experienced spares team on 01670 566243 or email spares@daikinapplied.uk, to help you identify the correct part and advise the best price and current availability.

They also have access to a dedicated spares bank which enables us to provide you with reasonable lead times.
