Cibes Outdoor Lift (400/500 KG)

Cibes Lift UK

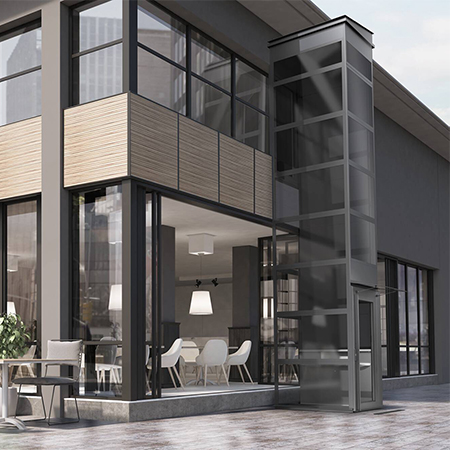

Cibes new weather resistant outdoor lifts offer comfortable access to all floors and create a seamless flow between indoor and outdoor areas, expanding your living space to create a spacious feel.

All-inclusive lift concept
All lift solutions by Cibes are delivered in ready-made modules to ensure a fast delivery and a smooth and easy installation:

• Fast track manufacturing & delivery
• Installation in a few days
• Reduced labour costs

Weather resistant lift
Cibes standard outdoor equipment ensures their lifts are weather resistant:

• Anti-corrosive treatment of bottom frame and platform
• Floor protected electrical compartment
• Aluminium doors and weather resistant call buttons
• Outdoor roof and door canopies

The outdoor concept is available for platform sizes 1000x1467 and 1100x1467mm:

• Slanted outdoor roof, protecting the lift from rain and snow
• Door canopies in plexiglas or steel
• Elegant, rust proof aluminium doors
• Sealed, weather resistant call buttons
• Sealed glazed shaft panels
• Bottom frame with anti corrosive coating
• Flood protected electrical compartment

Cibes outdoor lifts are designed to function within a temperature span of approximately -10 degrees to +30 degrees Celsius. For more extreme climates, Cibes offer additional options and solutions for temperature control.

Space-efficient solution
To maximise the usable space inside a building, Cibes space-saving outdoor lift offers:

• Low top height and pit
• Built-in machine room (MRL)
• Minimal footprint - Cibes outdoor lifts have minimal structural impact on buildings and the passenger platform constitutes 70% of the total footprint of the lift.

Installation in 3-4 days
Cibes ready-made lift concept speeds up the installation and minimises the impact on buildings.

Features

Elegant door canopies
The elegant door canopies in Plexiglas blend in with any building and offer comfortable protection from rain and snow.

Smart heating solutions
To protect electronics at low temperatures, Cibes offer heating pads for the door locks and a fan heater for the machine room.

No visible rivets
Cibes have created unique corner profile covers to ensure that no rivets are visible on the inside of the lift shaft.

A/C ready outdoor lifts
To offer optimum temperature control, Cibes outdoor lifts are available A/C ready and the option includes a connection box to facilitate installation.

Safety edges with LED
The safety edges of the platform floor can be equipped with LED strips to create a cool lighting effect.

Outdoor equipment

Outdoor roof
The roof is designed to handle rain and snow (3kN/m², snow zone 3). The slope of the roof can be configured in 3 directions.

Aluminium doors
Aluminium door AL5 is standard for outdoor lifts, the fully glazed AL6 is also available as an option.

Canopy in plexiglas
The canopy in plexiglas looks light and elegant, sheltering from rain and light snow at entrance and exit.

Canopy in steel
The steel canopy is sturdy and offers reliable protection against rain and snow at entrance and exit.

Weather resistant call buttons
The push button in stainless steel is class IP55 and the aluminium faceplate is sealed to resist rain and humidity. The call button faceplate is delivered in grey or white as standard but is also available in any RAL or premium colour as an option to match the lift.

Sealed glass panels
The glass panels of the lift shaft are equipped with a rubber seal to prevent water infiltration and reduce condensation.

Drip plate
For rainy climates, the drip plate is placed at the base of the shaft and leads rainwater away from the lift.

All Cibes lifts are certified by the notified body Liftinstituut B.V. and carry the CE mark.

Cibes lifts meet the requirements of European safety standards and are safe and easy to use.
