Bolton Gate Company has expanded its Fireroll range with the introduction of the Fireroll Acoustic Fire Shutter E120, offering an innovative combination of fire resistance and sound insulation. Tested at Salford University Department of Acoustics and two fire laboratories, the Fireroll Acoustic E120 achieves a maximum sound reduction of 25.2dB, adhering to the latest EN and ISO standards.

The Fireroll Acoustic E120 is electrically operated via a 230V single-phase or 400V three-phase Speedsafe motor, with gravity failsafe closing activated during a fire condition. It features a durable roller constructed from seamless steel, galvanised steel laths filled with fire-resistant acoustic material, and robust zinc-plated end plates. Additional options include heat/smoke detectors, audio-visual warnings, and a variety of finishes, including polyester powder coats and stainless steel grades.

Designed with safety and functionality in mind, the shutter complies with EN 12604 safeguarding requirements and includes a safety brake, adjustable limit switches, and a low-level push button station with an emergency stop. With sizes up to 12,000mm wide (height-dependent) and weighing approximately 50kg/m², it meets the needs of diverse applications. Bolton Gate’s Fireroll Acoustic E120 showcases innovation, durability, and versatility, making it an exceptional solution for modern facilities.

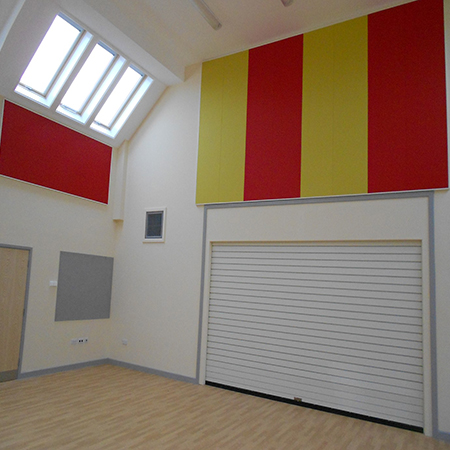

Ideally suited for multifunction spaces such as school kitchens, exhibition halls, recording studios and warehouses, the Fireroll Acoustic E120 excels in environments requiring both fire and sound compartmentation. Its bespoke and compact design, paired with an optional double curtain for enhanced sound insulation up to 39.1dB, positions it as a versatile and high-performing solution.

In keeping with the same testing, the shutter is also rated EW90 or EW120 dependent on size for face fixed arrangements.

Key Features:
Fire rated acoustic shutter.
Sound insulation.
CE Marked fire shutter.
Bespoke, compact design.
Multifunctioning as a security shutter.

This CE-marked shutter reinforces Bolton Gate Company's commitment to safety and sustainability while catering to the evolving needs of modern facilities.

For more information, visit Bolton Gate's website or contact their sales team:

E-mail: sales@boltongate.co.uk
Web: www.boltongate.co.uk
