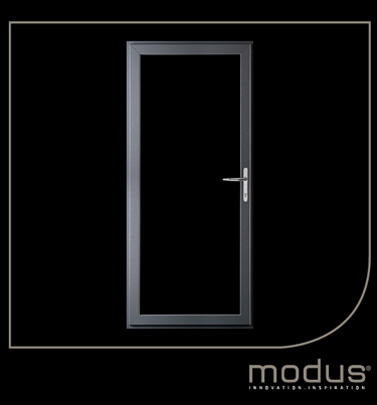

Modus 75mm Residential Doors

Eurocell

Modus is the first fully integrated PVC-U window and door system in the UK, capable of producing eight different product types from a single system. It’s an innovative 75mm front to back dimension six-chamber design, the first to utilise dual material extrusion technology (DMET) in the UK. DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised. That’s why Eurocell can offer an unrivalled 12-year profiles guarantee for Modus.

Modus Residential Doors can be fabricated in a range of styles to suit the building architecture. Doors are available with a PVC-U low threshold to prevent cold bridging, which is Building Regulations Part M compliant with the addition of aluminium ramps (available separately).

Profiles:
High quality impact resistant white PVC-U extrusion utilising 50% post-consumer recycled PVC-U, producing a rigid six-chamber profile to BS EN 12608 and manufactured in accordance with BS EN ISO 9001 and BS EN ISO 14001.

Seals and Gaskets
Main profiles supplied with integral PVC-U gasket delivering exceptional thermal, weathering and air tightness performance.

Reinforcement:
Galvanised steel reinforcements in door sashes, optimised for strength with secure hardware fixing.

Hardware:

  • Accepts hardware from most leading manufacturers.
  • Full depth Eurogroove
  • Secure location of hardware

Security
Internally glazed as standard, Modus will accept enhanced security glazing specifications
Single doors and coupled sidelights have been assessed to PAS24: 2012
Locking handles are available in a variety of finishes to complement exterior colours.
All hardware meets the requirements of BS 7412.

Performance:
U-value performance of 0.8 for triple glazed doors, 1.3 U-value for double glazed doors.

Options:
Framing:
Standard outer frame with PVC-U low threshold (Part M threshold option available)
Dedicated sashes for inward and outward opening doors
Choice of two transom and mullion sizes - 70mm & 85mm

Door options:
Single doors open in or open out
Fanlights and sidelight frames
Options for transoms and mullions

Glazing:
Accepts 28mm and 44mm glazing units
Georgian bar and leaded light options
Ancillaries:
Frame extensions, cills and weathering trims
Lightweight and structural coupling members
Standard and structural bay corner posts
Reveal liners and finishing trims
Low PVC-U thresholds for inward and outward opening doors. Part M compliant thresholds also available.

Ventilation:
Proprietary ventilation systems can be fitted to doors in compliance with Building Regulations.

Fixing:
Can be achieved through the frame with fixing lugs or into Cavalok cavity closers.
Methods also available for timber framing, flush or check reveals.

Opening:
Inward opening
Outward opening
Door Frame:
Type: Standard frame
Fanlight frame
Sidelight frame

Couplings:
Slimline coupler

Extensions:
10mm, 20mm & 50mm allows additional clearance for hinges
50mm accommodates proprietary trickle ventilators

Transom and mullion size
70mm
85mm

Bay window corner posts
Angles from 90-180 degrees

Weather bars
Head drip
Weather bar

Cills
85mm
150mm
180mm
Low thresholds
Standard PVC-U frame threshold.
PVC-U low threshold (Can be Part M compliant with the addition of aluminium ramps)

Glazing:
28mm double-glazed insulating unit, glazed internally
44mm triple-glazed insulating unit, glazed internally
Ironmongery:
Controllable ventilators
Flag or Butt Hinges
Locking handles
Night vent
Permanent ventilators
Shootbolts

Accessories:
Cavalok head vent
100mm-300mm Cavalok cavity closer
Fixing
Through-frame fixing


Properties

SizesDoor sizes permitted
Width: Min 800mm – Max 1000mm
Height: Min: 1000mm – Max 2300mm
ColoursBlack Ash woodgrain/White
Anthracite Grey woodgrain/White
Slate Grey woodgrain/White
Moondust Grey woodgrain/White
Irish Oak woodgrain/White
Golden Oak woodgrain/White
Rosewood woodgrain/White
Quartz Platinum metallic woodgrain/White
Asphalt metallic woodgrain/White
Sapphire Silver metallic woodgrain/White
Anteak woodgrain/White
Cream
White
Other guarantees12-year manufacturer profiles guarantee (White)
