Office Partition Systems

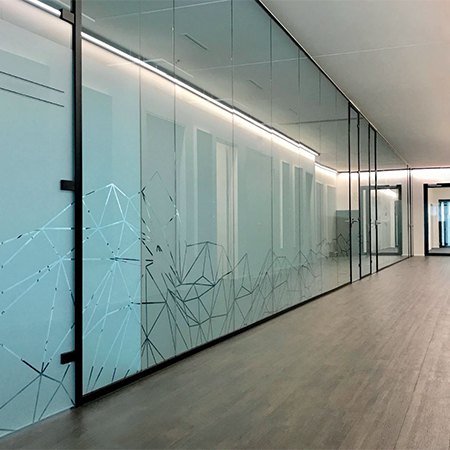

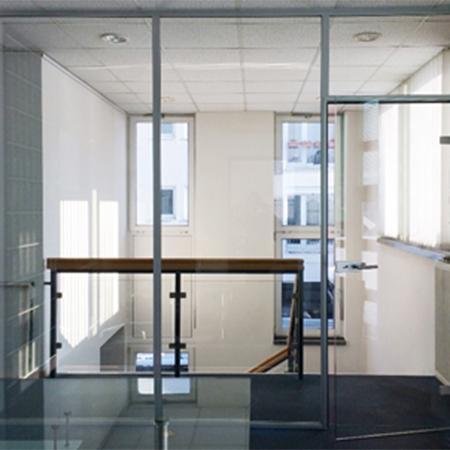

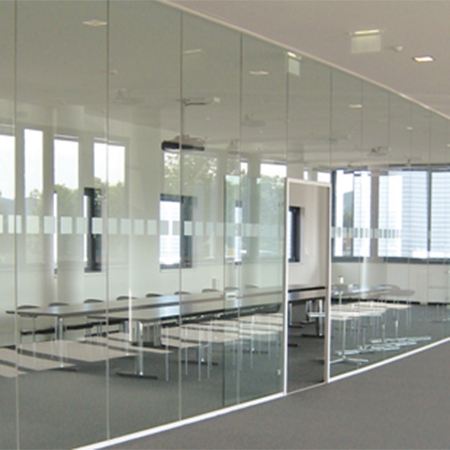

With its Office Partition Systems CRL offers a creative and effective solution for modern interior designs. The dry-glazed Office XL system provides a maximum transparency thanks to its thin profiles for ceilings, floors, walls and door frames. The aluminium profiles offer an elegant appearance with their powder-coated, satin anodised or brushed nickel standard finishes.
The profiles for Office Partition Systems are suitable for 8 to 16 mm monolithic toughened glass or laminated glass. The EPDM rubbers are available in black or grey. If an enhanced sound insulation is required, the system can also accomodate insulating glass. With the variation “Office XL“ that is suitable for 28 mm glass thickness fixed glass panels sound insulation can go up to 42 dB (decibel level achieved).
The well though-out system makes its installation simpler and reduces the time required. For example the height of hinged-doors can easily be adjusted, glass fabrication is not required and the doors can be installed in mounted ceiling profiles in wall-to-glass or glass-to-glass applications. Even floor-to-ceiling doors can be mounted, if desired. CRL offers a choice of high-quality door hinges, latches and handle-sets.
As it is a dry-glazed system it doesn‘t require the use of a silicon sealant – from the laborious task of placing the silicon without excess to avoiding the creation of bubbles. Instead CRL offers glass-clear and durable joints made of polycarbonate. The joints clip on the glass and are suitable for various connection types such as 180 degree, 135 degree, 90 degree abutment joints, T-connections and corner joints. The practical, invisible joints for Office Partition Systems emphasize the impression of maximum transparency in interior design.
To help with the mounting of the systems CRL offers a vacuum ratchet tensioning kit with a lifting capacity of up to 147kg that enables the glass panels to be easily placed and fixed. For a quick, good-value, alternative solution the company’s range of glass joints can balance small difference between the glass panels weights thanks to the additional construction elements.

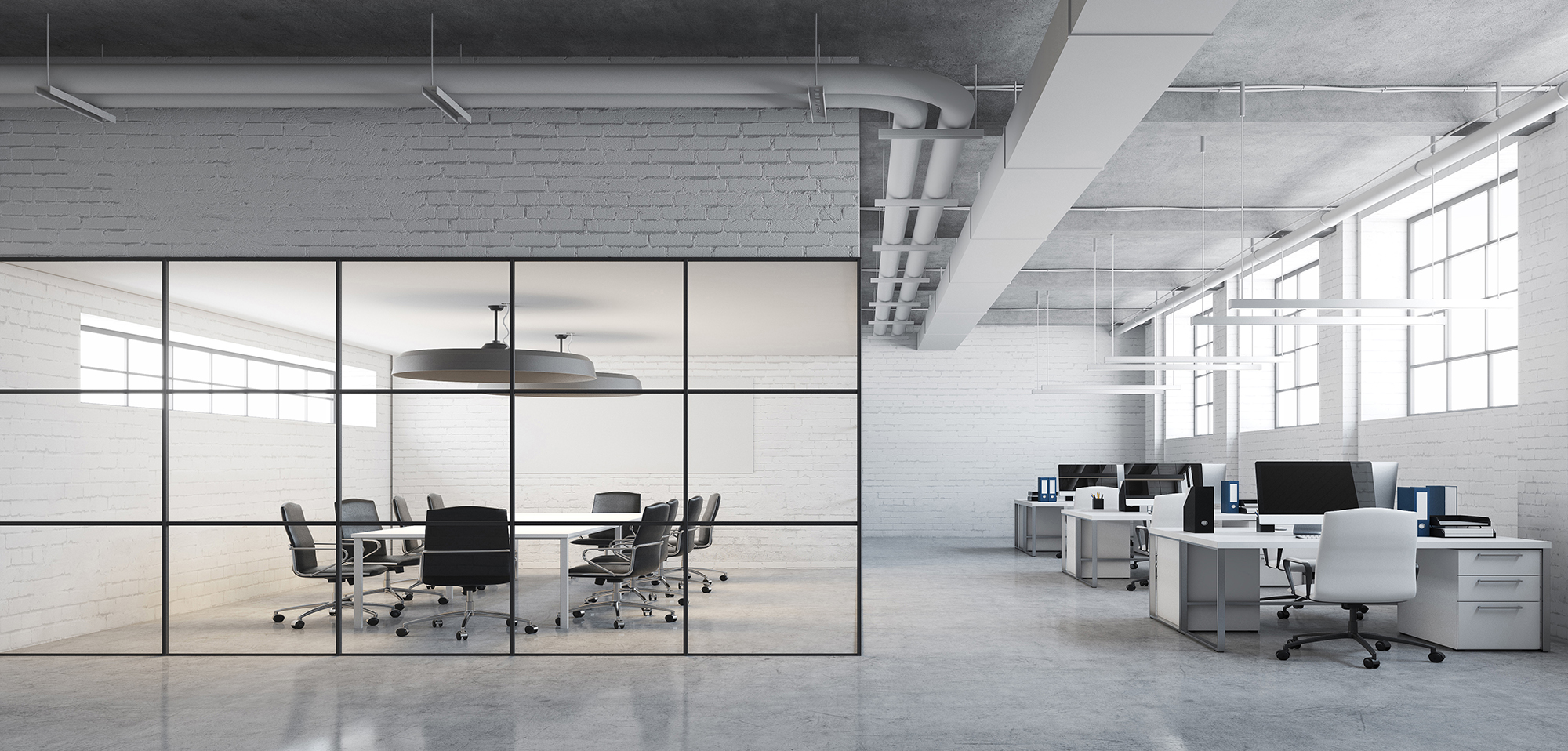

CRL have also introduced the New York Offfice System. with all the benefits of the Office XL and suitable for 8 to 28mm thick glass, the system features a matte black frame that brings a modern, city look to any interior design while still overcoming practical issues surrounding noise and privacy in open-plan offices. As all profiles are from the same series, the system is connectable via original angle connectors for a flexible partitioning system.
New York Office is easy to install and requires no special tools or glass cut-out for assembly; simply plug and play. Installed without notches, the entire system is screwed in and dry-glazed, minimising installation time and making it ideal for fitting retrospectively.
