Residential Tubular Daylighting Systems

Solatube Brighten Up® 160 DS

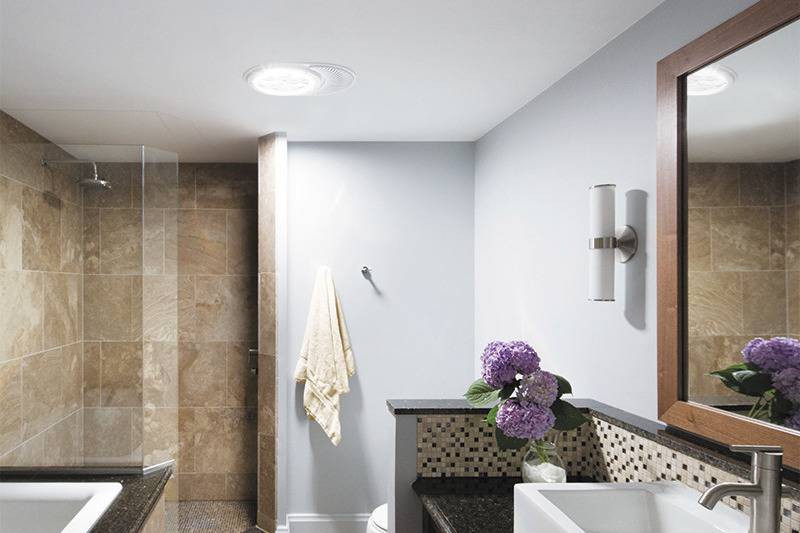

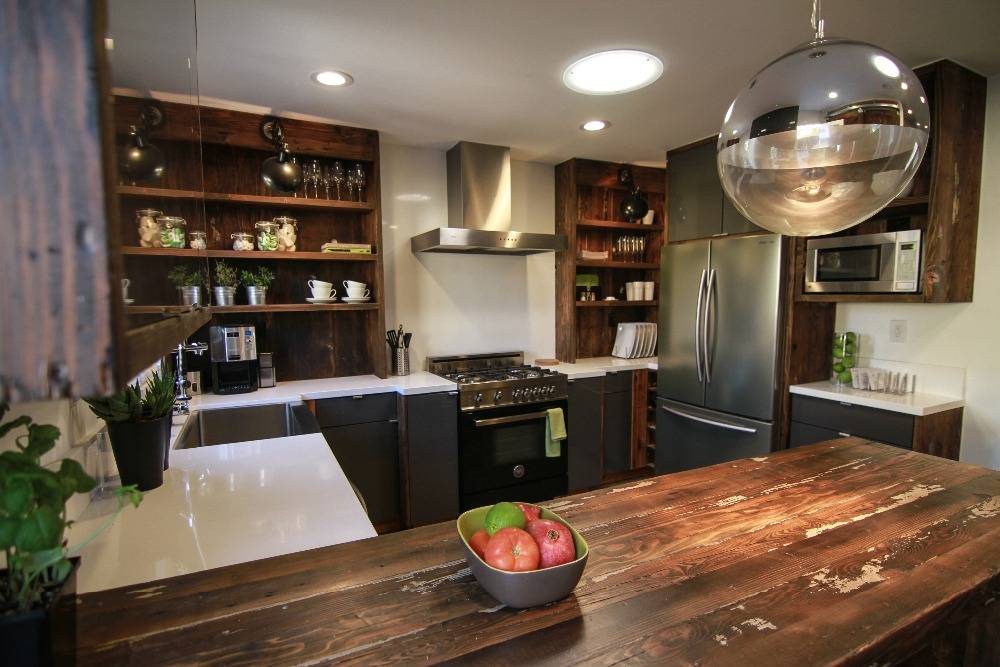

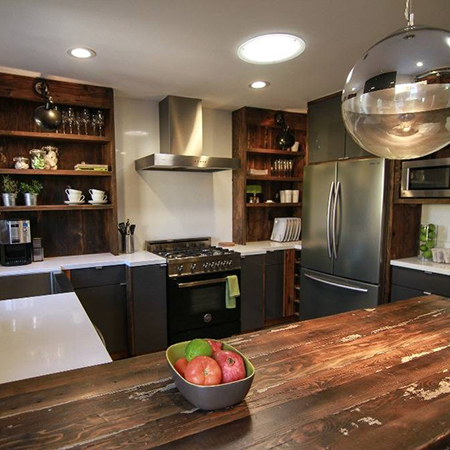

The Solatube Brighten Up® 160 DS is a compact tubular daylighting system designed to deliver energy-efficient natural daylight into smaller interior spaces. Ideal for residential applications, it is suited to bathrooms, hallways, kitchens and utility areas.

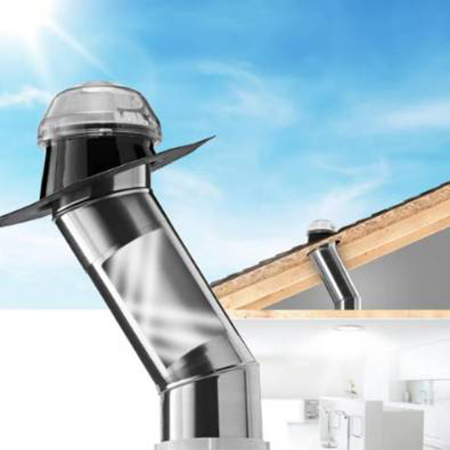

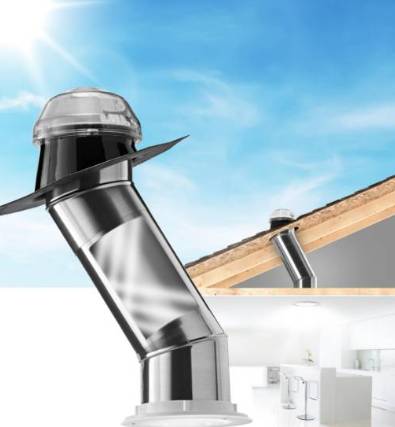

With a maximum tube length of approximately 6 metres, the system is designed for standard ceiling heights and areas where roof access is limited. Solatube’s patented technologies efficiently capture daylight at roof level and transfer it into interior spaces where natural light would otherwise not reach.

Typical Applications

Bathrooms, hallways, kitchens, utility rooms and other smaller residential spaces.

Key Features and Benefits

• Advanced light capture: LightTracker™ Reflector captures sunlight efficiently throughout the day, including at low angles.
• High-performance tubing: Spectralight® Infinity tubing delivers 99.7% specular reflectivity for maximum daylight transfer.
• Energy efficient: Reduces reliance on electric lighting during daylight hours.
• Quick installation: Modular components and roof-specific flashings support fast installation.
• Thermally efficient: Designed to minimise heat transfer and support building performance.
• Improved indoor environment: Enhances comfort and wellbeing with natural daylight.

Product Details

• Diameter: 250 mm / 10 inches
• Shape: Round or square ceiling options
• Materials: Acrylic, metal and polycarbonate
• Colour: White
• Maximum run: Up to approximately 6 m
• Warranty: Ten years
• Expected life: 20 years
• Red List materials: No
• Country of manufacture: United States

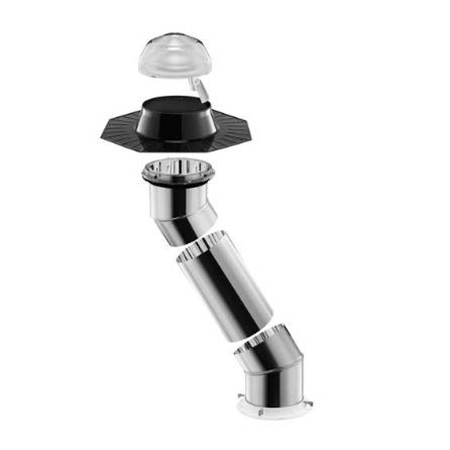

System Components

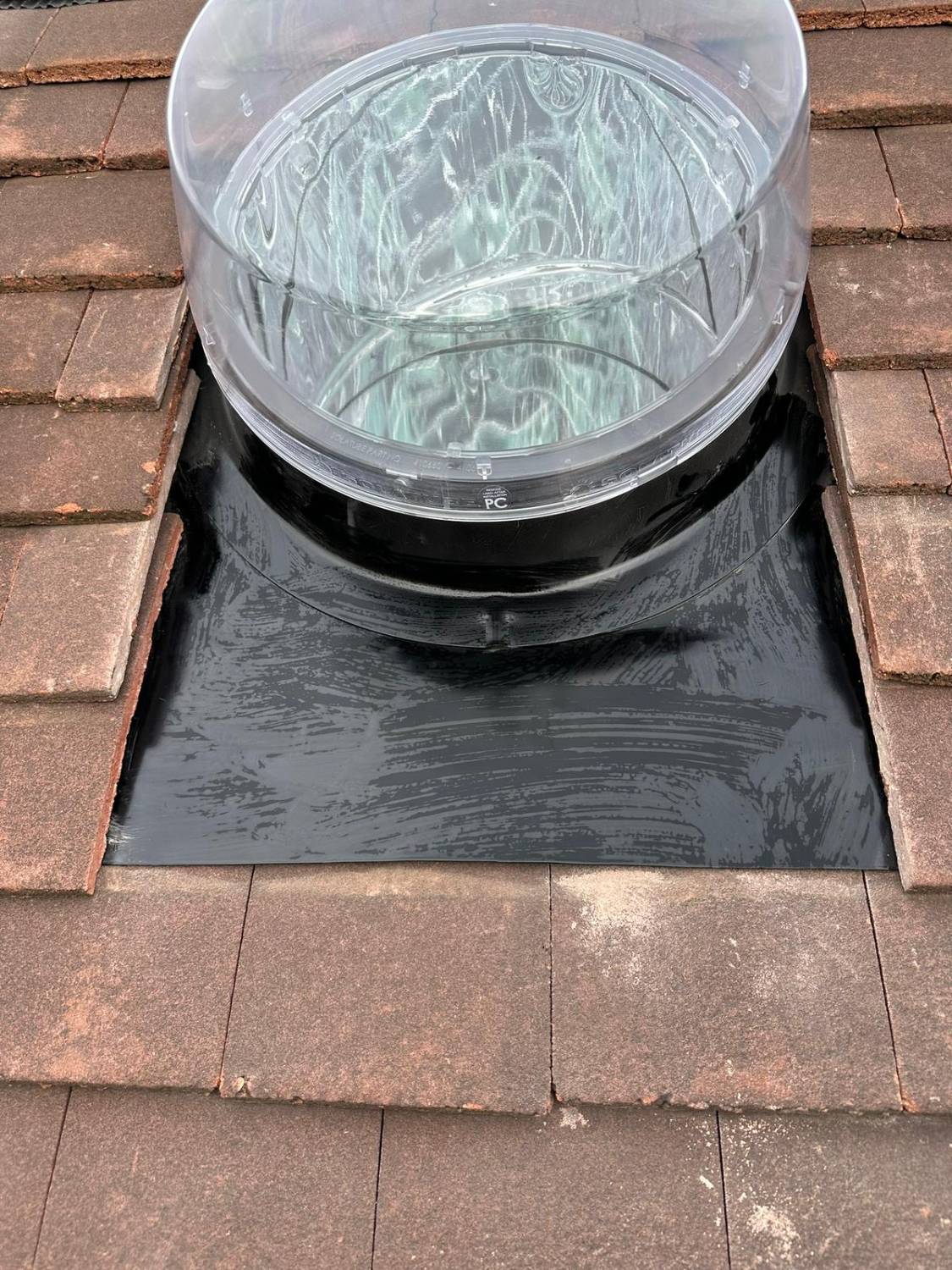

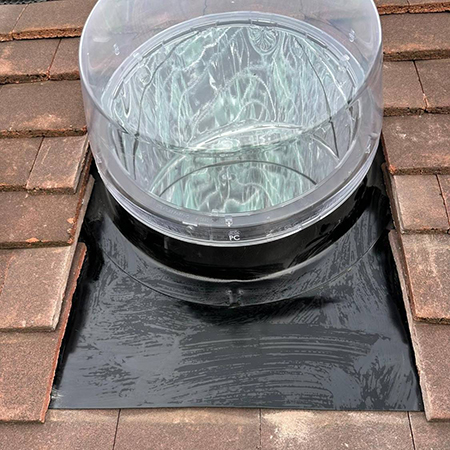

• Dome: Impact-resistant polycarbonate dome designed for efficient daylight capture.

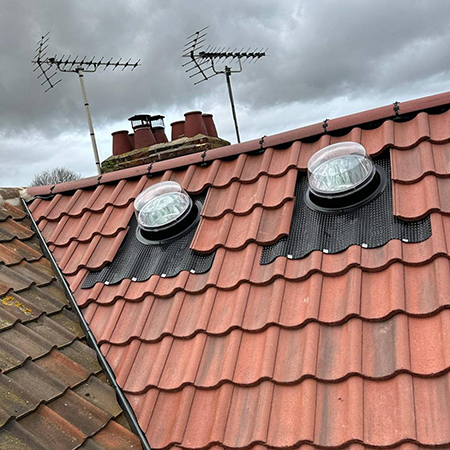

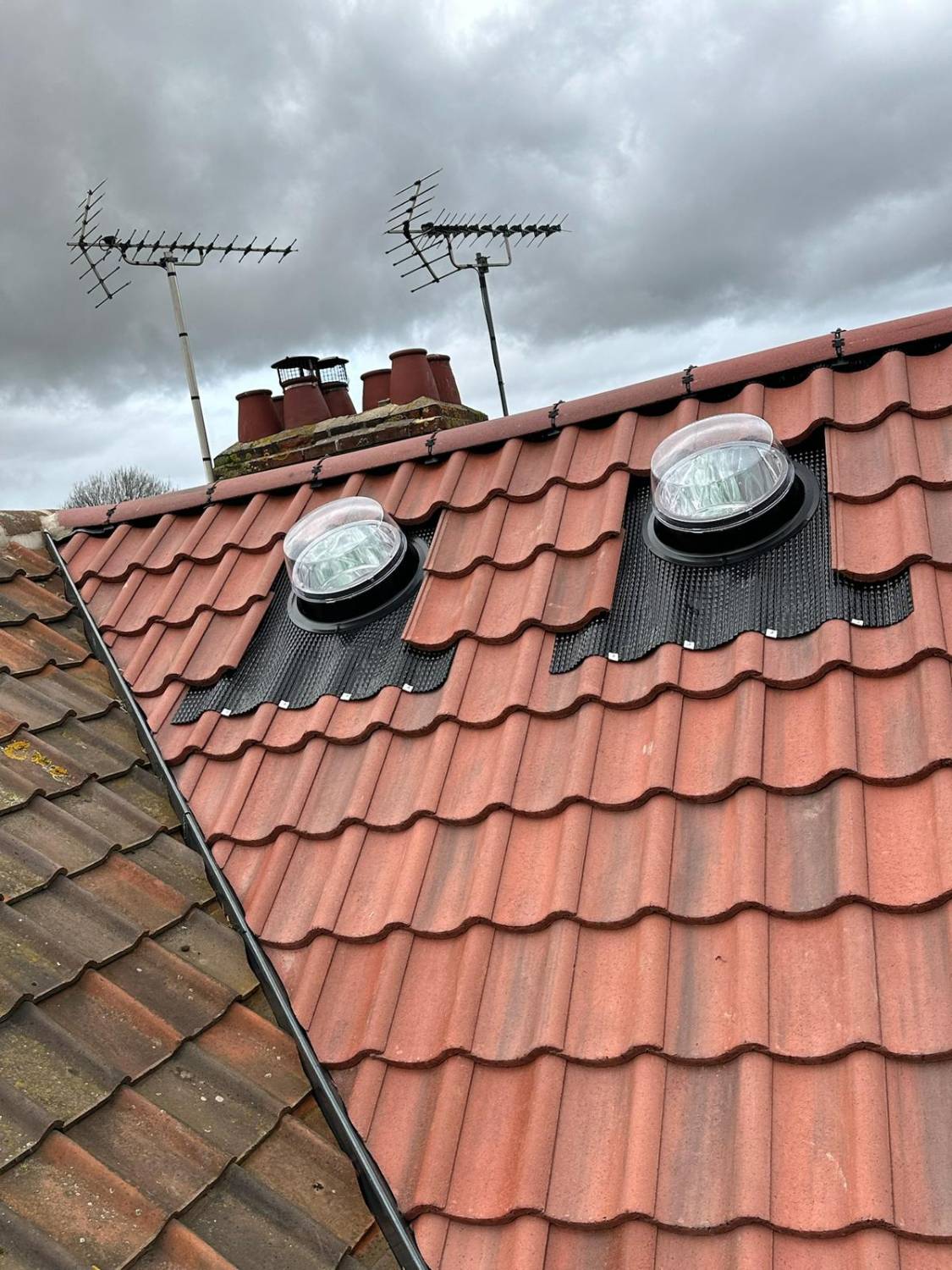

• Flashings: Compatible with pitched, flat and tiled roofs for watertight installation.
• Extension tubes: Adjustable tubing sections available to navigate around obstructions.

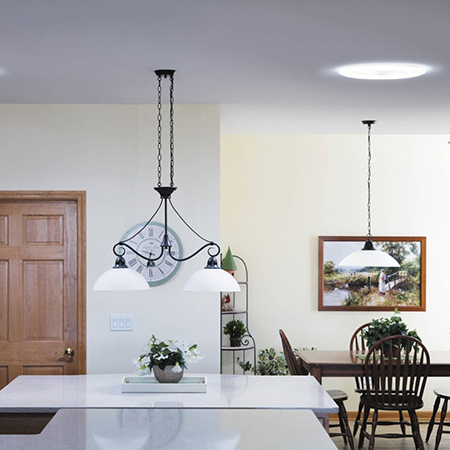

• Diffusers: Ceiling diffusers designed to evenly distribute daylight within the space.

Optional Accessories

• Daylight Dimmer for adjustable light control
• Light Add-On Kit for night-time or low-light use

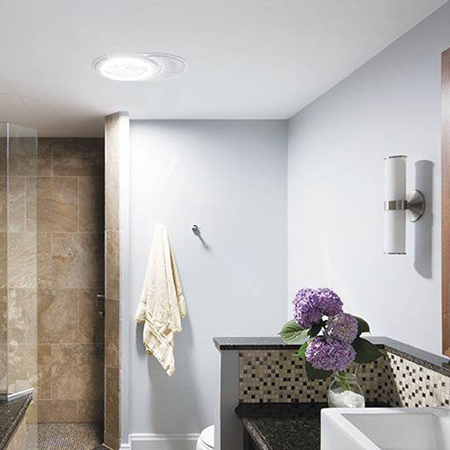

• Ventilation Kit for bathrooms and utility areas
• Additional glazing, dome protection and lens options available

Classification

• Uniclass: Pr_30_59_72_21 Daylight pipes
• CAWS: L1/326 Sun pipes; L10/48 Daylight pipes; L10/495 Daylight pipes

Solatube Brighten Up® 290 DS

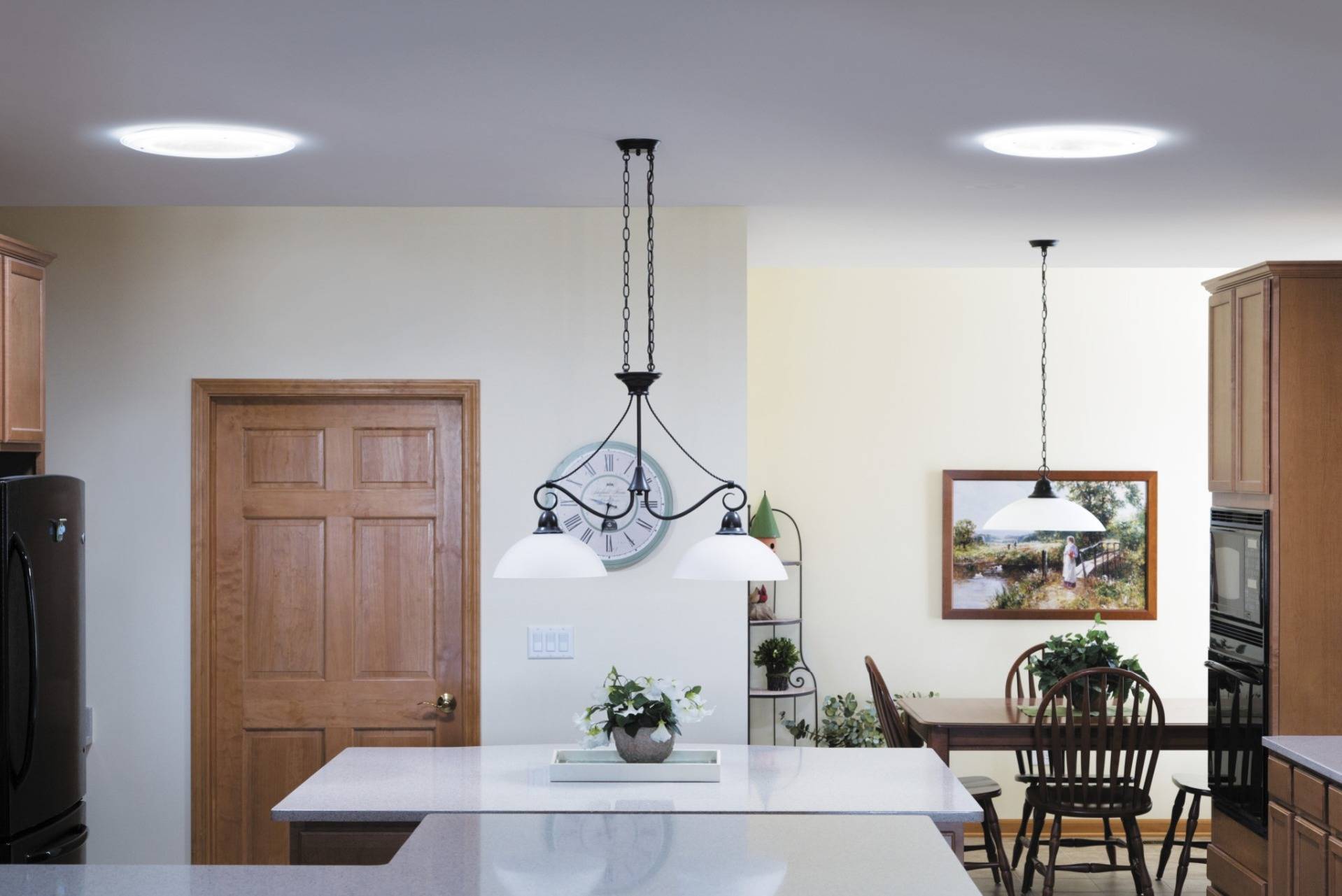

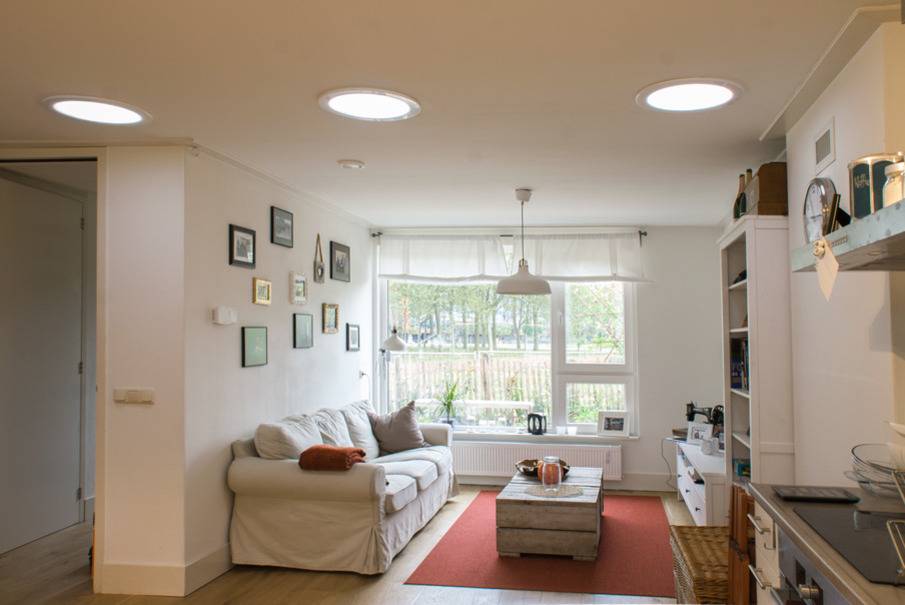

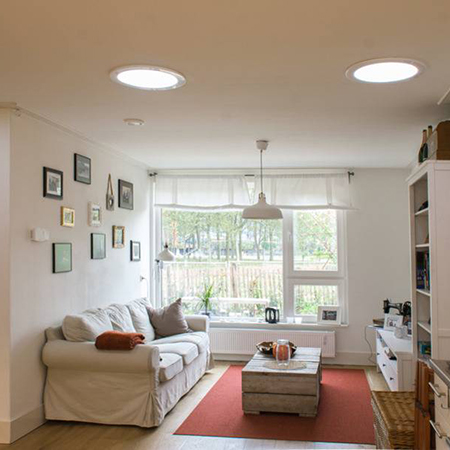

The Solatube Brighten Up® 290 DS is a 350 mm tubular daylighting system designed to deliver powerful, energy-efficient natural daylight into larger interior spaces. Suitable for residential and commercial applications, it is ideal for living rooms, kitchens, offices, classrooms and open workspaces.

With a maximum tube length of up to approximately 9 metres, the system is suitable for ceiling heights under 3 metres and can illuminate areas up to 300 square feet with consistent, uniform daylight.

Typical Applications

Residential: Living rooms, dining rooms, kitchens, bathrooms, bedrooms and garages.

Key Features and Benefits

• Advanced light capture: LightTracker™ Reflector helps capture sunlight throughout the day, including at low angles.
• High-performance tubing: Spectralight® Infinity tubing provides 99.7% specular reflectivity for maximum daylight transfer.
• Energy efficient: Reduces reliance on electric lighting during daylight hours.
• Flexible installation: Modular components and roof-specific flashings support quick, straightforward installation.
• Improved comfort: Natural daylight supports brighter, more comfortable and productive interior environments.
• BBA certified: Certified under BBA 25/7338, Product Sheet 1.

Product Details

• Diameter: 350 mm / 14 inches
• Shape: Round or square ceiling options
• Materials: Acrylic, metal and polycarbonate
• Finish: Brushed
• Maximum run: Up to approximately 9 m
• Warranty: Ten years
• Expected life: 20 years
• Red List materials: No
• Country of manufacture: United States

System Components

• Dome: Impact-resistant polycarbonate dome with optional inner shock dome.
• Flashings: Compatible with flat, pitched, tile and metal roofs.
• Extension tubes: Spectralight® Infinity tubing with angle adaptors available.
• Diffusers: Choice of ceiling fixtures designed to complement interior spaces.

Optional Accessories

• Daylight Dimmer for adjustable light control
• Light Add-On Kit for night-time or low-light use
• Ventilation Kit for bathrooms and utility areas
• Additional glazing, dome protection and lens options available

Classification

• Uniclass: Pr_30_59_72_21 Daylight pipes
• CAWS: L1/326 Sun pipes; L10/48 Daylight pipes; L10/495 Daylight pipes
