Stainless Steel Grating & Drainage Channels
Lang + Fulton

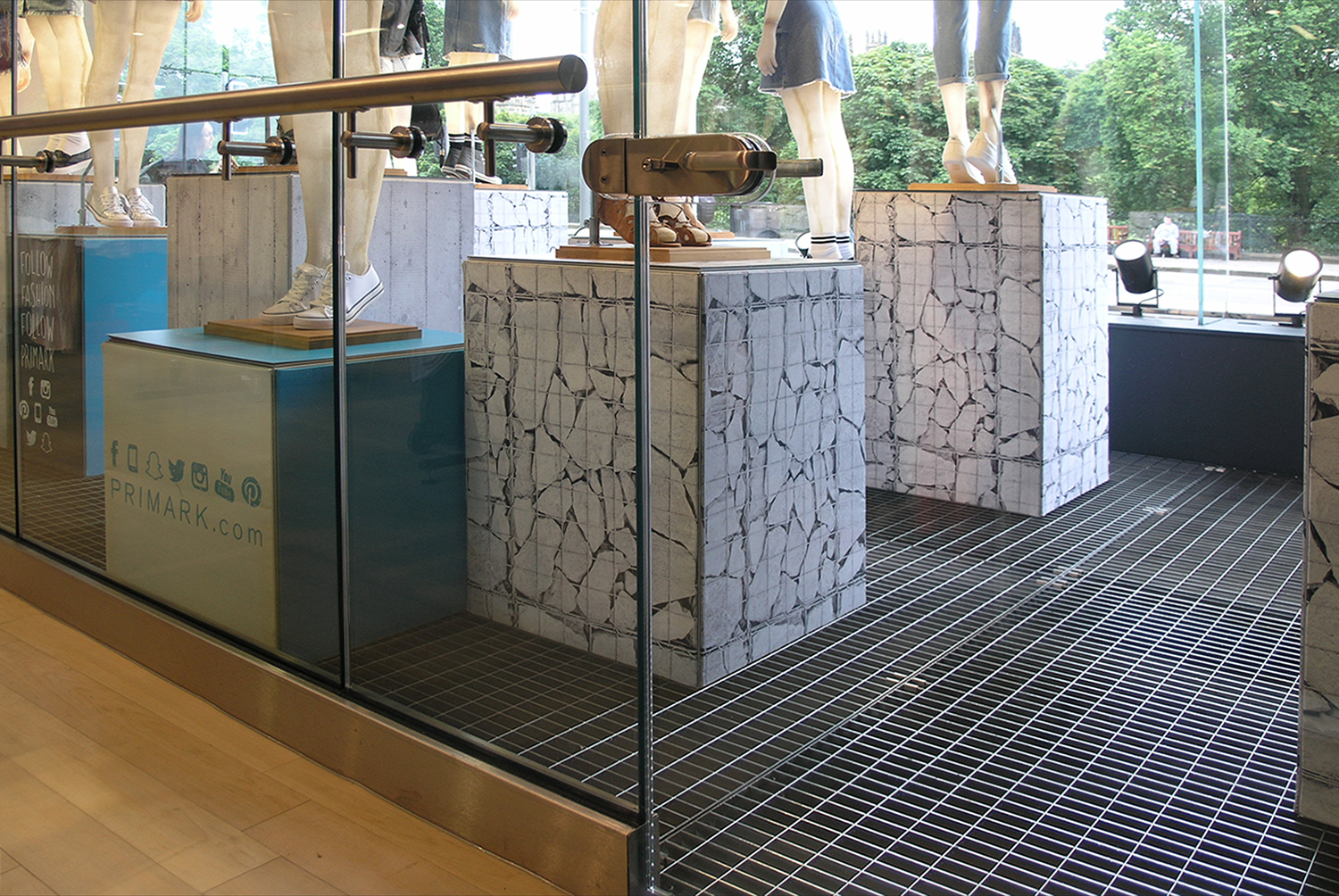

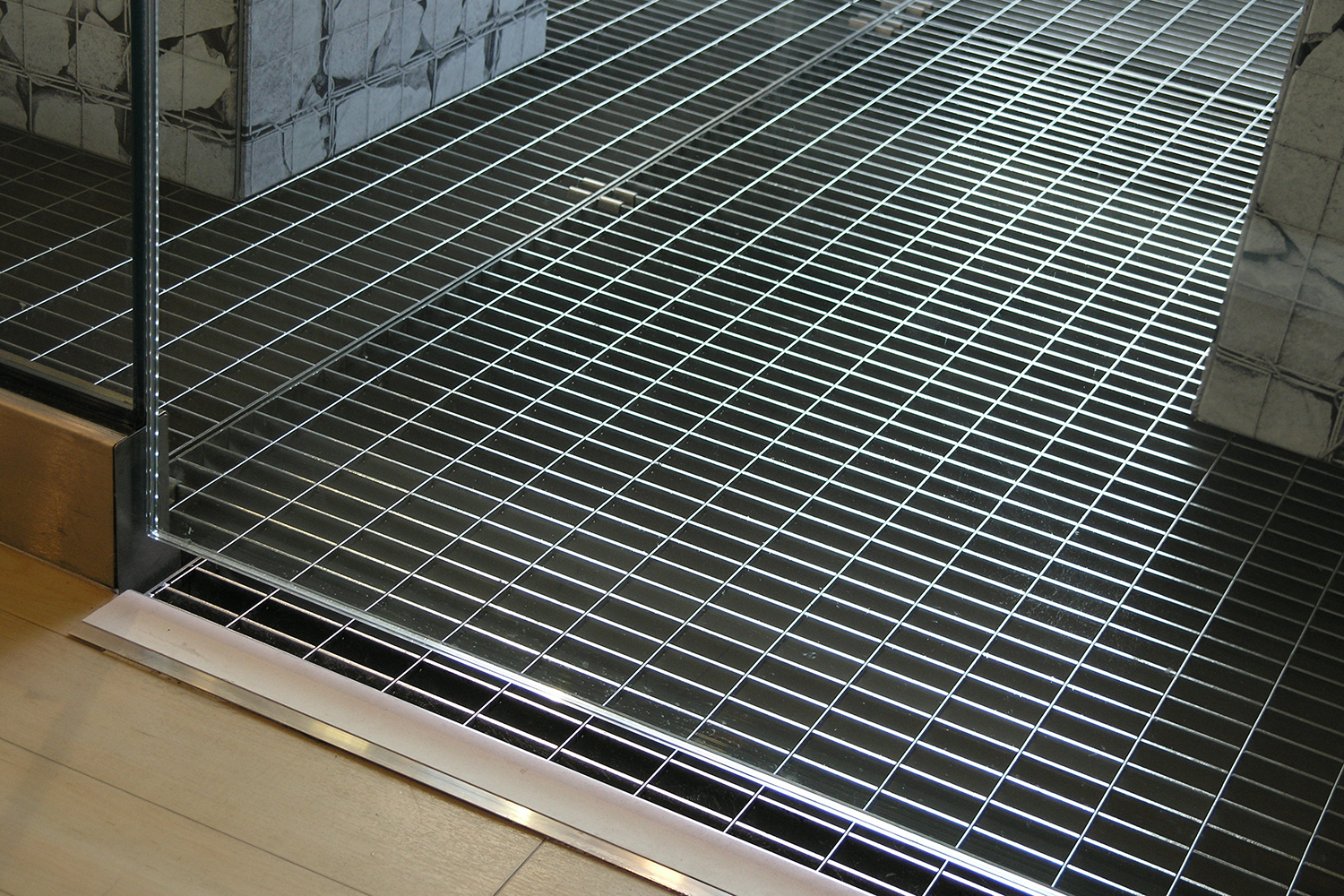

Stainless steel grating is appropriate for high quality flooring but can also be used for vertical applications such as balustrades and screening. Two different grades are available: AISI 304 for general purpose; AISI 316 and AISI 316L for external use, exposure to harsh substances or marine conditions.
All stainless-steel gratings are pickled and electropolished for low surface roughness and maximum corrosion resistance.
Type PL/SS: pressure locked gratings made exclusively from flat bars. Framed Panels are manufactured to custom sizes.
Mesh sizes (c/c): 25×25, 33×11, 55×11, 33×33, 33×66 and 66×11 mm
Bearing bar: from 20×2 mm to 70×3 mm; transverse bar from 10×2 mm to 10×3 mm
Type-PLS/SS: pressure locked gratings which made from either a serrated bearing bar and a flat transverse bar or with both bars serrated.
Mesh sizes (c/c): 33×11, 44×11, 55×11 and 66×11 mm
Bearing bar: from 25×2 mm to 40×3 mm; transverse bar from 10×2 mm to 20×4 mm
Type EF/SS: electrofused grating made from flat bearing bars and twisted square transverse bars. Panels can be manufactured in large sizes with a maximum width of 1000mm. The electrofusion process produces a material with complete integrity which allows it to be cut or shaped.
Standard mesh size (c/c): 34×38 mm*
Bearing bar 25×2 mm; transverse bar 4mm dia
*other mesh sizes can be ordered for minimum quantities of 600 sqm
Delta Range: The Delta range of louvred panels which is used for vertical applications can be made in stainless steel.
Box drains and fissure drains area also available in stainless steel.
Drainage channels
• Channels are made with a patented blocking and locking system in a variety of materials: compressed concrete, reinforced concrete and polymer concrete.
• Different sections of channel are available to suit flow rate and load bearing requirements.
• Channel covers are available in mild steel, stainless steel, cast iron or polymer.
