VISION 8000 Series Riser Doors

Profab Access

Introducing the visually striking, bi-directionally fire tested, VISION 8000 Series Riser Door. Suitable for use in joint-less plaster/plasterboard internal walls clad with materials such as ceramic tile, glass, stone and marble.

Form and function

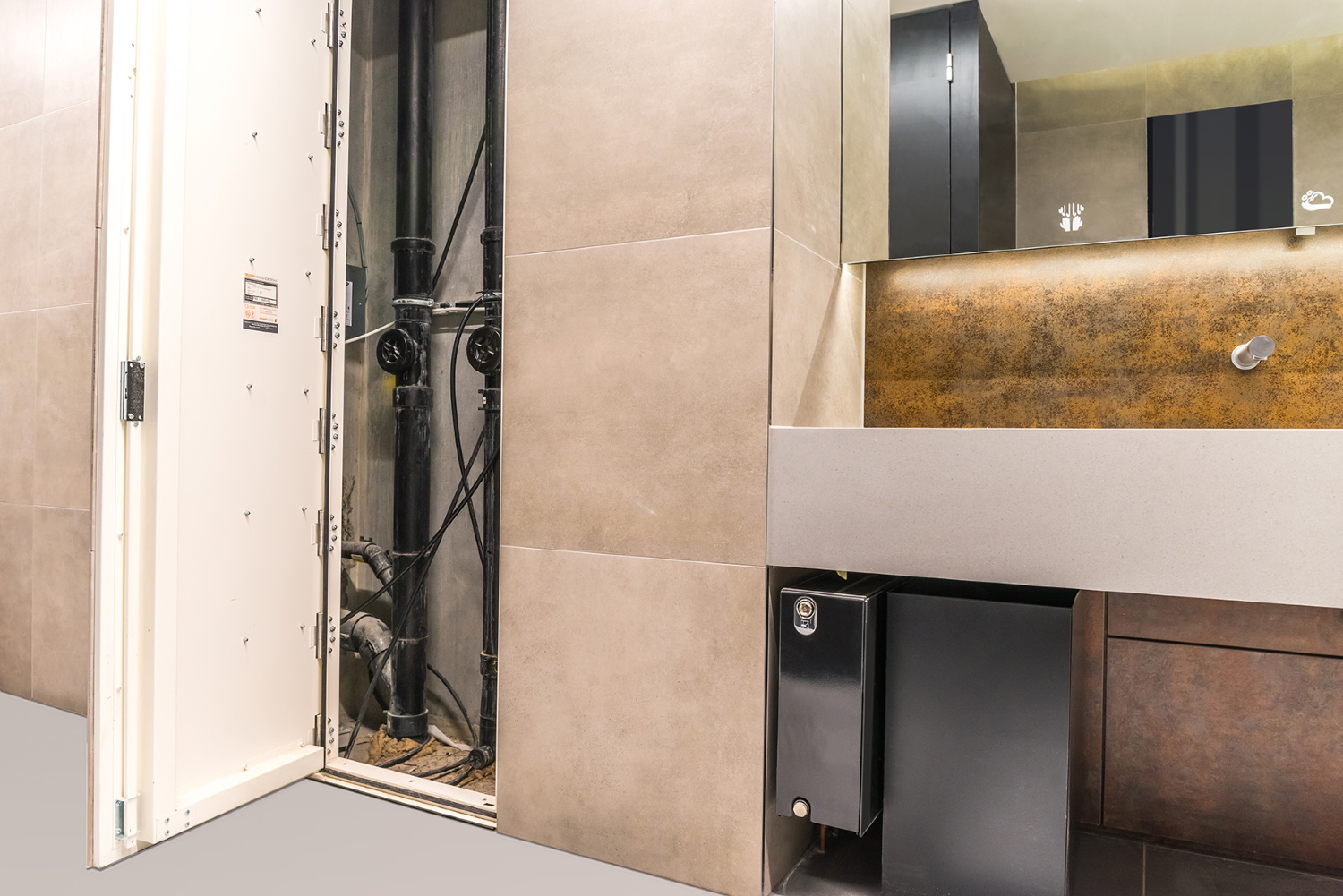

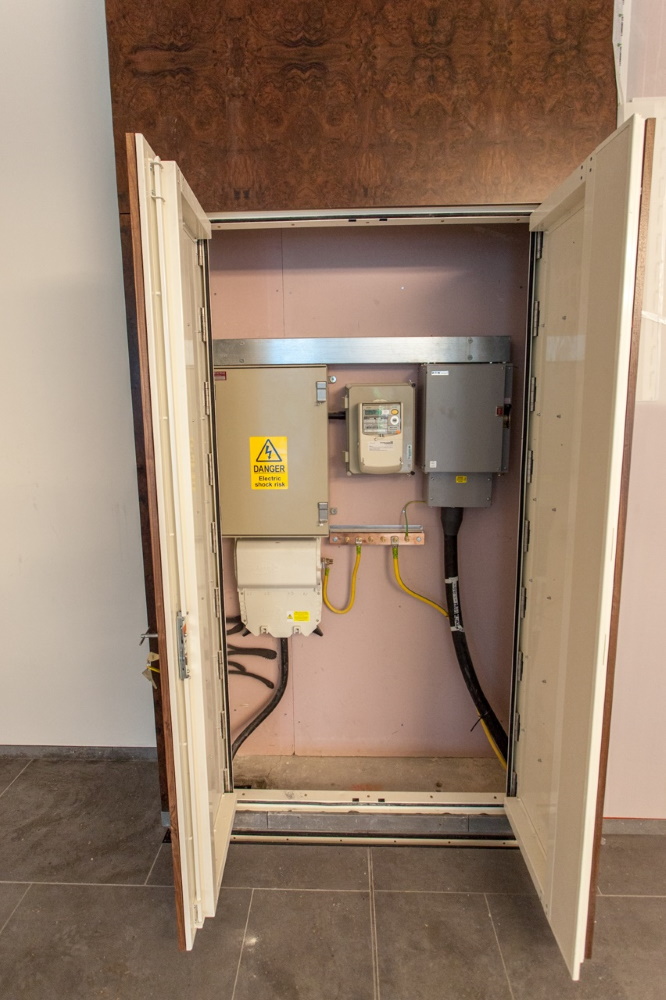

The VISION 8000 Series Riser Doors enable discrete access to building services concealed within the riser shaft behind visually impacting tiled walls. Architects and specifiers no longer have to decide whether to prioritise form over function. The VISION 8000 Series Riser Door offers an aesthetically pleasing, high performing, fire rated solution.

Certified fire rating

The VISION 8000 Series Riser Door is available with a 1-hour or 2 hour fire rating, verified by CERTIFIRE independent third party fire certification. Profab is the only manufacturer to bi-directionally fire test its riser doors.

Custom made to order

Every VISION 8000 Series Riser Door is custom made to meet the exact requirements of the tile module, up to a maximum thickness of 13mm.

Key Features and Benefits


CERTIFIRE third party certified fire rating up to 2 hours.
No impairment of fire resistance of the rated wall where the riser door is installed
30 dB rating tiled frame tiled door (TFTD) non-fire rated (without cladding)
33 dB rating tiled frame tiled door (TFTD) 2 hour fire rated (without cladding)
Designed and manufactured in the UK to ISO9001:2015 and ISO14001:2015
Tried and tested - installed in high profile buildings in the domestic and international market
Helpful and knowledgeable Technical team on hand to offer support.


A fire rating of up to 2 hours is achievable by fitting a mechanically fixed non-combustible material
Supplied with a powder coat finish matt RAL 9010M as standard.
Easy installation
Low maintenance.


Choice of single door (SD), double door (DD) or multi-leaf configurations
Different frame options to suit application and finish required – Concealed Tiled Frame (TF) /Exposed Edge Frame (EEF)
Concealed push catch (PC), Security key lock (SL), and 3 point lock (3PL) options available
Non-fire rated option available.

Typical applications:

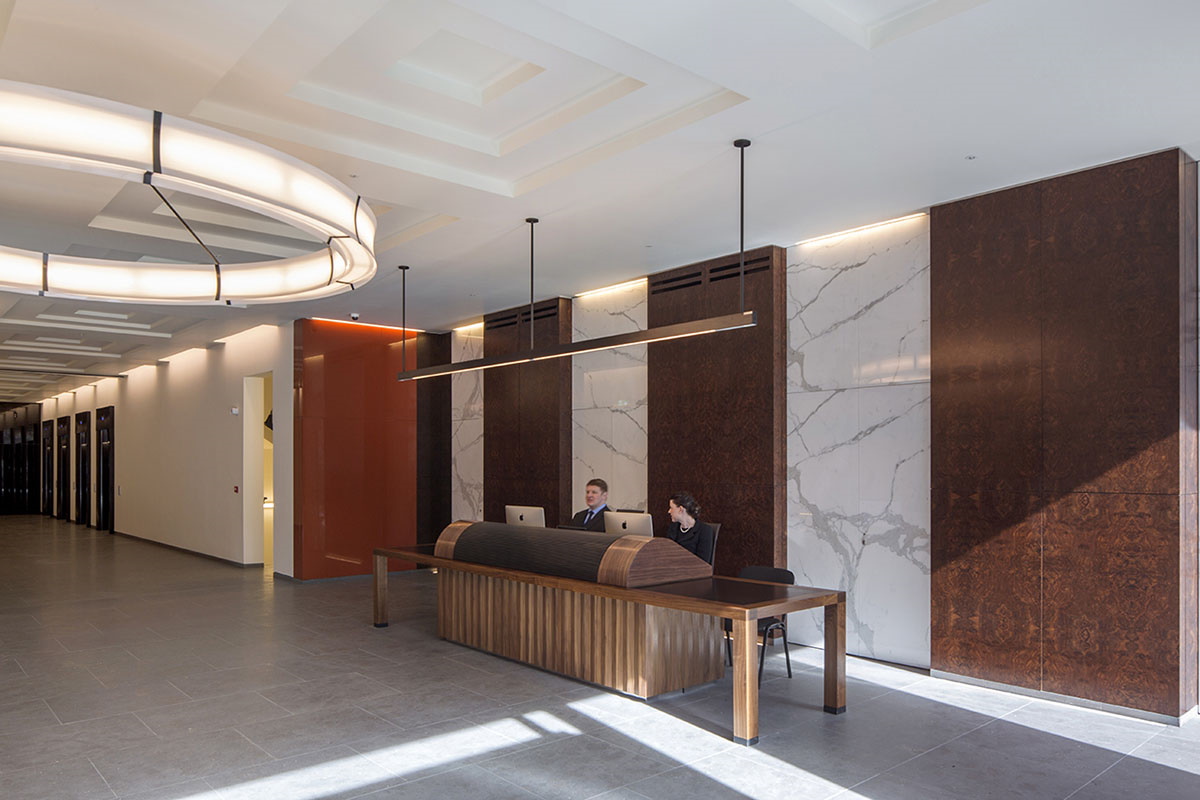

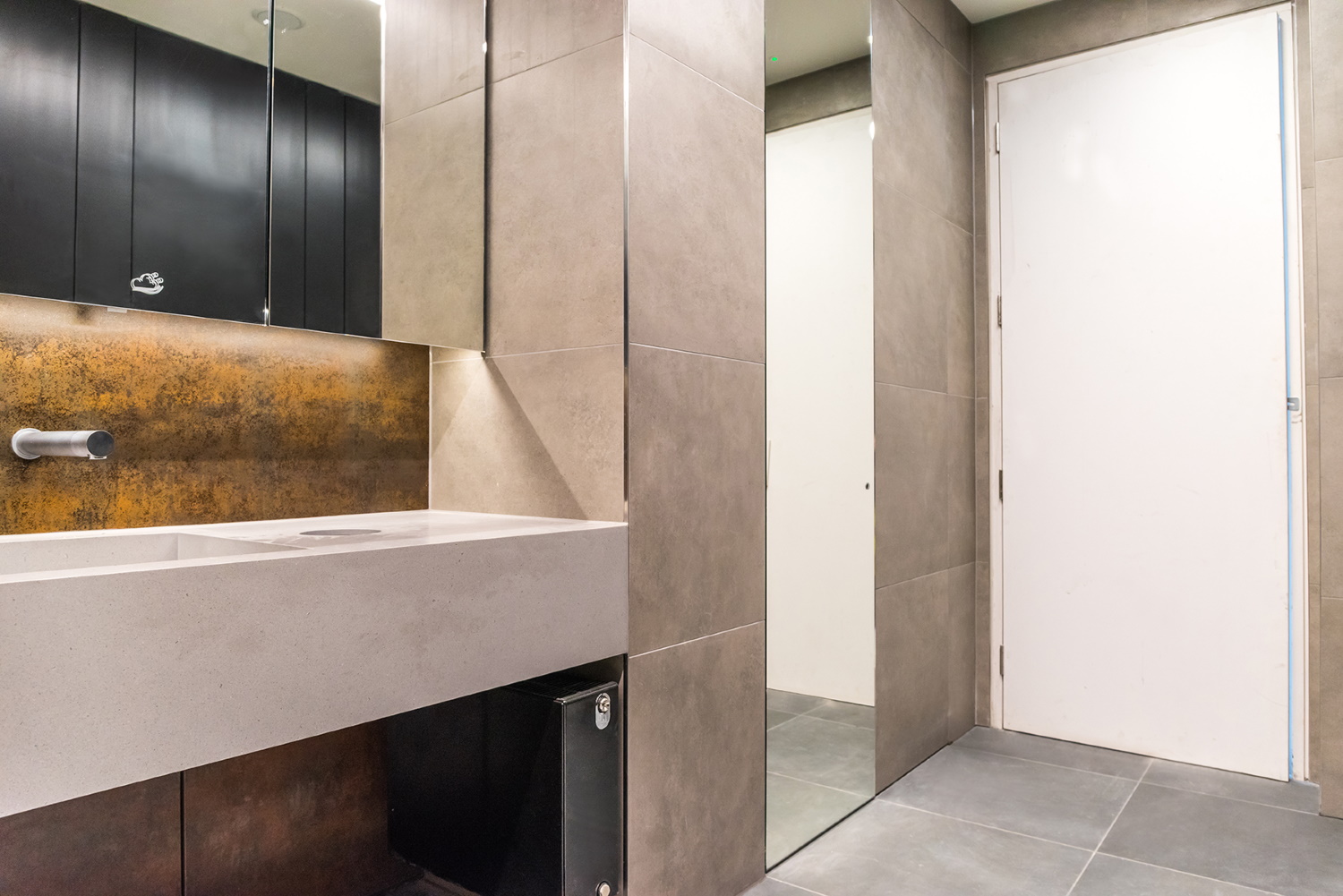

Decorated corridors, hotel receptions, bathrooms, shower rooms and kitchens in hotels, commercial and public buildings, offices and high-end residential properties.

The Range

VISION 8000 Series 1 Hour Fire Rated (1FR)
VISION 8000 Series 2 Hour Fire Rated (2FR)
VISION 8000 Series Non-Fire Rated (NFR)
