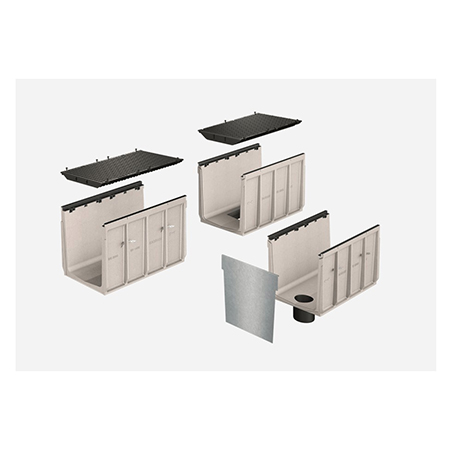

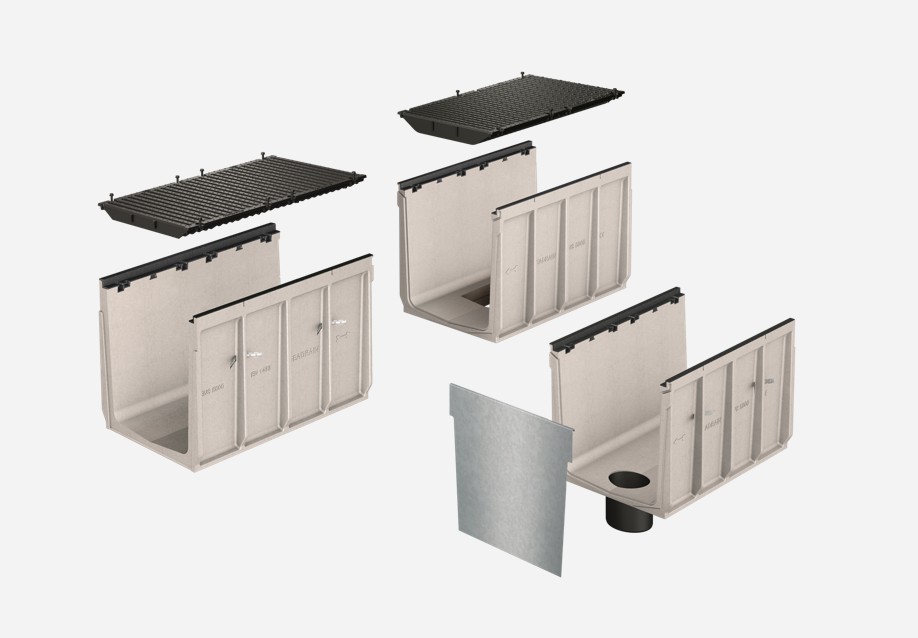

The MEADRAIN EN and ENS series are high-performance drainage channels engineered for applications subjected to very heavy traffic loads. The systems combine the lightweight properties of polymer concrete with reinforced cast iron edge protection, providing durability and load-bearing capacity up to Load Class F 900.

Key Features
• Suitable for all loading classes up to F 900.
• Manufactured from polymer concrete with integrated ductile cast iron rails.
• MEADRAIN EN features an L-shaped cast iron edge.
• MEADRAIN ENS features a Z-shaped cast iron edge.
• High resistance to:
    • Chemical substances
    • Salts
    • Acids
• Designed for a long service life under demanding operating conditions.

Typical Applications
The MEADRAIN EN/ENS systems are intended for environments requiring exceptional strength and reliability, including:
• Airports
• Railway stations
• Cargo handling areas
• Ports and harbour’s
• Highways and major roadways
• Industrial facilities

Grating Locking Options

PROFIX Rapid Locking System

The MEA PROFIX locking mechanism provides:
• Fast and economical installation
• Quick removal and replacement of gratings
• Simplified maintenance and channel cleaning
• Reduced installation time

4-Point Bolted Grating Locking System

For applications requiring maximum security:
• Gratings are securely fixed to the channel body using four bolted fixing points.
• Provides enhanced safety for higher load classes.
• Offers protection against vandalism and unauthorized removal.
• Recommended for heavily trafficked and high-use areas.

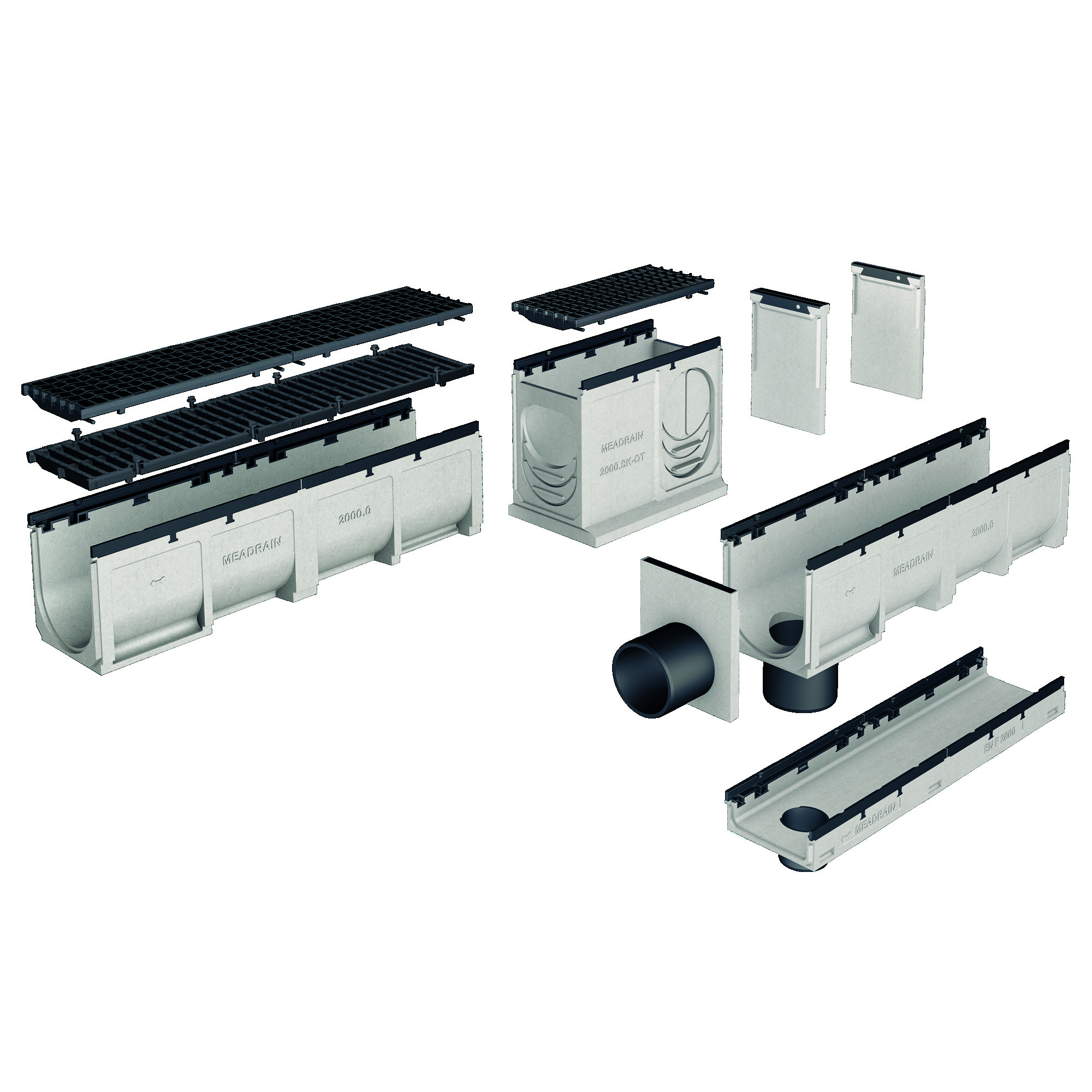

Available Channel Configurations
• Flat channels (without slope)
• Channels with a 0.5% longitudinal slope
• 5.0% stepped slope sections with transition pieces
• Standard lengths:
    • 500 mm
    • 1000 mm

These features make the MEADRAIN EN/ENS series particularly suitable for critical infrastructure projects where high load capacity, durability, and secure grating retention are essential.
