RECYFIX HICAP

Hauraton Ltd

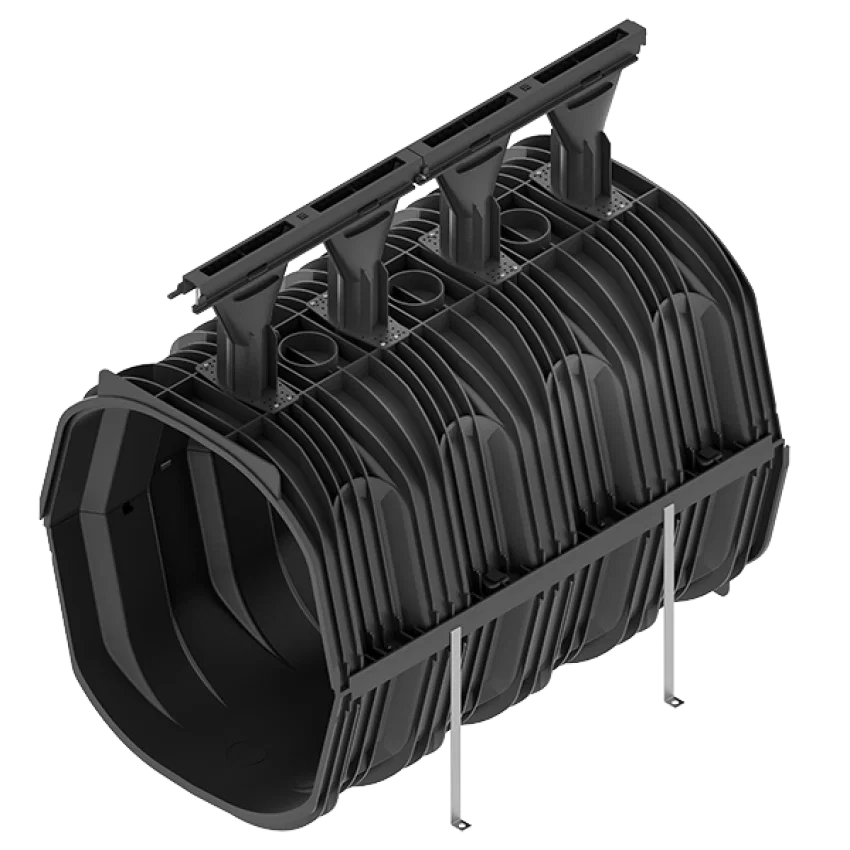

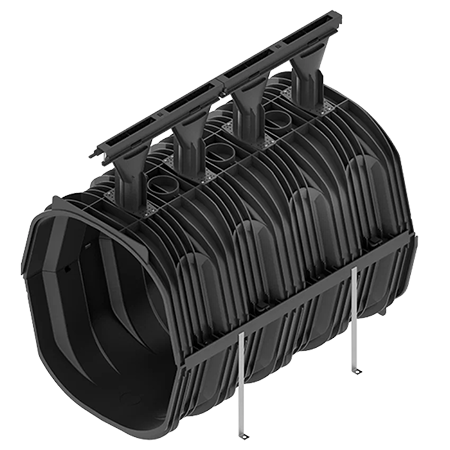

RECYFIX HICAP F is a high-capacity slot drainage and retention system designed for industrial, commercial and infrastructure environments subject to extreme loads and dynamic forces.

Manufactured from impact-resistant modified polypropylene with a robust spheroidal ductile iron slotted top, RECYFIX HICAP F combines high hydraulic performance with load-bearing capability up to F 900. The system is suitable for demanding applications including airports, ports, container terminals, industrial and logistics facilities and other heavily trafficked areas.

The system's high hydraulic capacity enables large volumes of surface water to be collected and retained, helping to control discharge into sewer and drainage networks. RECYFIX HICAP F 10000, for example, can retain up to 443 litres per metre.

Key features and benefits:

• Load classes up to F 900 for areas subject to extreme loads and dynamic forces
• High hydraulic capacity for draining large surface areas
• Can provide both surface drainage and water retention within a single system
• Lightweight channel construction for easier handling and installation
• Reduced requirement for trash boxes and pipe connections, helping to minimise installation time and costs
• Highly resistant to frost, de-icing salts and UV radiation
• Narrow, uniform slot design with KTL-coated ductile iron tops
• Integrated tongue-and-groove joint for simple and precise channel alignment
• Channel body manufactured from recycled composite material and recyclable after use
• Available in a range of system sizes from 1000 to 10000

Flexible system design

RECYFIX HICAP F can be configured to meet individual project requirements. Multiple system sizes can be combined within a channel run to create a level invert or stepped-fall configuration, allowing efficient drainage even where the system is installed on level ground with a 0% surface slope.

Trash boxes can be positioned at suitable points along the channel run to connect the system to sewer or other drainage networks.

Typical applications:

• Airports
• Ports and container terminals
• Industrial facilities and yards
• Logistics and distribution centres
• Commercial developments
• Areas subject to heavy traffic and high dynamic loads

Find out more about RECYFIX HICAP F
