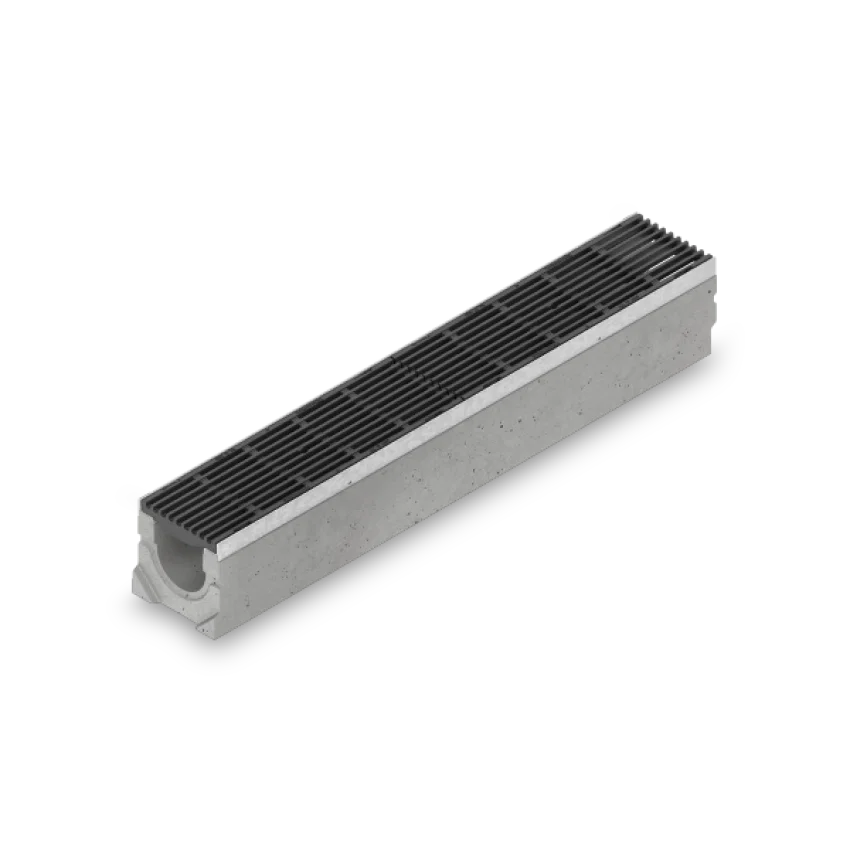

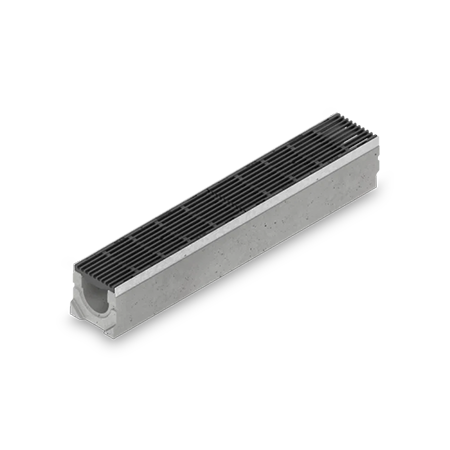

FASERFIX KS
Hauraton Ltd
FASERFIX KS is a high-strength linear drainage system designed for public and commercial areas where durability, load-bearing performance and design flexibility are required.
Manufactured from fibre-reinforced concrete incorporating sustainable basalt fibres, FASERFIX KS provides high levels of strength and resistance for demanding drainage applications. The system is suitable for load classes from A 15 up to F 900 according to EN 1433, with extra-thick channel sidewalls providing increased lateral stability in areas subject to heavy loads.
Available in nominal widths from 100 to 300 mm, FASERFIX KS can be combined with a wide selection of gratings in different materials and designs, allowing the drainage system to be tailored to the performance and aesthetic requirements of individual projects.
Key features and benefits:
• Fibre-reinforced concrete channels incorporating sustainable basalt fibres
• Load classes from A 15 up to F 900 according to EN 1433
• Extra-thick sidewalls for high lateral stability and additional security under heavy loads
• Available in nominal widths of 100, 150, 200 and 300 mm
• 20 mm x 20 mm angle housing available in galvanised or stainless steel
• Corrosion-resistant angle housing for long-term durability
• Wide selection of gratings for greater design flexibility
• Grating options include the FIBRETEC composite grating and METROPOLIS ductile iron design
• SIDE-LOCK boltless locking system can provide up to 90% time savings compared with conventional fixing
• Central bolt and bar fixing can be used alongside SIDE-LOCK for additional safety, stability and security
• Additional protection against longitudinal movements
• Fire resistance class A1 according to DIN 4102
SIDE-LOCK boltless locking system
FASERFIX KS incorporates HAURATON's SIDE-LOCK system, allowing gratings to be securely locked into position without bolts or specialist tools. Once correctly positioned on the channel, the grating can be locked into place using foot pressure, helping to reduce installation time while providing secure fixing under traffic loads and longitudinal or transverse movements.
The system also simplifies maintenance, with gratings easily accessible when cleaning or inspection of the drainage channel is required.
Flexible grating options
FASERFIX KS is compatible with numerous grating designs manufactured from materials including ductile iron, composite, galvanised steel and stainless steel. Options include FIBRETEC and METROPOLIS design gratings, perforated gratings, mesh gratings and longitudinal bar gratings, allowing drainage performance to be combined with the required visual finish.
Typical applications:
• Public spaces
• Commercial developments
• Retail environments
• Car parks and parking areas
• Roads and trafficked areas
• Industrial and loading areas
• Areas requiring high-strength drainage with an aesthetic finish
