RECYFIX MONOTEC ULTRA

Hauraton Ltd

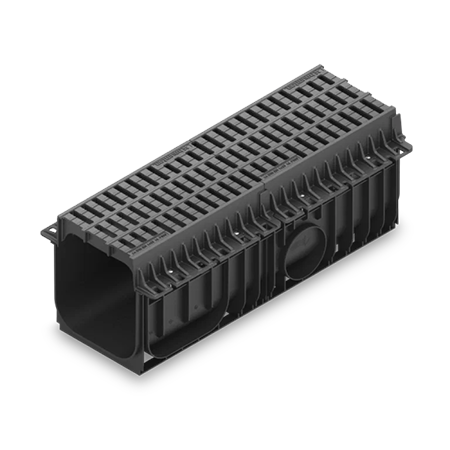

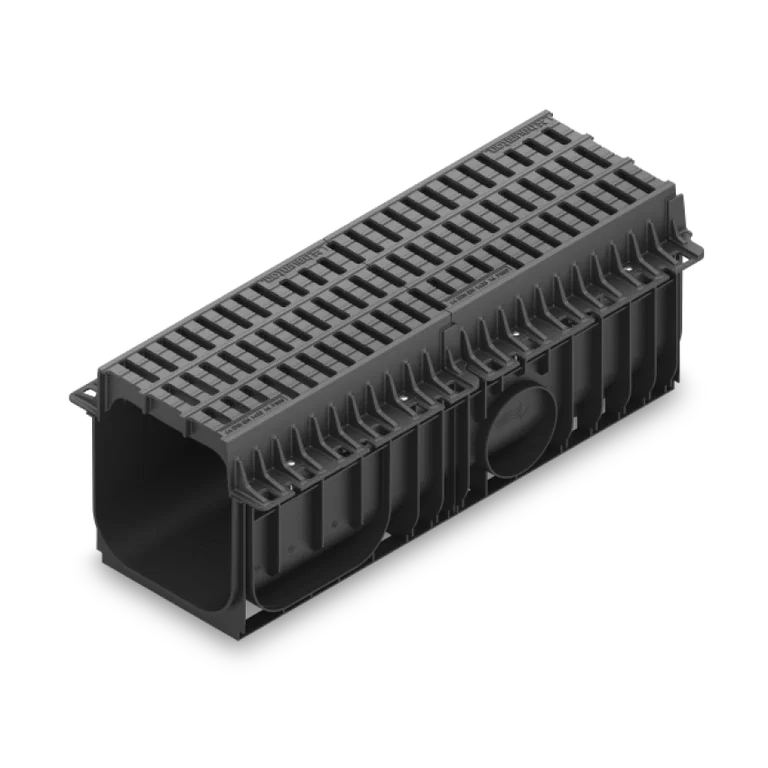

RECYFIX MONOTEC ULTRA is a high-performance monolithic drainage system designed for heavily trafficked areas and applications subject to extreme loads.

Combining a lightweight recycled polypropylene (PP) channel body with an integrated spheroidal ductile iron grating, RECYFIX MONOTEC ULTRA provides a robust surface drainage solution for demanding infrastructure, industrial and commercial environments. The system is suitable for load classes up to F 900, making it particularly suited to areas exposed to high traffic loads and dynamic forces.

The monolithic construction permanently connects the ductile iron grating to the channel body, creating a secure and durable drainage unit. The design eliminates separate gratings and locking components, helping to simplify installation and reduce maintenance requirements.

Key features and benefits:

• Load classes up to F 900 for demanding heavy-duty applications
• Monolithic construction with permanently integrated spheroidal ductile iron grating
• Lightweight recycled polypropylene (PP) channel body
• High hydraulic performance for effective surface water drainage
• Robust construction suitable for areas exposed to high traffic and dynamic loads
• Resistant to frost and road salt
• Resistant to UV radiation, corrosion and chemicals
• Lightweight channel construction simplifies handling and installation on site
• Integrated grating eliminates the requirement for separate locking components
• Secure monolithic design helps reduce maintenance requirements
• Recycled material contributes to a more resource-efficient drainage solution

Monolithic construction

RECYFIX MONOTEC ULTRA combines the channel and grating within a single drainage unit. The spheroidal ductile iron grating is permanently connected to the recycled PP channel body, providing a robust system without removable gratings or separate locking mechanisms.

This construction helps provide high levels of operational safety in areas exposed to heavy traffic while simplifying installation and ongoing maintenance.

Lightweight and durable

The recycled polypropylene channel body combines low weight with high resistance to environmental and chemical influences. Its lightweight construction makes the drainage channels easier to transport, handle and install compared with heavier conventional systems, while retaining the performance required for demanding applications.

The material is resistant to frost, road salt, UV radiation, corrosion and chemicals, supporting long-term use in exposed external environments.

Typical applications:

• Airports
• Ports and container terminals
• Logistics and distribution centres
• Industrial facilities and yards
• Roads and heavily trafficked areas
• Commercial developments
• Areas subject to high wheel loads and dynamic forces
