Structural Insulated Panels

Kingspan Insulation

Structural Insulated Panels - Intelligent design for a smart future.

Timber is traditionally the most widely used building material in the world. It is easy to handle, natural and brings flexibility to design. Structural Insulated Panel (SIP) technology is the next generation of timber based construction.

TEK Building System:

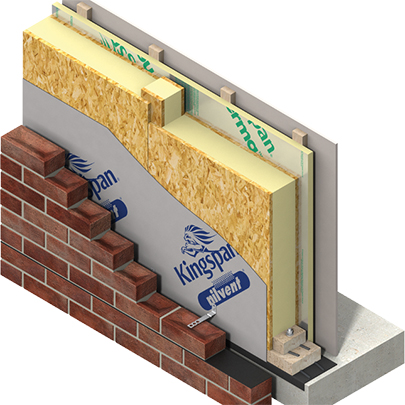

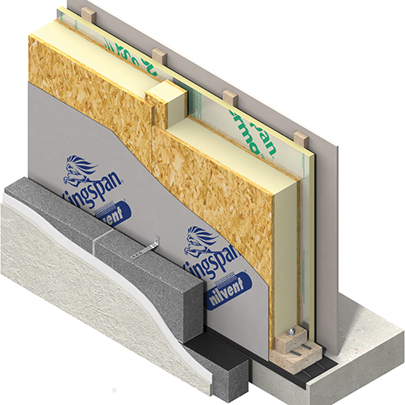

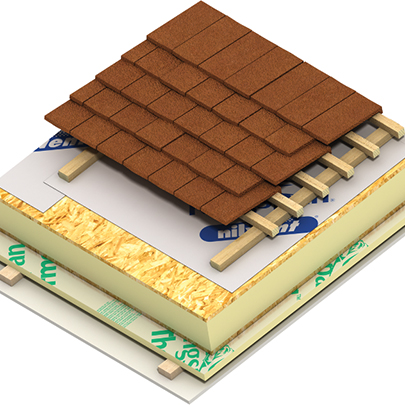

The TEK Building System comprises 142 mm or 172 mm thick Structural Insulated Panels (SIPs) with a high performance fibre-free rigid urethane insulation core, sandwiched between two layers of Oriented Strand Board type 3 (OSB/3). It is used to construct walls and roofs, and intermediate floors using I-beams or open web joists.

• Can achieve whole wall and roof U-values of 0.20 W/m2K or better
• Can achieve air leakage levels as good as approximately 1 m3/hour/m2 at 50 Pa
• Recognised by major building warranty providers such as Building Life Plans and NHBC
• Quick to build - internal works can start earlier
• Can create efficient buildings with very low fuel bills
• Minimal on-site waste

TEK Building System | Kingspan GB

TEK Cladding System:

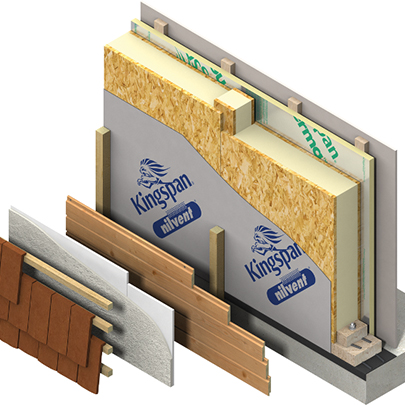

The TEK Cladding Panel comprises 142 mm or 172 mm thick Structural Insulated Panels (SIPs) connected with a unique jointing system. The panels themselves consist of a high performance rigid urethane insulation core, sandwiched between two layers of Oriented Strand Board type 3 (OSB/3).

• Can achieve whole wall U-values of 0.20 W/m2K or better
• Can achieve low air leakage rates
• Quick to build - internal works can start earlier
• Minimal on-site waste
• Can provide thinner full wall constructions than conventional steel framed systems
• Can create highly energy efficient buildings with very low fuel bills

TEK Cladding Panel | Kingspan GB
