Vacuum Insulation

Kingspan Insulation

Kingspan OPTIM-R is a vacuum insulation panel (often called a VIP). It is an optimum performance insulation product which provides a high level of thermal efficiency with minimal thickness.

Unique Benefits of the Kingspan OPTIM-R Systems:
• Design (aged & edge effect) thermal conductivity of 0.007 W/m∙K
• Provides an insulating performance that is up to five times better than other commonly available insulation materials
• High levels of thermal efficiency with minimal thickness
• Vacuum insulation panels are over 90% (by weight) recyclable
• Ideal for constructions where a lack of construction depth or space is an issue
• Available in a range of sizes and thicknesses
• Suitable for use in a variety of OEM applications
• If installed correctly and protected from damage and penetration, can provide reliable long-term thermal performance over the lifetime of the building.

Kingspan OPTIM-R comprises a micro-porous core, which is evacuated, encased, and sealed in a thin, gas-tight envelope, giving outstanding thermal conductivity and the thinnest possible solution to insulation problems. With a design (aged & edge effect) thermal conductivity (λ) of 0.007 W/m.K, it provides an insulating performance that is up to five times better than other commonly available insulation materials.

All Kingspan OPTIM-R systems are delivered with Kingspan Insulation’s optimum technical service, including expert technical advice, detailed drawings with every project, site visits and tool box talks, installation advice and guidance all backed up by a professional, efficient customer service.

Kingspan OPTIM-R is available in systems for differing thermal insulation applications, both new-build and refurbishment. These systems incorporate Kingspan OPTIM-R flex and Kingspan OPTIM-R fix panels, which are used as infill panels and to mechanically fix through, respectively. These systems are accompanied by a full design service to ensure that Kingspan OPTIM-R is used as effectively as possible in the space available. The following systems are available:

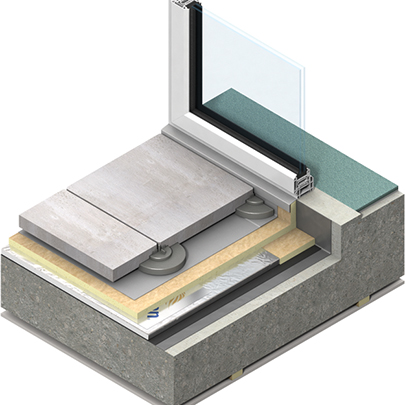

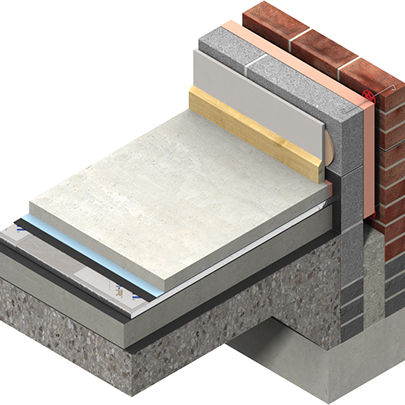

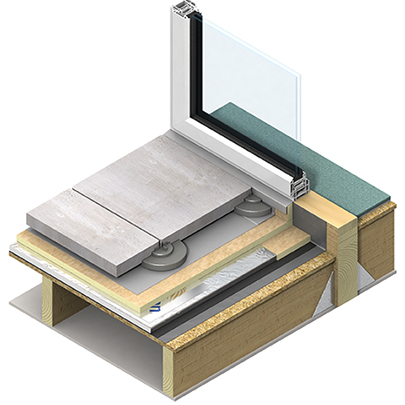

• Kingspan OPTIM-R Flooring System

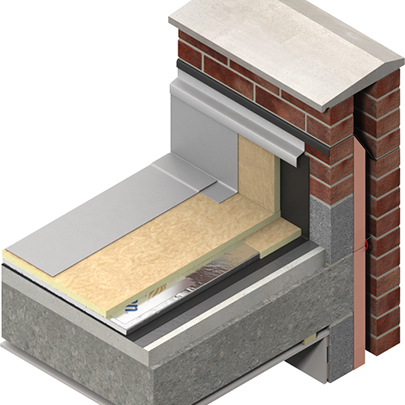

• Kingspan OPTIM-R Roofing System
