Aluminium Sliding & Bi-Folding Doors

Reynaers Aluminium Ltd

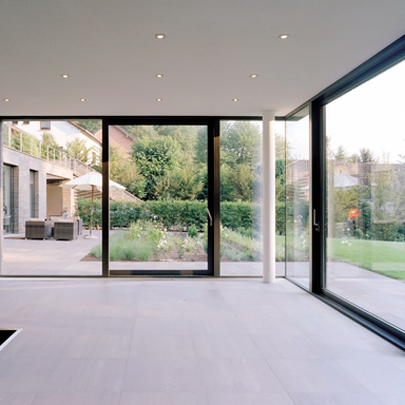

Reynaers aluminium sliding doors and sliding folding doors are the perfect solution for maximising space and minimising the barriers between the inside and out. A number of opening options are available, from mono-rail to multi-rail that allows for very large openings and a folding solution as well as the ability to open both manually and automatically, the choices are endless and provide the ultimate for maximising space.

Opening options for aluminium sliding doors
A monorail combines a moving part with a fixed glazed element. The glazed element is anchored directly into the outer frame profile, creating a minimalistic look.
• A duorail integrates 2 identical glazed opening vents, resulting in an aesthetically pleasing aluminium sliding door.
• A 3 and 4 rail option integrates additional rails into the outer frame allowing extra opening vents to be installed. This type of sliding door option is ideal for very large openings.

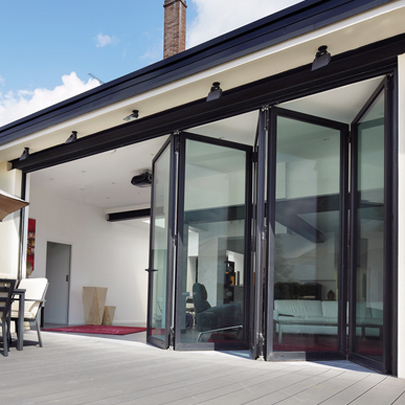

• A sliding folding door system or bi-fold door creates the ultimate open space. With the aluminium sliding folding door, the glazed elements are folded to the interior or exterior of the building.


Properties

MaterialsAluminium frames with a glass fibre reinforced polyamide thermal break, dry-glazed with EPDM or neutral silicone gaskets.
FinishesPolyester powder coating is available in any standard RAL colour. Anodized finishes as well as finishes to give the appearance of stainless steel or wood.
Sizes42 mm factory glazed double glazed units - Maximum thickness accommodated
CF 68 bifold doors for the modern design
CF 77 bifold doors for large openings
CP 130 sliding doors
CP 155 large sliding doors
Hi-Finity sliding doors, the epitome of modern design. Large slim frame aluminium doors.
ColoursAvailable in any standard RAL colour, anodized finish also available. Different colours may be used internally and externally.
Other guaranteesGuaranteed for ten years
NBS clausesL20 Doors/ shutters/ hatches, 520 SLIDING DOORS
BIMhttps://www.reynaers.co.uk/en-UK/architects/download-cad-bim-details
CADhttps://www.reynaers.co.uk/en-UK/architects/download-cad-bim-details
