Asphalt for Highways and Road Infrastructure

Aggregate Industries - Asphalt

Foamix®
Foamix® asphalt is a hybrid between Asphalt and Hydraulically Bound Material (HBM). Manufactured as a cold mix, it contains a high recycled content asphalt resulting in a low manufacturing carbon footprint. Manufactured to a high level of control and incorporates up to 92% recycled materials, reclaimed filler/additives, plus bitumen, cement and water.

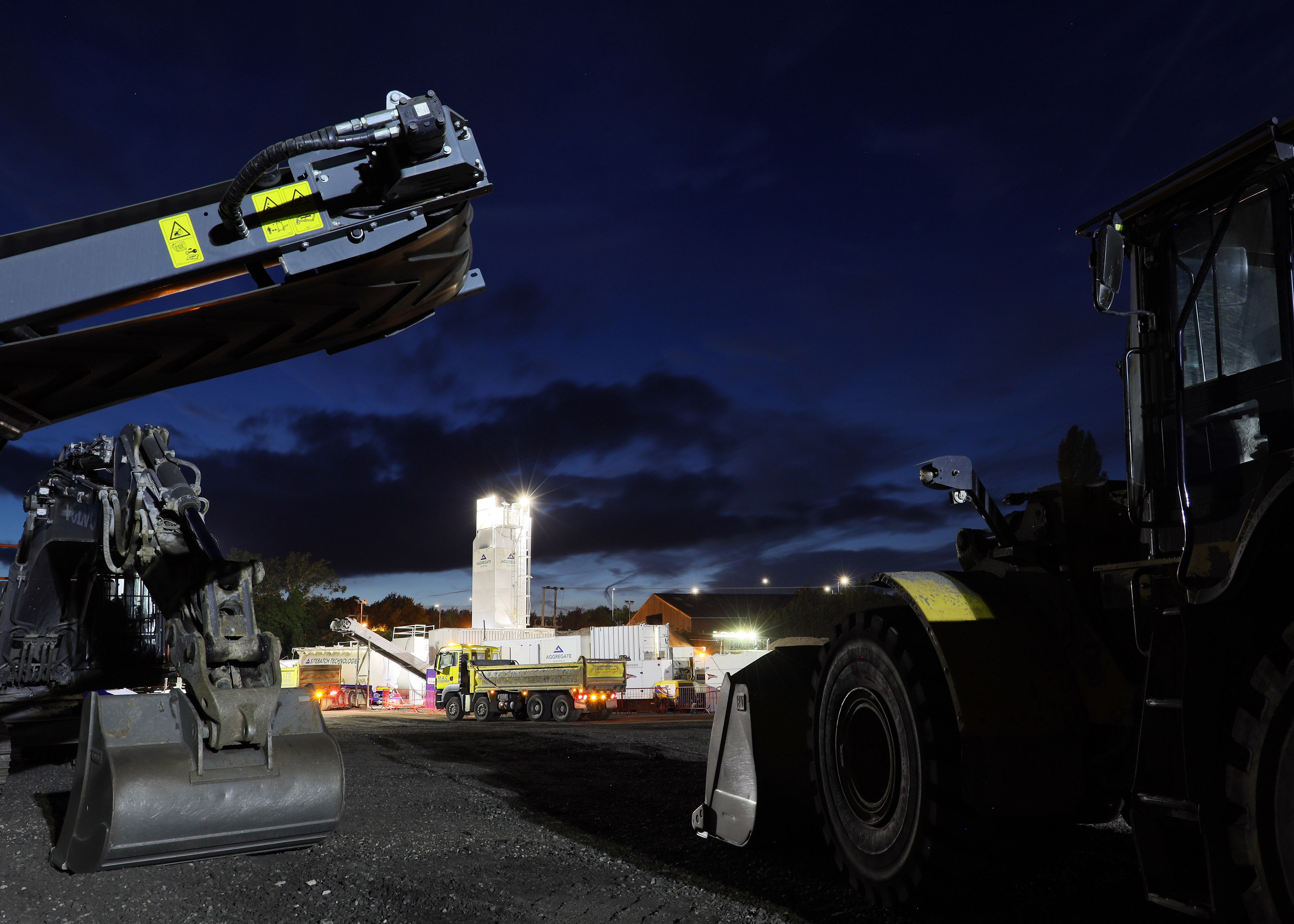

Using their fleet of Sitebatch Technologies mobile mixing plants, Foamix offers a cost-effective, sustainable solution to their customers for the construction, repair and maintenance of new or existing pavements whilst maximising the use of locally sourced recycled materials. It is laid and compacted like normal asphalt, only cold, without the need for any specialist paver or labour.

With the ability to encapsulate tar-bound RAP for safe reuse in the local road network, Foamix offers their clients a more sustainable solution that eliminates costly disposal charges associated with hazardous waste at licensed tips.

Features & Benefits
- CAN USE UP TO 95% RECYCLED OR RECLAIMED PRODUCTS IN THE MIX DESIGN
- MATERIAL IS SUPPLIED AND LAID COLD, SO SAFE TO THE TOUCH
- CAN BE STORED IN ANY CONVENIENT LOCATION FOR EVERYDAY USE OR ‘OUT-OF-HOURS’ EMERGENCIES
- IF COVERED AND STORED ON GOOD, DRY GROUND STANDARD GRADE CAN BE HELD ON STOCK FOR UP TO ONE MONTH
- A SINGLE LAYER OF FOAMIX CAN REPLACE MULTIPLE LAYERS E.G. BASE AND BINDER COURSE
- This allows for cost and time efficiency.

________________________________________________________________________________________________________

SuperFlex®
Award winning SuperFlex asphalt combines the properties of high fatigue resistance with excellent deformation resistance. It is suited for use in a wide variety of applications and particularly where cracking is a problem and is the ideal material when overlaying concrete.

Features & Benefits
- EXCELLENT CRACK RESISTING PROPERTIES THAT MEANS SUPERFLEX IS THE IDEAL MATERIAL WHEN OVERLAYING CONCRETE
Intentionally designed outside of the regime of HAPAS to allow a wider range of application and performance enhancement. In particular, where durability is placed as higher importance particularly where cracking is a problem.
- EXCELS IN BOTH DEFORMATION RESISTANCE AND FATIGUE LIFE OVER CONVENTIONAL MIXTURES
- IMPERMEABLE, KEEPING OUT THE UNWANTED ACTION OF TRAPPED WATER
- A HIGHLY DURABLE PRODUCT
- Stable at more elevated temperatures allowing earlier opening to traffic.
- AVAILABLE IN 6MM, 10MM, 14MM AND 20MM AGGREGATE SIZES
- Capable of covering a thickness of between 15mm-80mm.

________________________________________________________________________________________________________

SuperHitex®
SuperHitex is a high performance 14mm polymer modified asphalt thin surface course designed for high speed, high traffic volume roads. It is a BBA/HAPAS approved product designed to give long term performance in a durable mixture.

Features & Benefits
- NOISE REDUCTION COMPARED TO HRA SURFACE COURSE EXCEEDS 3 DB(A)
- SPRAY REDUCTION
- EXCELLENT RESISTANCE TO PERMANENT DEFORMATION
- WHOLE LIFE PERFORMANCE
- HAPAS APPROVED
- Five year warranty available.

________________________________________________________________________________________________________

SuperPath
SuperPath asphalt is a fast, single lift, durable and environmentally sustainable solution. Made to replace traditional two-course construction on urban, commercial, residential footway and cycleway projects. 10mm AC Dense with a fine aggregate CRF and sand blend - approx 75:25

Features & Benefits
- SAVES TIME
Forget two-course construction, lay a path in a single lift – saving you time on your project.
- SAVES MONEY
Faster construction also means shorter projects and less public disruption, saving you money.
- MINIMISES DISRUPTION
Increase your installation productivity for speedier opening times and less public disruption.
- MUCH STRONGER
Remove the interface between the surface and binder course – eliminating inherent weakness from bonds and water migration.
- MUCH STRONGER
Experience superior heat retention with a thicker single-course layer – meaning greater, easier compaction.
- REDUCES CARBON
Reduce your carbon footprint and environmental impact – designed to utilise up to 10% RAP.
- ECO FRIENDLY
Create sustainable projects – all mixes can be supplied as SuperLow warm mix asphalt.

________________________________________________________________________________________________________

SuperLayer®
A faster, safer, more durable and environmentally sustainable solution to urban, commercial and residential road construction projects. Specially designed to suit new build or maintenance asphalt pavement projects. AC 20mm nominal size PMB surface/binder course

Features & Benefits
- RETAINS HEAT
Experience easier compaction, formation and more durable joints with a material less likely to fail in the cold.
- SAVES TIME
Increase productivity with a single application material for quicker carriage opening.
- SAVES MONEY
Make construction faster, meaning shorter projects and less public disruption, saving you money.
- MUCH STRONGER
Use a material designed to offer excellent load bearing capability while maintaining its surface texture.
- IMPROVED PERFORMANCE
Remove the interface between surface and binder courses – with all its inherent weakness from bonds and water migration.

________________________________________________________________________________________________________

SuperThin™
A Highway Authorities Product Approval Scheme (HAPAS) approved asphalt, thin surface course material available in 6mm and 10mm. Designed to fulfil the requirements and deliver the performance of a modern thin surfacing used in high and low speed heavily trafficked roads.

Features & Benefits
- HIGH LEVELS OF RUT RESISTANCE
- NOISE REDUCTION PROPERTIES
- SPRAY REDUCTION
- THIN CONSTRUCTION TO MAXIMISE THE CONSERVATION OF NATURAL RESOURCES

________________________________________________________________________________________________________

SuperSafepave™
A BBA / HAPAS approved thin surfacing asphalt material incorporating polymer modified technology. The product is installed by pavers that incorporate an integral spray bar for applying a polymer modified bond-coat immediately before the asphalt layer.

Features & Benefits
- BBA / HAPAS APPROVED
- ESUBSTRATE CRACKS SEALED BY EFFECTIVE BOND COAT APPLICATION
- ENHANCED SPRAY REDUCTION CHARACTERISTICS
- SPEED OF APPLICATION THREE TIMES QUICKER THAN OTHER THIN SURFACINGS
- CAN OVERLAY THE EXISTING SURFACE AND REGULATE RUTTED OR DETERIORATED SURFACES
- EXCELLENT FRICTION QUALITIES
- UNTRAFFICKED BOND-COAT
- REDUCED TRAFFIC NOISE

________________________________________________________________________________________________________

SuperBase™
SuperBase is a specifically engineered asphaltic concrete 14mm dense binder course mixture, which has been designed to fill the gap within the range of binder course materials, described in UK asphalt standards.

Features & Benefits
- SUITABLE FOR USE IN EITHER LOW OR HIGH DENSITY TRAFFIC SITUATIONS
- EQUIVALENT STIFFNESS MODULUS TO A CONVENTIONAL HDM 50 OR HMB 35 FOR SUPERBASE GRADES 50 OR 35 RESPECTIVELY
- DEVELOPED TO PROVIDE THE FUNCTION OF A DURABLE AND IMPERMEABLE SUPPORTING LAYER BELOW MODERN THIN SURFACINGS
- RELATIVELY RICH BINDER CONTENTS AND LOW INSITU VOID CONTENTS; DESIGNED TO BE 6% OR LESS RENDERING THEM IMPERMEABLE
- UNIFORM FINISH WITH LOW RISK OF SEGREGATION
- CAN BE LAID AT 40MM THICK
- Can be laid up to 70mm as a single layer application depending on the project.

________________________________________________________________________________________________________

SuperSAMI
SuperSAMI is a stress absorbing membrane interlayer – SAMI, used to overlay jointed concrete carriageways – or on CBGM flexible composite pavements before installing binder and surface course. Typically laid 25-30mm thick, it’s a fine graded 6mm asphalt containing a high proportion of polymer modified binder (up to 10) reducing delays and reflection cracking.

Features & Benefits
- INCREASED DURABILITY
Highly durable, from a high performance 6mm polymer modified enriched asphalt.
- REDUCES REFLECTION CRACKING
Interlayer treatment for jointed concrete carriageways.
- STRESS ABSORBING
Asphalt membrane interlayer that can be used either with or without geotextile membranes.
- LOW MAINTENANCE
Extends the life of concrete carriageways.
- EASY TO LAY
No special equipment required.

________________________________________________________________________________________________________

S.M.A.Tex® 942
S.M.A.Tex is a thin surface course material available in 14mm and 10mm nominal size, designed for use in heavily trafficked, high speed urban highways. Provided as a surface course system and installed only by their contracting business to ensure compliance with Specification for Highway Works Clause 942.

Features & Benefits
- GUARANTEED END PERFORMANCE REQUIREMENTS FOR A PERIOD OF FIVE YEARS, AS IN ACCORDANCE WITH CL942.3 OF SPECIFICATION FOR HIGHWAY WORKS, VOLUME 1
- LONG TERM DURABILITY AND RUT RESISTANCE
- ECONOMIC ALTERNATIVE TO TRADITIONAL MATERIALS
- IMPROVED RESISTANCE TO SCUFFING
- NOISE AND SPRAY REDUCTION

________________________________________________________________________________________________________

S.M.A.Tex®
The S.M.A.Tex asphalt surface course is based on the application and experience of European based stone mastic asphalt technology, paying particular attention to areas where high levels of retained textures is not considered important.

They also offer S.M.A.Tex Industrial, designed to provide a most durable asphalt surfacing for industrial type applications. This product has a lower texture depth than other highway products to specifically improve resistance to scuffing from items such as stacking cradles and container forklifts.

Features & Benefits
- LONG TERM DURABILITY AND RUT RESISTANCE
- ECONOMIC ALTERNATIVE TO TRADITIONAL MATERIALS
- IMPROVED RESISTANCE TO SCUFFING
- NOISE AND SPRAY REDUCTION

________________________________________________________________________________________________________

SuperCurve®

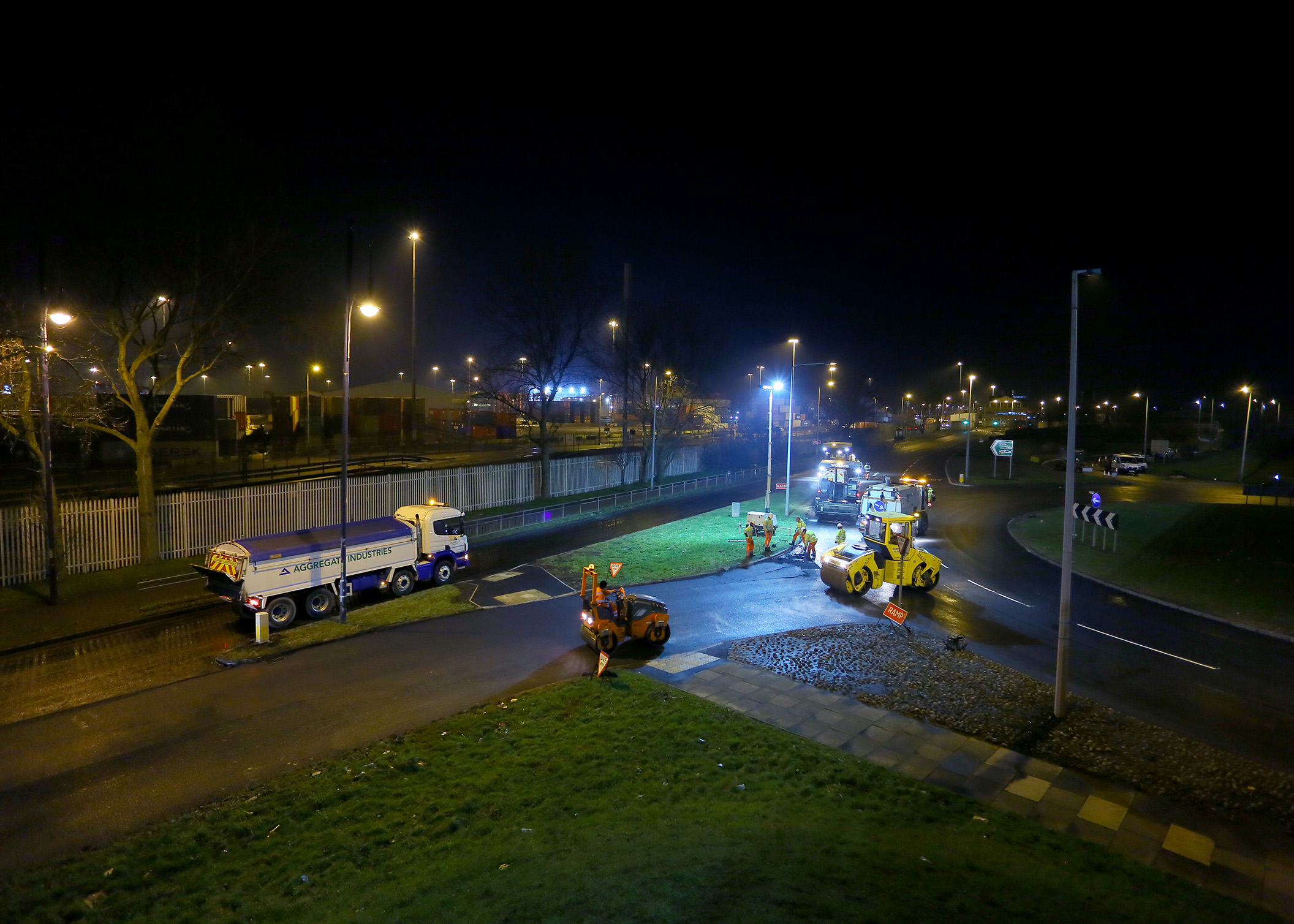

Specifically designed to enhance performance on heavily trafficked and stressed roads – in particular at roundabouts and junctions. A high performance 10mm polymer modified asphalt surface course with clause 942 accreditation.

Features & Benefits
- IMPROVED DURABILITY
Add durability to high-stress areas with the high performance 10mm polymer modified asphalt surface course.
- CRACK AND SKID RESISTANT
Experience good low temperature cracking resistance and excellent skid resistance.
- REDUCED DEFORMATION
Use a material with properties that provide good resistance to deformation – even at high temperatures.
- SAVES MONEY
Use as an alternative to a HRA and Chip, saving on the cost of a chipping gang.
- LONG WARRANTY
Get a five year warranty – now approved to SHW Clause 942.
- ECO FRIENDLY
Create sustainable projects – all mixes can be supplied as SuperLow warm mix asphalt. Can be sold with or without 942 approval.

________________________________________________________________________________________________________

SuperTrench®

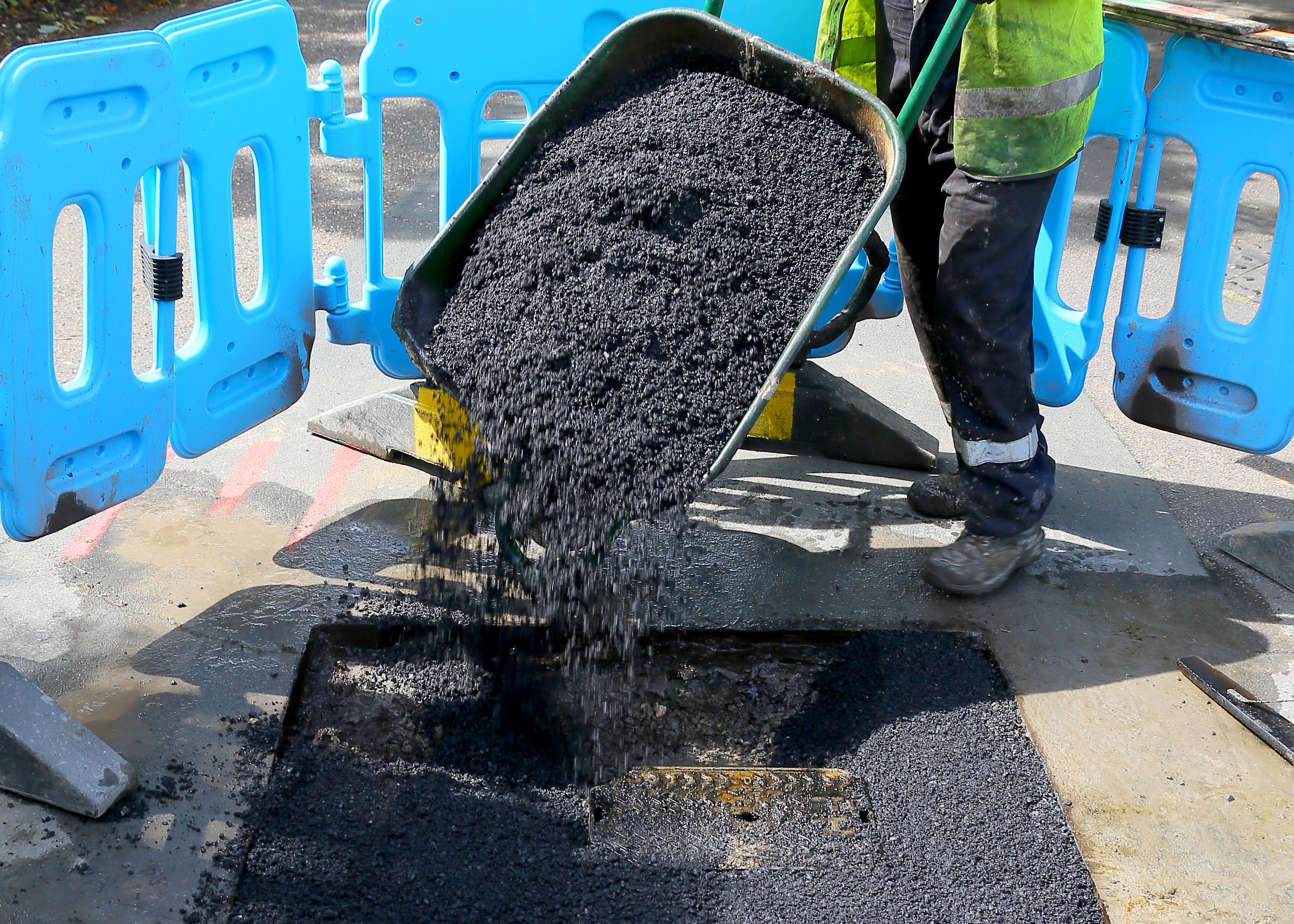

A permanent hot mix asphalt surface course mixture that is ideal for use in the reinstatement of flexible footways, footpaths and cycle tracks.

Features & Benefits
- COMPLIANT WITH BS EN13108-1 FOR ASPHALT CONCRETE PRODUCTS
A range of permanent, HAUC approved hot mix surface mixtures for use in the reinstatement of flexible footways, footpaths and cycle tracks. Material is CE marked.
- HIGH LEVELS OF IN-SERVICE PERFORMANCE AS REQUESTED BY OVERSEEING AUTHORITY
Mix recipes are optimised to produce a binder rich material that aids and improves workability. Often predominately used by utility companies and Local Authorities.
- REDUCED INSITU AIR VOID ISSUES
Specially designed for hand lay use in trench reinstatements to improve likely attainment of air void compliance with the SROH.
- MEETS REQUIREMENTS OF SPECIFICATION FOR THE REINSTATEMENT OF OPENINGS IN HIGHWAYS (SROH)
- REDUCED PERMEABILITY, EXTENDED DURABILITY
Improved durability from higher binder contents in conjunction with SuperTrench laying guidelines.

________________________________________________________________________________________________________

SuperLow-Carbon
The development of the SuperLow range, which supports their shared journey to reduce carbon in the industry, never stands still.

With the help of Shell Bitumen, Aggregate Industries has developed SuperLow-Carbon; the innovative next step on the carbon reduction journey.

The evolution began by reducing the embodied carbon footprint of their asphalts: improving production processes, using alternative energy sources, and mixing at reduced temperatures. In SuperLow-Carbon, they have gone even further, including a biogenic material within the bitumen that effectively locks carbon within the asphalt rather than releasing it back into the atmosphere.

The use of these biogenic components in SuperLow-Carbon means that CO2 remains within the asphalt even when it is recycled, creating a carbon sink.



________________________________________________________________________________________________________
