Panelcraft Access Panels

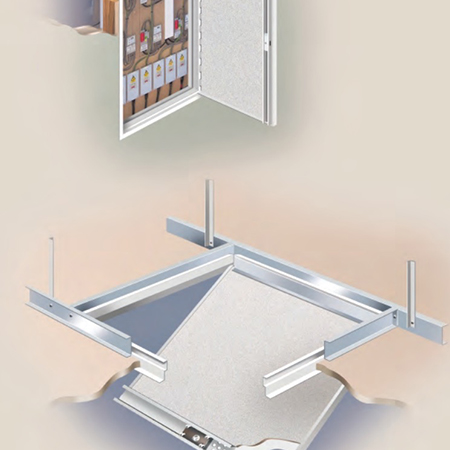

Panelcraft Access Panels ‘Tradpan Range’ provides an effective solution to gain access to building engineering services concealed in drylined ceiling or wall structures which serve fire protection or separation purposes.

Range consists of:
Firepan PF60
Firepan PF120
Firepan SBF60
Firepan SBF120

Key features:
• Fire rated
• Provides 30min, 60min or 120 min Fire Protection for walls
• Provides 60min or 120min Fire Protection for ceilings
• Provides 60min or 120min Fire Integrity from both sides for walls only
• Versatile panel suitable for wall and ceilings avoiding confusion when ordering or fitting on-site
• 50mm overall depth
• Precision manufactured in Zintec
• Fully concealed full length heavy duty piano hinge
• Visible picture frame (PF) or simulated beaded frame (SBF) for taping and jointing to conceal the frame
• Supplied powder coated RAL 9010 20% gloss as standard
• Budget lock as standard
• Keylock or security lock options available depending on specification
• No on-site manufacturing costs
• Easily installed in minutes straight from the box
• Suitable for on-site decoration to match the surrounding areas
• Door easily removed

View the product on their website here.


Be the first to endorse this product.

Add to Project Board

Create a new project board:

Tech Data

Panelcraft Access Panels

Panelcraft Access Panels

Panelcraft Access Panels pioneered the concept of manufacturing functional access panels (sometimes known as access hatches) that are aesthetic in design by blending into the surrounding surface.

Working closely with architects, designers...
View company profile
T(01827) 720830
F(01827) 720860
E[email protected]
WVisit Panelcraft Access Panels's website
 Unit H, The Pavilions, Abeles Way, Holly Lane Ind Est, Atherstone, Warwickshire, CV9 2QZ
