Hauraton surface drainage channels at T2 Trafford Point

Hauraton surface drainage channels at T2 Trafford Point

Hauraton RECYFIX® MONOTEC 200/450 channels were chosen for the T2 Trafford Point, a newly developed distribution facility on the edge of Trafford Park, Manchester.

Surface drainage required at T2 Trafford Point office car park access road and service yard required the specification of high capacity and very robust channel systems capable of withstanding the daily passage of cars as well as the massive twisting forces exerted by the tyres of manoeuvring HGVs.

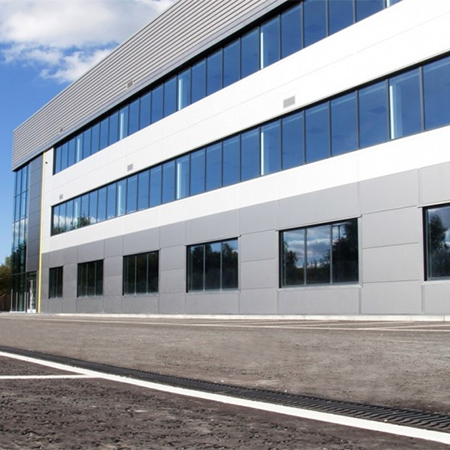

Hauraton RECYFIX® MONOTEC 200/450 channels were installed in the asphalt car park. With a nominal grating width of 200mm (Channel internal dimension) and an overall height of 450mm a channel provides a cross-section of 746.1cm2, so the 134 metres of channel installed in the car park has a total water capacity of just over 9996 litres and a loading category of up to Class D400. The MONOTEC one metre long channel component is of a sturdy monolithic design where the HEELSAFE grating and the tongue and groove linking system are integral to the tough, virtually unbreakable polypropylene (PP) moulding.

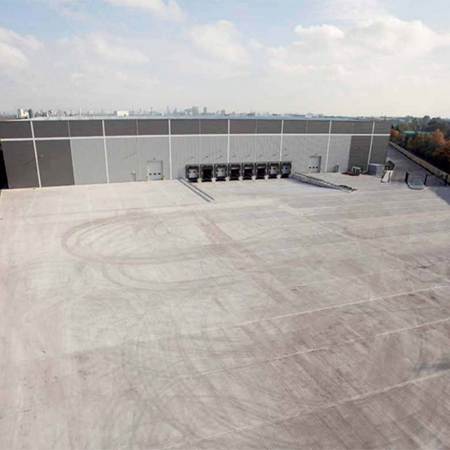

In addition to the car park drainage, two sizes of RECYFIX® HICAP® channels were also installed in the concreted service yard; 78 metres of HICAP 150 and 120 metres of HICAP 300. Both PP moulded channel sizes were supplied with factory fitted 28mm wide slotted ductile iron gratings for Class F900 loading category. The 198 metres of channel installed in the service yard has a total water capacity of just over 24156 litres.

With a maximum channel weight of 23,4kg per unit, both the RECYFIX® MONOTEC and HICAP channels were well within the weight limitation for manual lifting so made the contractors job on site just that little bit easier. For a given area to be drained, these ranges of high capacity channels also mean fewer channel runs, less excavation work, reduced foundation concrete needed and substantially less after care.

All Hauraton surface water drainage systems’ comply with European Standards (hENs) and carries the CE mark.
