Newton System 500 used to waterproof new build property

Newton System 500 used to waterproof new build property

Newton Specialist Basement Contractor CCL were commissioned by Redbridge Building Contractors to design, supply and install a comprehensive structural waterproofing system to their luxury new build property in St Georges Hill in Surrey.

CCL installed the Newton System 500 internal Type C Cavity Drain Membrane system to the Type B reinforced concrete box structure to provide a combined waterproofing solution as recommended for habitable accommodation in accordance with BS8102:2009. The internal drained cavity system offers the ultimate contingency plan to capture any water ingress that may occur through the joints in the concrete structure.

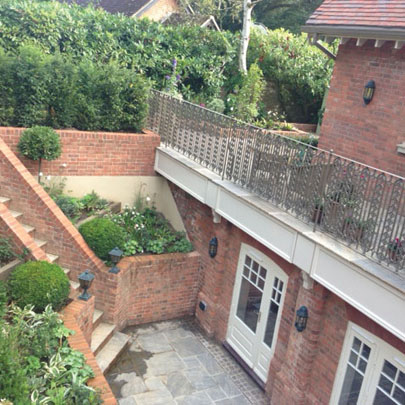

CCL installed the Newton Titan-Pro sump system, complete with full battery backup protection. To offer a complete waterproofing approach CCL designed and installed Newton Acriflex to all the interlinked balconies and terraces throughout the development.

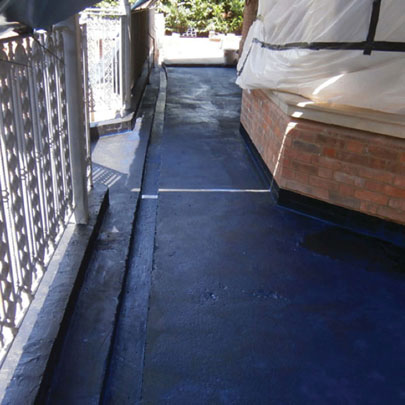

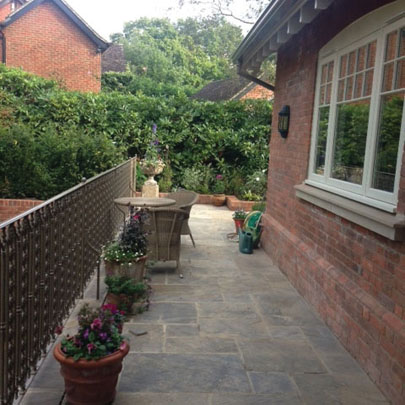

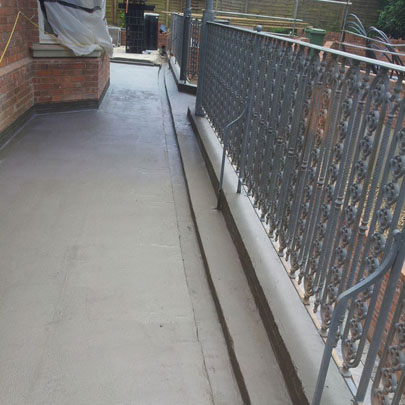

Once prepared, Newton NuSeal-LM was roller applied in two coats to act as a primer and vapour barrier. The Acriflex was applied and Newton 207 DeckDrain double cuspated drainage membrane was applied over the Acriflex to protect the waterproofing layer and move any water to designated drainage outlets designed within the podium deck structures. To complete the terrace areas stone paviours were laid on a 50mm sand blinding layer.

“Overall CCL were extremely pleased with how all the elements of the water management system through to the waterproofing went especially the podium waterproofing on such a high profile project that had some extremely intricate detailing and highly specified finishes. We are currently specifying Newton Acriflex Winter as one of our preferred premium podium/terrace waterproof membranes” Jamie Tschumi - Director CCL
