Vessels
Altecnic Ltd – Caleffi Group
FLOW THROUGH POTABLE WATER EXPANSION VESSEL
Reflex Flow Through vessels from Altecnic prevent build-up of potentially harmful bacteria in potable water expansion vessels by reducing stagnation within the vessel. The innovative design encourages flushing through the expansion vessel, greatly reducing the opportunity for potentially harmful cysts to form.
More information: https://www.altecnic.co.uk/flow-through-potable-water-expansion-vessel-60-1000-litres

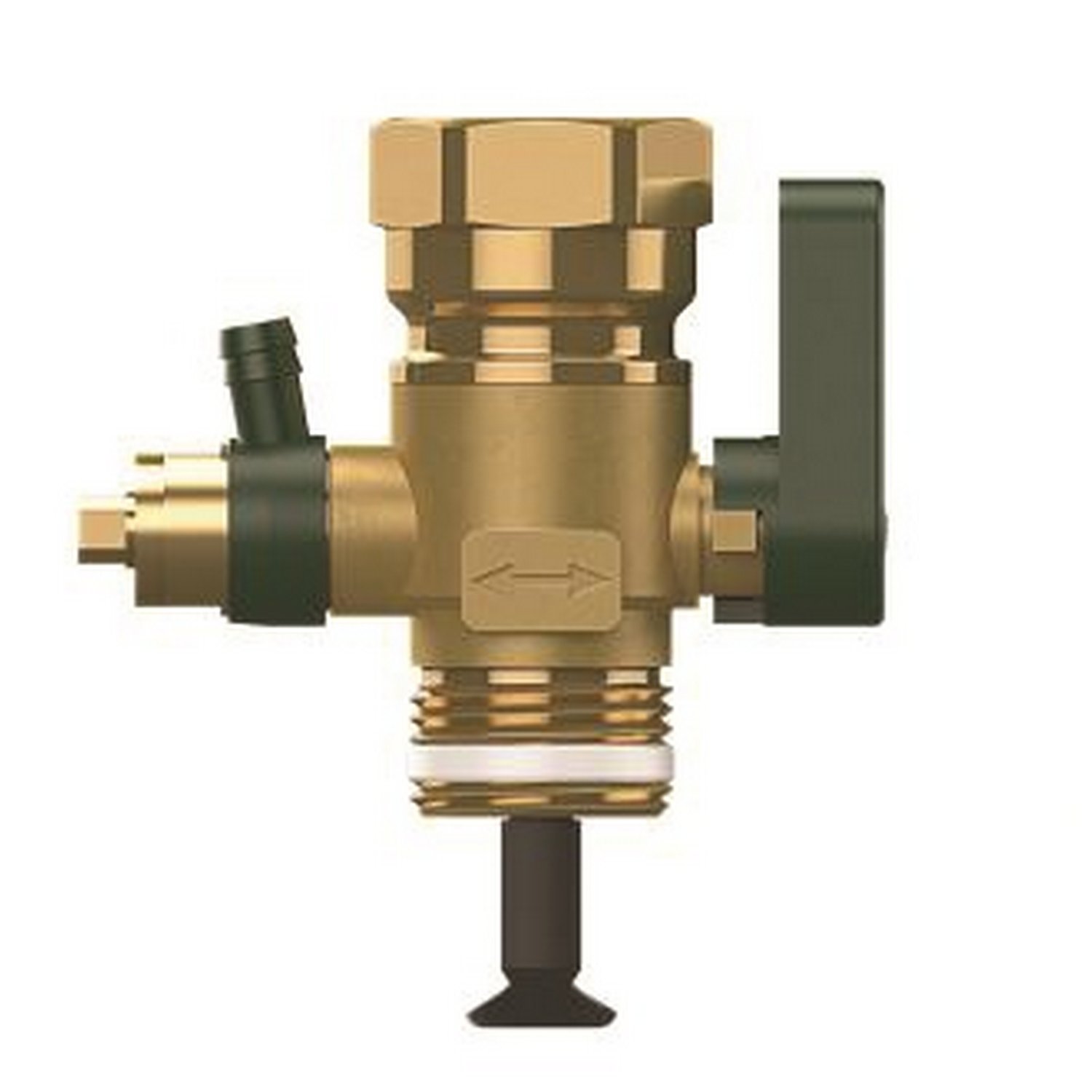

FLOWJET VALVE FOR POTABLE WATER SYSTEMS
In an unvented domestic hot water system the expansion vessel is installed in the cold water supply pipe close to the hot water cylinder or calorifier. Expansion vessels are designed to absorb the increase in volume of water created by thermal expansion as the temperature rises. A domestic hot water system is a ‘closed system’ when it is isolated from the public water supply by a uni-directional valve such as a check valve, backflow preventer or pressure reducing valve. To absorb the increase in volume of water within the storage cylinder provision must be made for the expansion by fitting a suitably sized expansion vessel.
More information: https://www.altecnic.co.uk/flowjet-valve-potable-water-systems
ROBOKIT EXTRA SEALED SYSTEM - NITROGEN FILLED
Sealed Systems are the most commonly used form of central heating used in Europe, and most of the other parts of the world. Ease of installation makes it particularly attractive to the installer, alleviating the need to fit, feed and vent tanks in a central heating system. A closed or sealed heating system must include an expansion vessel and other ancillary components ( sealed system kit) to accommodate expansion of the water.
More information: https://www.altecnic.co.uk/robokit-extra-sealed-system-nitrogen-filled
ROBOKIT COMPACT SEALED SYSTEM
Sealed system kit comprising: expansion vessel up to 18 litre capacity, filling loop, safety relief valve, pressure gauge, integral mounting bracket and assembly connector allowing left or right installation on the system.
More information: https://www.altecnic.co.uk/robokit-compact-sealed-system-kit
HEATING EXPANSION VESSEL 8-25 LITRES (Available in different size)
Altecnic offer a complete range of expansion vessels to meet the requirements of most heating or cooling systems. Expansion vessels for heating systems are manufactured to meet the requirements of PED 97/23/EC Directive and BS EN 13831:2007 ‘Closed expansion vessels with built in diaphragm for installation in water’.
Available in different sizes
More information: https://www.altecnic.co.uk/heating-expansion-vessel-8-25-litres
https://www.altecnic.co.uk/heating-expansion-vessel-35-140-litres
https://www.altecnic.co.uk/vertical-potable-water-expansion-vessel-50-500-litres
