Aluminium & Steel Fixings

RJ Facade Systems

Ejot high quality stainless steel self drilling screws, with total quality support - fasteners that are first choice for specifiers and installers.

JT3-3 Stainless Steel 304 (A2) Tek Screws
EJOT JT3-3 fasteners are manufactured from 304 (A2) grade austenitic stainless steel with a hardened carbon steel drill point welded to the stainless steel shank.

• The hardened drill point enables the screw to drill carbon steel sections and by having the lead threads formed on this hardened point this allows for correct tapping at high drilling speed.

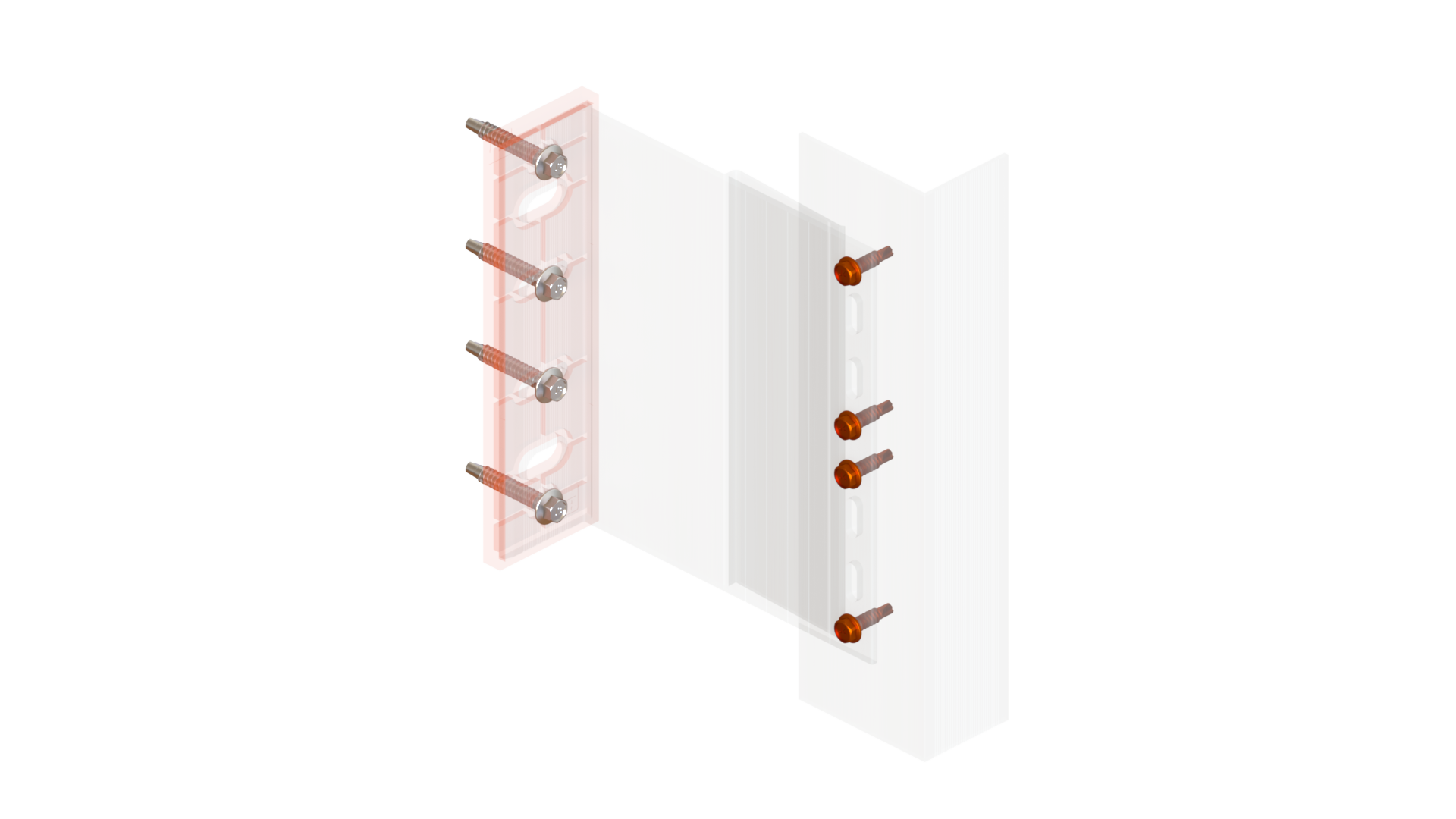

• For use when fixing to 1.2-3.0mm steel, generally used when fixing EVT brackets, tophats and C-channels to SFS.

JT3-12 Stainless Steel 304 (A2) Tek Screws
EJOT JT3-12 fasteners are manufactured from 304 (A2) grade austenitic stainless steel with a hardened carbon steel drill point welded to the stainless steel shank.

•The hardened drill point enables the screw to drill carbon steel sections and by having the lead threads formed on this hardened point this allows for correct tapping at high drilling speed.
•Where fixing brackets to hot rolled steel sections we recommend they are used with the S16, S19 or A15 vulcanised sealing washer ensuring a safe seal every time.
•For use when fixing to 4.0-12.0mm steel, generally used when fixing EVT brackets, tophats and C-channels to hot rolled steel sections.

JT4-4 Stainless Steel 304 (A2) Tek Screws
EJOT JT4-4 fasteners are manufactured from 304 (A2) grade austenitic stainless steel suitable for use when drilling and tapping into ALUMINIUM sections.

• The drill point and thread forms are designed to provide maximum mechanical performance with ease of installation into aluminium or timber substrates.
• Where specified they are assembled with a S14 stainless steel / EPDM vulcanised sealing washer ensuring a safe seal every time.
• For use when fixing to 1.5-4.0mm aluminium, generally used when fixing rails and profiles to EVT helping hand brackets.

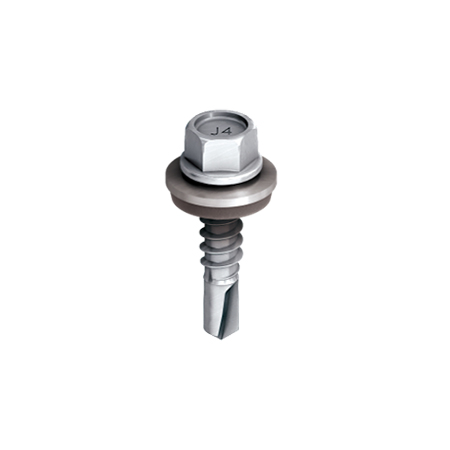

JT4-6 Stainless Steel 304 (A2) Tek Screws
EJOT JT4-6 fasteners are manufactured from 304 (A2) grade austenitic stainless steel suitable for use when drilling and tapping into ALUMINIUM sections.

• The drill point and thread forms are designed to provide maximum mechanical performance with ease of installation into aluminium or timber substrates.
• Where specified they are assembled with a A15 Aluminium / EPDM vulcanised sealing washer ensuring a safe seal every time.
• For use when fixing to 2.0-6.0mm aluminium, generally used when fixing EVT brackets to aluminium Tophats and C-Channels.

JT3-FR Stainless Steel 304 (A2) Tek Screws
EJOT JT3-FR fasteners are manufactured from 304 (A2) grade austenitic stainless steel with a hardened carbon steel drill point welded to the stainless steel shank.

• The FR range of fasteners are manufactured with low profile dome head which is a rounded top with a flat underside, they sit above work surfaces and tend to be used when requiring a more decorative finish.
• FR fixings can be powder coated to colour match main façade for less visibility of the fixing head.
• Dome headed decorative fixing for use when fixing to 1.2-12.0mm steel, generally used when fixing façade panels and copings.

JT4-FR Stainless Steel 304 (A2) Tek Screws
EJOT JT4-FR fasteners are manufactured from 304 (A2) grade austenitic stainless steel suitable for use when drilling and tapping into ALUMINIUM sections.

• The FR range of fasteners are manufactured with low profile dome head which is a rounded top with a flat underside, they sit above work surfaces and tend to be used when requiring a more decorative finish.
• FR fixings can be powder coated to colour match main façade for less visibility of the fixing head.
• Dome headed decorative fixing for use when fixing to 1.5-4.0mm aluminium, generally used when fixing façade panels and copings.

JT6 Stainless Steel 316 (A4) Tek Screws
EJOT JT6 range of fasteners are manufactured from 316 (A4) grade austenitic stainless steel with a hardened carbon steel drill point welded to the stainless steel shank.

• The 316 (A4) stainless fixing is typically used where the specification requires a higher corrosive resistance due to the local environment or nature of the building, this includes coastal/marine environments as well as food and chemical production facilities.
• The hardened drill point enables the screw to drill carbon steel sections and by having the lead threads formed on this hardened point this allows for correct tapping at high drilling speed.
• Coastal/marine grade fixing for use when fixing to 1.2-12.0mm steel, generally used when fixing EVT brackets, tophats and C-channels to steel sections.

JT9 Stainless Steel 316 (A4) Tek Screws
EJOT JT9 range of fasteners are manufactured from 316 (A4) grade austenitic stainless steel suitable for use when drilling and tapping into ALUMINIUM sections.

• The 316 (A4) stainless fixing is typically used where the specification requires a higher corrosive resistance due to the local environment or nature of the building, this includes coastal/marine environments as well as food and chemical production facilities.
• Coastal/ marine grade fixing for use when fixing to 1.5-6.0mm aluminium, generally used when fixing rails and profiles to EVT helping hand brackets.

JT6-FR Stainless Steel 316 (A4) Tek Screws
EJOT JT6-FR fasteners are manufactured from 316 (A4) grade austenitic stainless steel with a hardened carbon steel drill point welded to the stainless steel shank.

• The 316 (A4) stainless fixing is typically used where the specification requires a higher corrosive resistance due to the local environment or nature of the building, this includes • coastal/marine environments as well as food and chemical production facilities.
• The FR range of fasteners are manufactured with low profile dome head which is a rounded top with a flat underside, they sit above work surfaces and tend to be used when requiring a more decorative finish
• Dome headed decorative fixing with coastal/marine grade finish for use when fixing to 1.2-12.0mm steel, generally used when fixing façade panels and copings.

JT9-FR Stainless Steel 316 (A4) Tek Screws
EJOT JT9-FR fasteners are manufactured from 316 (A4) grade austenitic stainless steel suitable for use when drilling and tapping into ALUMINIUM sections.

• The 316 (A4) stainless fixing is typically used where the specification requires a higher corrosive resistance due to the local environment or nature of the building, this includes coastal/marine environments as well as food and chemical production facilities.
• The FR range of fasteners are manufactured with low profile dome head which is a rounded top with a flat underside, they sit above work surfaces and tend to be used when requiring a more decorative finish.
• Dome headed decorative fixing with coastal/marine grade finish for use when fixing to 1.5-4.0mm aluminium, generally used when fixing facade panels and copings.
