The successful installation of this 6m x 20m Barco digital LCD screen, recessed into the West elevation of the Arndale Centre, Manchester, was a highly complex project that was facilitated by Newton Specialist Basement Contractor Trace Basements. The project was named ‘Project of the Year’ at the Property Care Association Awards 2015.

Methodology

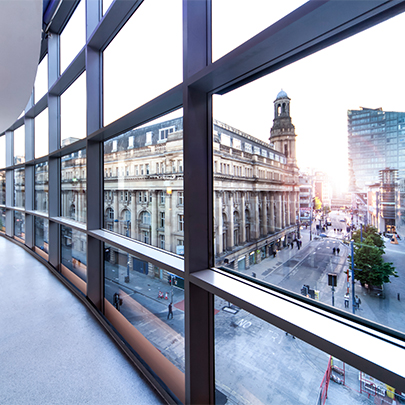

Working in association with Structural Engineers and facade specialistsEckersley O’Callaghan, designers of the iconic New York 5th Avenue Apple Store, the project involved the removal of thirty-six glazing panels, thus compromising the thermal and weather line of the building.

Working to the Engineers details, Trace Basements developed and constructed:

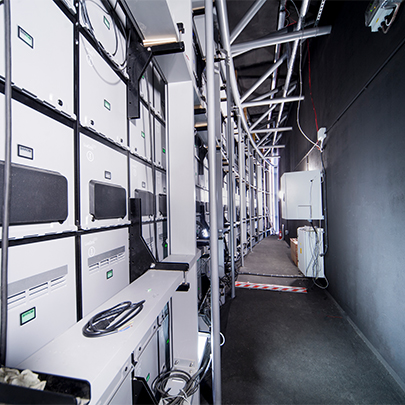

A new internal timber floor, wall and deck structure to encapsulate the area behind and above the screen;

This then received insulation with associated vapour barriers, fire compartmentalisation details, and;

Continuous waterproofing, enveloping and protecting what is now an external area behind the screen.

Result

The requirements upon the waterproofing materials were exacting, including the satisfaction of criteria for the surface spread of flame. All were met by the Newton Waterproofing products employed, with liquid waterproofing membrane Newton Acriflex Winter, and protective waterproof coatingNewton Floorgum Paint both expertly installed by Trace Basements.
