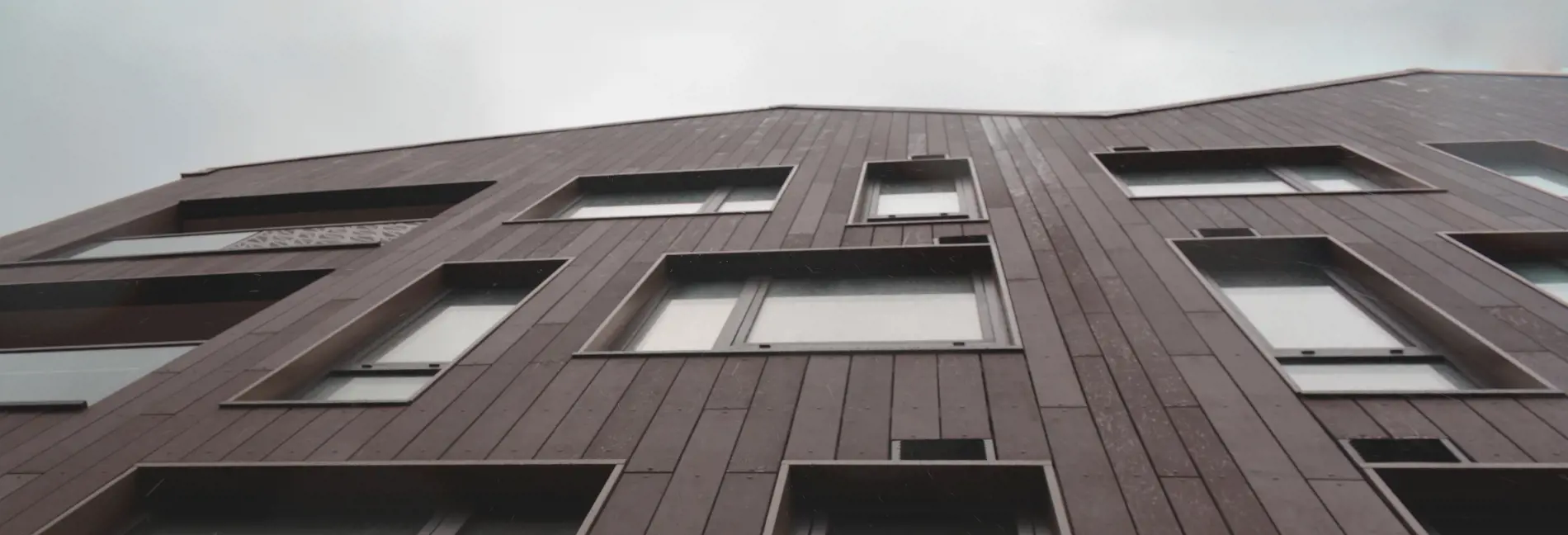

Caledonian Road was a residential development project covering 5 floors. The façade surface covers 6,000 m2 using Cedral ‘click’ by Eternit. The subframe used was RJ Facades horizontal brackets and ‘T’ rails. The building substructure used a concrete frame with SFS infill. The subframe fixed to 102m SFS using Ejot JT3 Tek screws.
Object data:
Residential development
Height of building:
5 floors
Details / Specials
- Facade surface 6,000m2
- Cedral ‘click‘ by Eternit
- RJ Facades horizontal brackets and ‘T‘ rails
- Building substructure concrete frame with SFS infill. Subframe fixed to 102m SFS using Ejot JT3 Tek screws
