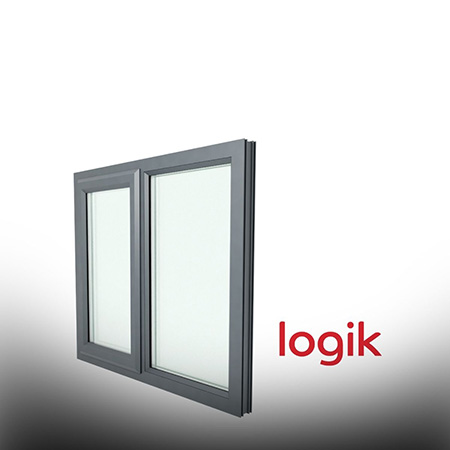

Logik 70mm PVC-U Casement Windows
Eurocell
Logik is a versatile 70mm PVC-U casement window system designed for new-build, refurbishment and commercial projects.
Available with chamfered or sculptured ovolo profiles, the system combines slim sightlines and flexible opening configurations with modern thermal, weather and security performance. Its extensive choice of configurations, colours and finishes makes it suitable for both contemporary and traditional architectural styles.
Logik Casement Windows are available as side-hung, top-hung and fixed-light units, including combinations of different window panels.
Features and benefits
• 70mm multi-chambered PVC-U profile system
• Side-hung, top-hung and fixed-light configurations
• Flexible combinations of opening and fixed window panels
• Chamfered or sculptured ovolo profile options
• Slim sightlines for increased glazed areas and natural light
• Accommodates 28mm and 36mm double- or triple-glazed units
• Best whole-window U-value of 0.92 W/m²K, depending on glazing and configuration
• Window Energy Rating up to A++, depending on glazing and configuration
• Co-extruded gasket system for enhanced weather resistance and acoustic insulation
• • PAS 24 and Secured by Design compliant complete-window configurations are available; performance depends on the specified profile, reinforcement, hardware, glazing and manufacturing specification
• Third-party certification under Kitemarks KM 52187 and KM 32821
• Reinforcement options include recycled thermal inserts, steel and aluminium
• Finished windows contain up to 40% recycled PVC-U
• Manufactured in the UK by approved Eurocell fabricators
• Recyclable through Eurocell’s closed-loop recycling system
• Ten-year guarantee against warping, discolouration and cracking
• Available in an extensive choice of colours and finishes
Applications
Suitable for:
• New-build housing
• Residential refurbishment
• Replacement-window projects
• Commercial developments
• Public-sector buildings
• Contemporary and traditional architectural styles
Sizes and configuration
• Side-hung sashes: 400–750mm wide × 320–1500mm high
• Top-hung sashes: 320–1200mm wide × 320–1350mm high
• Fixed lights: up to 3000mm wide × 2400mm high
• Dimensions exclude cills
• Other styles and combinations are available subject to Eurocell Technical approval
• Hardware, reinforcement and inserts must be selected according to the size, sash weight and configuration
The maximum fixed-light dimensions are system size limits and should not be presented as the tested weather-performance specimen size.
Materials, colours and finishes
• Material: PVC-U
• Profiles: chamfered or sculptured ovolo
• Finishes: smooth extruded, foiled and woodgrain
• Colour options include white, cream, anthracite grey, slate grey, black ash, Chartwell green, golden oak, Irish oak, rosewood and white ash
• Internal colour can match the external finish or be specified separately, subject to the selected option
Classification
• Uniclass: Pr_30_59_98_92 – Unplasticized polyvinyl chloride (PVC-U) window units
• CAWS: L10/3 and L10/350 – PVC-U windows
